CYLINDER KIT STD 92.00mm 2012-2019 HONDA TRX500 12100-HR0-F00

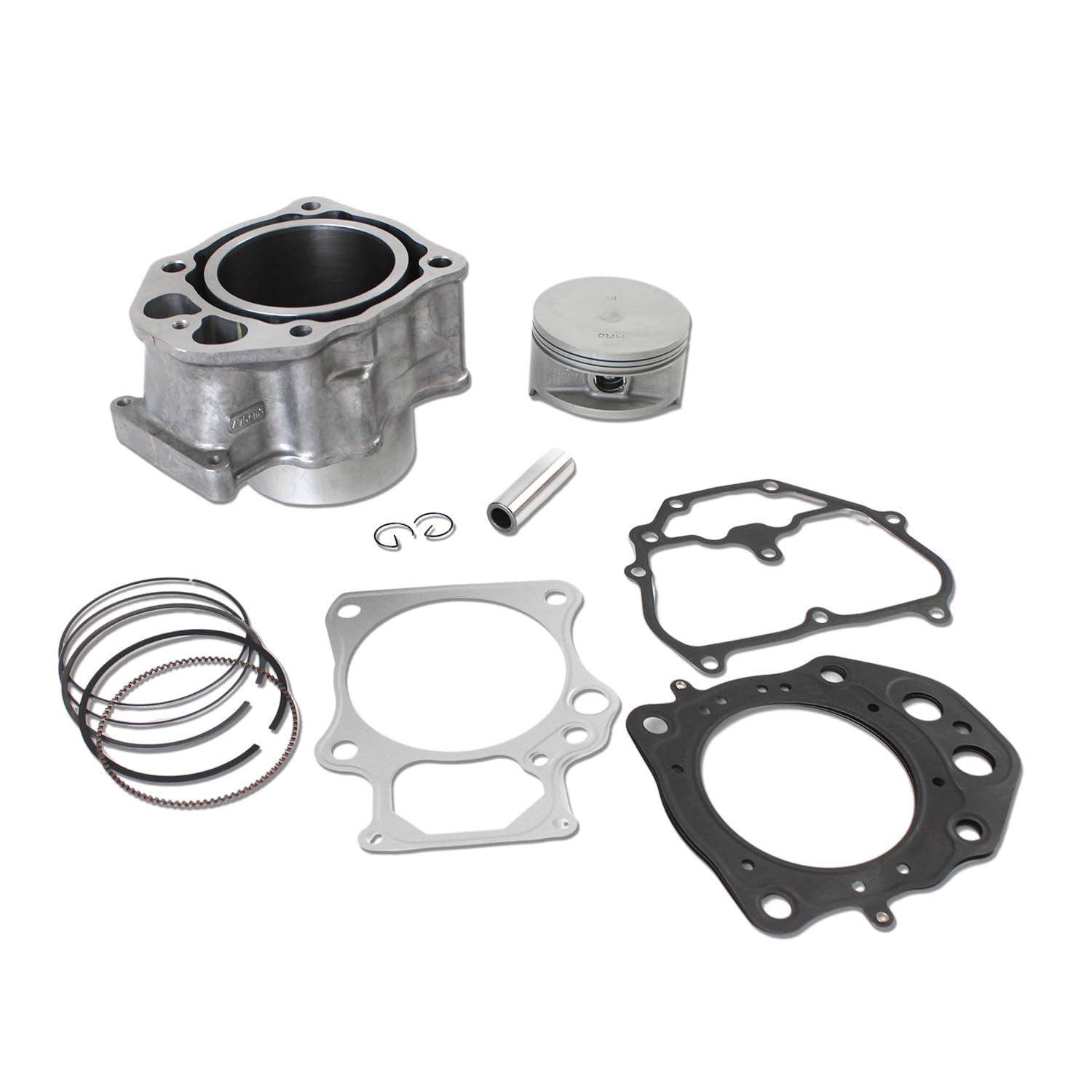

This Cylinder, Piston, and Gasket Top End Kit is designed for Honda engines with a standard 92.00mm bore. It includes a complete set of components required for a top-end rebuild, featuring a cylinder, piston with a 9.9:1 compression ratio, and all necessary gaskets. The kit is manufactured to meet OEM specifications for fit, durability, and performance, ensuring proper sealing and compatibility with factory components.

Features

• Manufactured to meet or exceed OEM quality standards
• Direct replacement for original equipment components
• Cylinder with standard 92.00mm bore
• Piston with 9.9:1 compression ratio
• Includes high-quality gaskets for reliable sealing
• Designed for straightforward installation

Specifications

• Bore Size: 92.00mm (Standard)
• Compression Ratio: 9.9:1

Cross-Reference OEM Part Numbers

• Cylinder: 12100-HR0-F00
• Piston: 13101-HR0-F00
• Cylinder Base Gasket: 12191-HR0-F01
• Cylinder Head Gasket: 12251-HR0-F01
• Cylinder Head Cover Gasket: 12315-HR0-F01
• Ring Set: 13010-HP0-A01
• Piston Pin: 13111-HP5-600
• Piston Circlips: 13112-MAT-000

Vehicle Fitments

• Honda 2012–2019 TRX500 FM/FE/FPE/FPM Fourtrax Foreman 500 4x4
• Honda 2015–2019 TRX500 FA/FM Foreman Rubicon 500 4x4
• Honda 2015–2021 SXS500M2 Pioneer 500 (Liquid-cooled UTV)
• Pioneer 500 SXS500M2 (2015-2022)
• Pioneer 1000 SXS1000M3 (2016-2018)
• Pioneer 1000-5 SXS1000M5 (2016-2021)
• Foreman Rubicon 500 TRX500FA6 4x4 Auto DCT EPS (2015-2019)
• Foreman 500 TRX500FE2 4x4 ES (2013-2019)
• Foreman Rubicon 500 TRX500FA7 4x4 Auto DCT EPS DLX (2019)
