Factory Image Racing Pit Bike Triple Clamp Set 45mm 48mm Forks With 22mm Handlebar Mount Risers

Factory Image Racing Pit Bike Triple Clamp Set 45mm 48mm Forks With 22mm Handlebar Mount Risers. Find the product specifications and compatibility information below.

Product details

• Product: Pit Bike Triple Clamp Set 45mm 48mm Forks With 22mm Handlebar Mount Risers
• Part number: 16-3530
• Brand: Factory Image Racing
• This universal aluminium triple clamp set with integrated bar risers is designed for upside-down (USD) front forks on pit and dirt bikes. It provides secure fork clamping with 45 mm (upper) and 48 mm (lower) bores and accepts standard handlebars, making it suitable for CRF50-style and similar pit bike front ends.

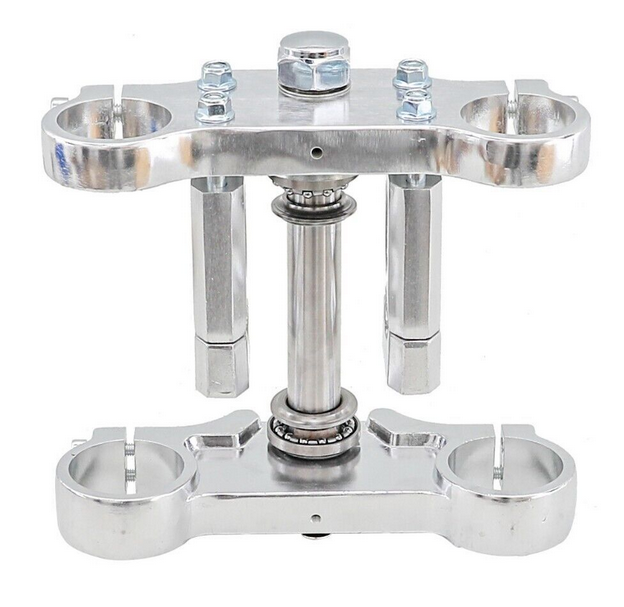

• Complete triple clamp set
• Integrated handlebar risers
• Designed for upside-down (USD) front forks
• Aluminium construction

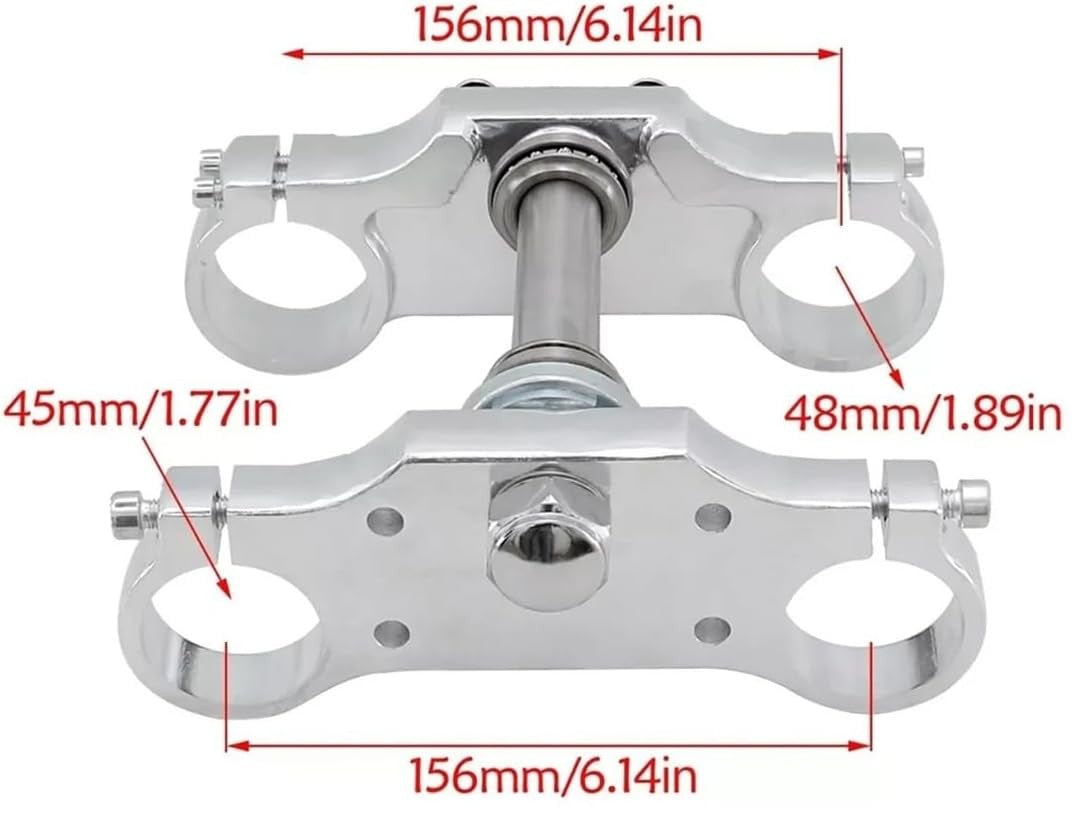

• Upper clamp bore diameter: 45 mm
• Lower clamp bore diameter: 48 mm
• Handlebar clamp diameter: 22 mm (7/8")

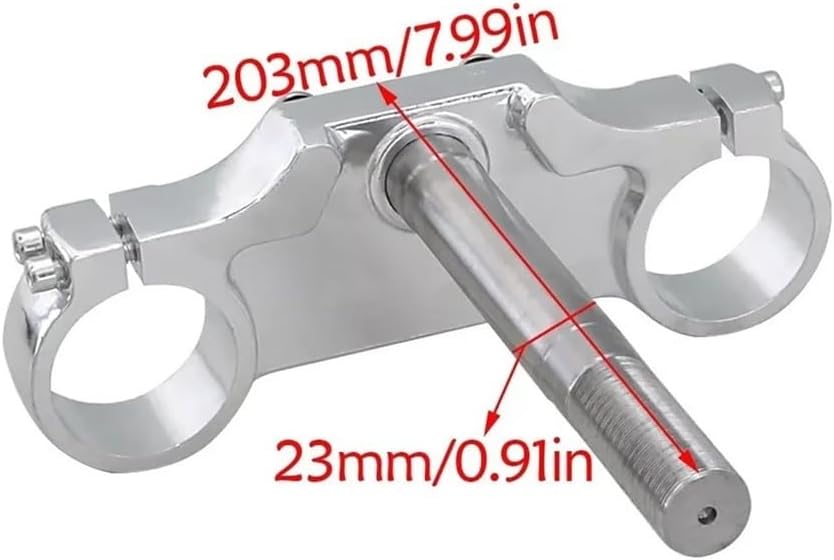

• Column (steering stem) length: 203 mm
• Bolt-to-bolt distance: 156 mm
• Bearing sizes (tapered roller): 320/22 and 320/23
• Vehicle Fitments
• Universal fit for Chinese pit bikes using 45 mm/48 mm USD forks and 22 mm handlebars
• Suitable for small, midsize, and big-wheel pit bike frames
• Commonly used on CRF50-style frames and similar models

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
