Factory Image Racing Pit Bike Triple Clamp Set 33mm Forks With 22mm (7/8) Handlebar Risers

Factory Image Racing Pit Bike Triple Clamp Set 33mm Forks With 22mm (7/8) Handlebar Risers. Find the product specifications and compatibility information below.

Product details

• Product: Pit Bike Triple Clamp Set 33mm Forks With 22mm (7/8) Handlebar Risers
• Part number: 16-3531
• Brand: Factory Image Racing

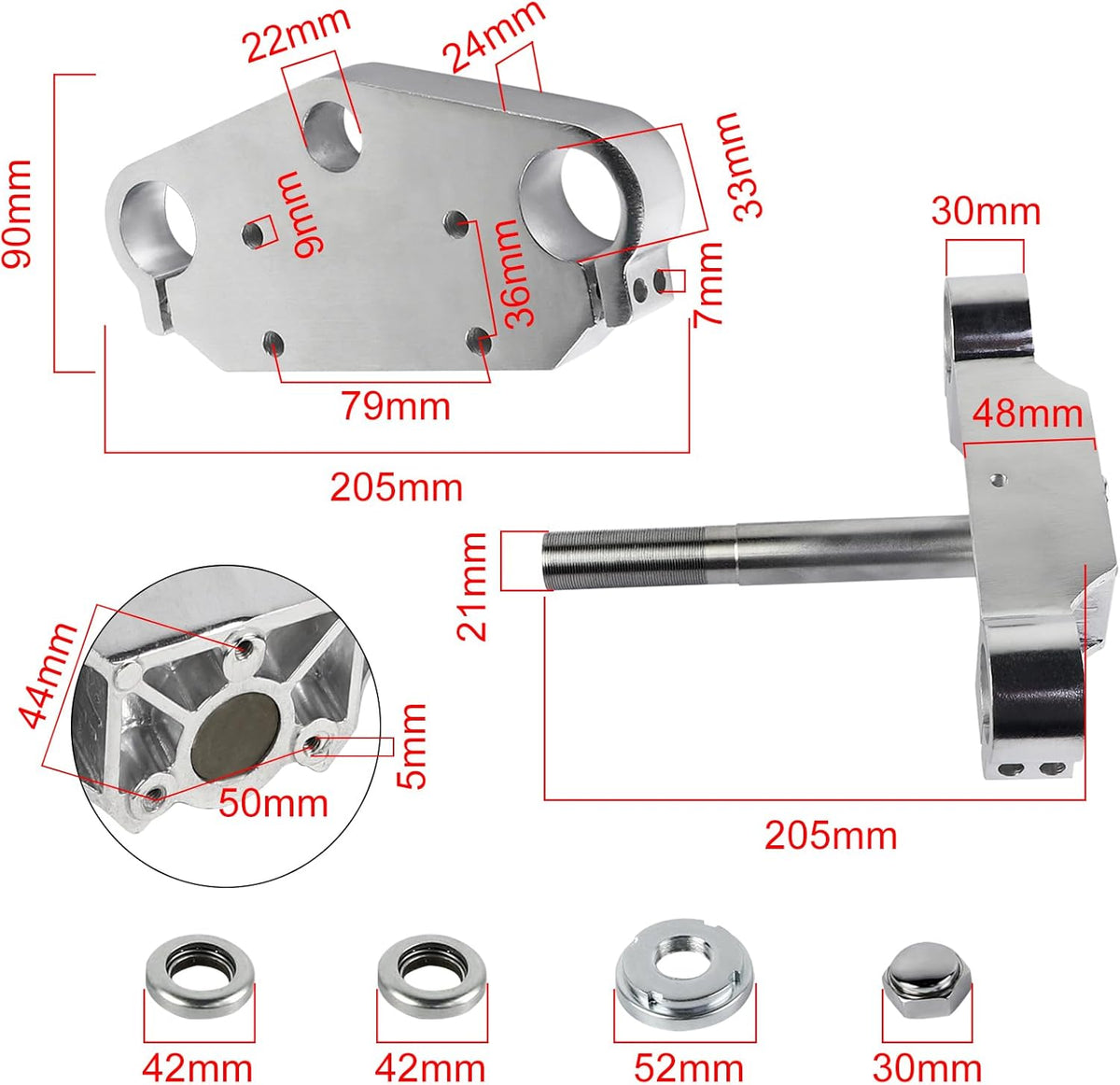

• Aluminium triple tree clamp set with 22 mm (7/8") handlebar mounting clamps for pit and dirt bikes using binocular-style 33 mm forks. Supplied with upper and lower clamps/plates, handlebar riser blocks and a steering stem, it is intended for 50–125 cc Chinese models, including examples such as Atomik and Thumpstar.

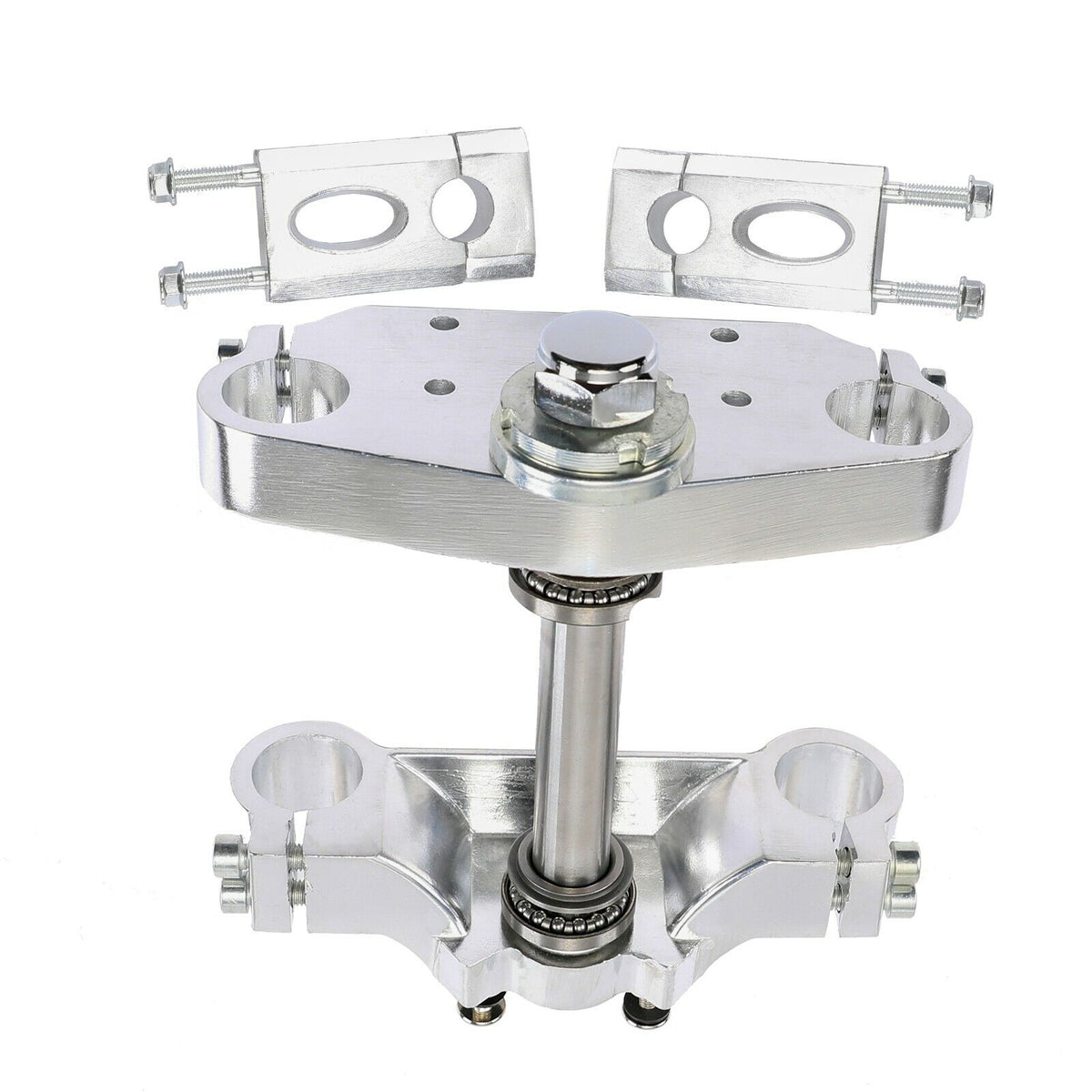

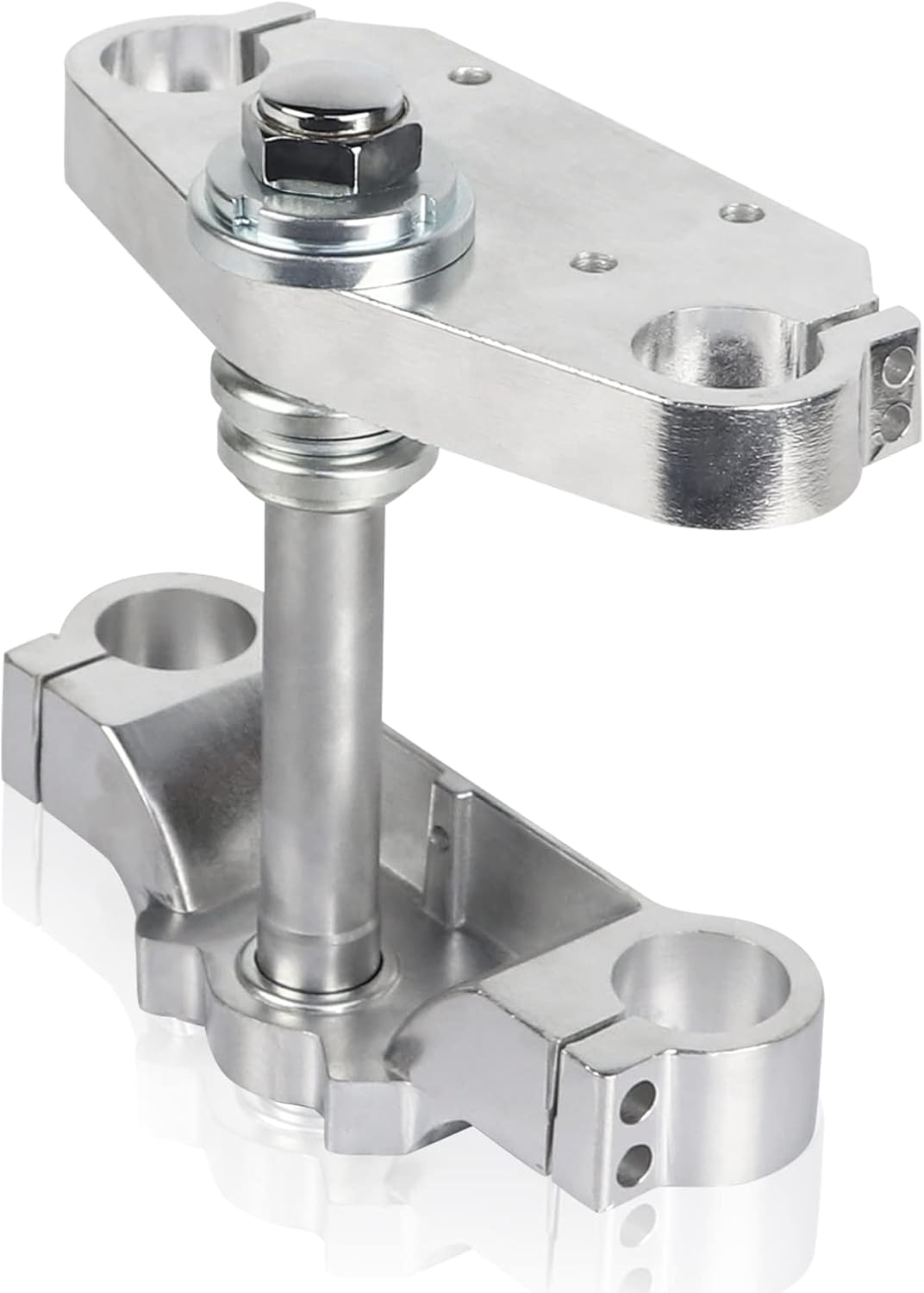

• Complete assembly: upper and lower clamps, handlebar riser blocks and steering stem
• Designed for binocular-style fork front ends on 50–125 cc Chinese pit/dirt bikes
• Compatible with popular models such as Atomik and Thumpstar, and other similar bikes
• General interfaces: for 22 mm (7/8") handlebars; for 33 mm fork tubes
• Upper clamp (top yoke)
• Overall width 160 mm
• Fork clamp bores Ø33 mm

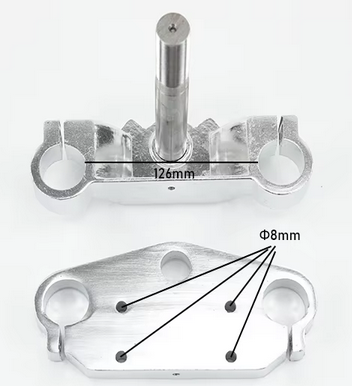

• Fork spacing 126 mm
• Lower clamp/plate (bottom yoke)
• Overall width 205 mm
• Headstock/top bore Ø22 mm
• Central hole pattern 80 mm (horizontal) × 35 mm (vertical)
• Four auxiliary holes Ø8 mm
• Steering stem
• Overall length 180 mm
• Diameters Ø23 mm main section and Ø22 mm top section
• 59 mm upper section length
• Handlebar riser blocks (pair)
• Clamp bore Ø22 mm (7/8")
• Width 50 mm
• Heights 47 mm and 68 mm
• Distance from top to through-hole centre 20 mm and 25 mm respectively
• Vehicle Fitments
• 50 cc, 70 cc, 110 cc and 125 cc Chinese pit/dirt bikes with 33 mm binocular-style forks and 22 mm handlebars, including examples such as Atomik and Thumpstar

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
