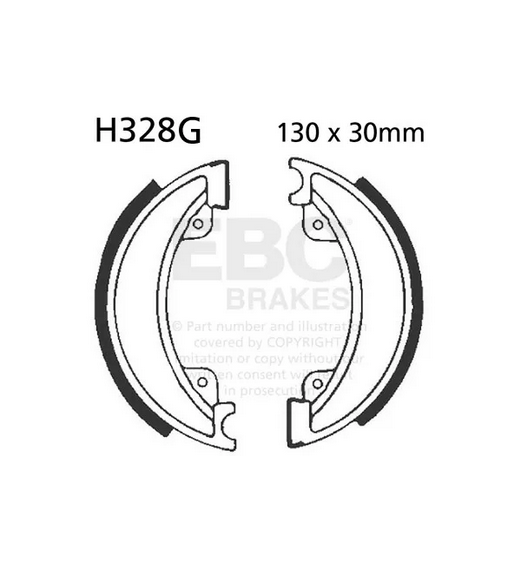

Brake Shoes Grooved Ebc H328G

Brake Shoes Grooved Ebc H328G. Find the product specifications and compatibility information below.

Product details

• Product: Brake Shoes Grooved Ebc H328G
• Part number: 38-328.EBC.GR
• Brand: Ebc
• This grooved brake shoe set from EBC Brakes provides consistent braking performance and control for off-road use. The Water Grooved series design and 100% asbestos-free bonded brake lining on high-pressure die-cast aluminium platforms balance bite, modulation and durability under heat. Supplied as a complete shoe set with original equipment style brake shoe springs, it is suitable for motorcycle drum brake systems in front applications.
• Multiple angled lining grooves to channel away water, mud, dust and debris from the braking area
• Radius-ground lining for accurate drum contact and consistent bedding-in
• Edge-trimmed linings for correct seating within the drum
• Lead-in and lead-out chamfers at lining ends to support smooth engagement

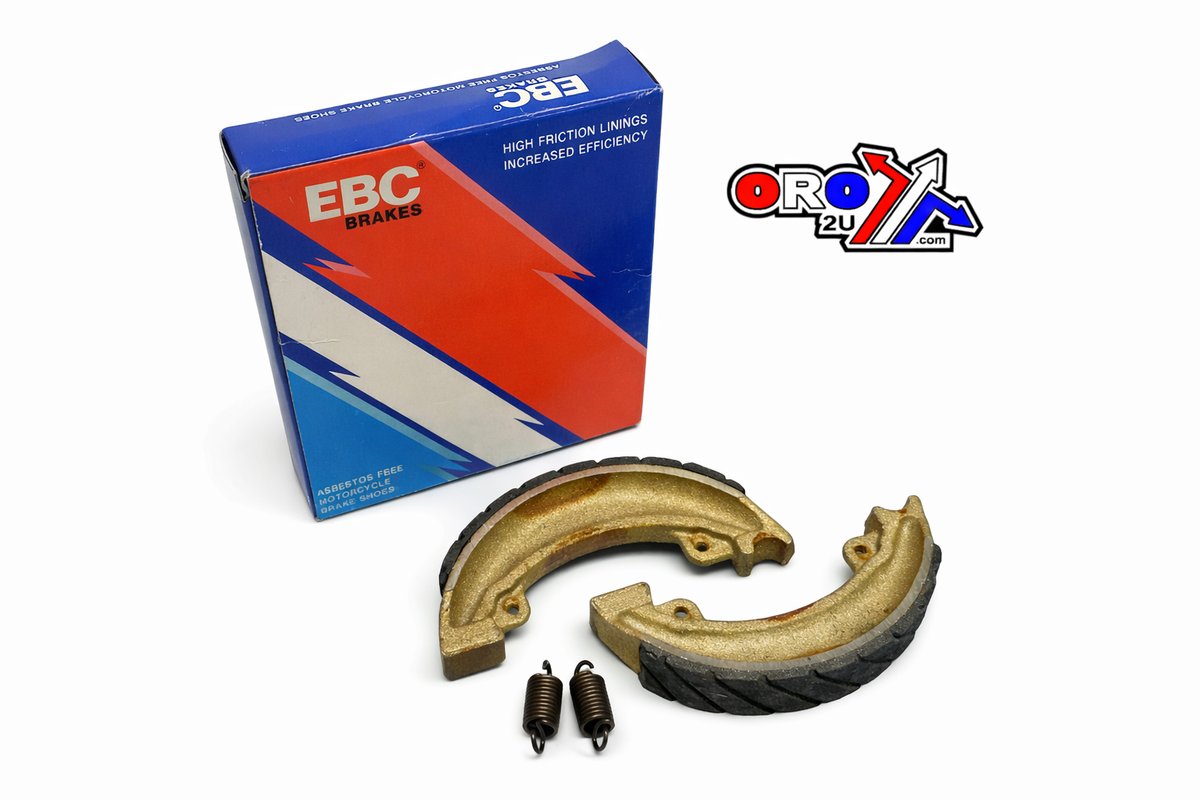

• Supplied with original equipment style brake shoe springs
• Product type: Grooved brake shoe set
• Product range/series: Water Grooved brake shoes
• Position: Front (application dependent)
• Compound / material: 100% asbestos-free bonded brake lining
• Construction / design: High-pressure die-cast aluminium platforms with bonded linings
• Dimensions
• Disc/rotor diameter: 130 mm
• Weight: 0.25 kg
• Cross Reference Numbers
• H328G
• 38-328.EBC.GR
• G328
• H328
• VB144
• VB-144
• 45120-KA4-711
• 45120-KA4-712
• 45120-KA4-305
• 06450-KA4-406
• 1101440

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CR 250cc — 1983
• HONDA CR 480cc — 1983

Match your exact make, model, year and specification before ordering.
