Brake Shoes Honda Quadzilla Yamaha Ebc H346G

Brake Shoes Honda Quadzilla Yamaha Ebc H346G. Find the product specifications and compatibility information below.

Product details

• Product: Brake Shoes Honda Quadzilla Yamaha Ebc H346G
• Part number: 38-346.EBC
• Brand: Ebc

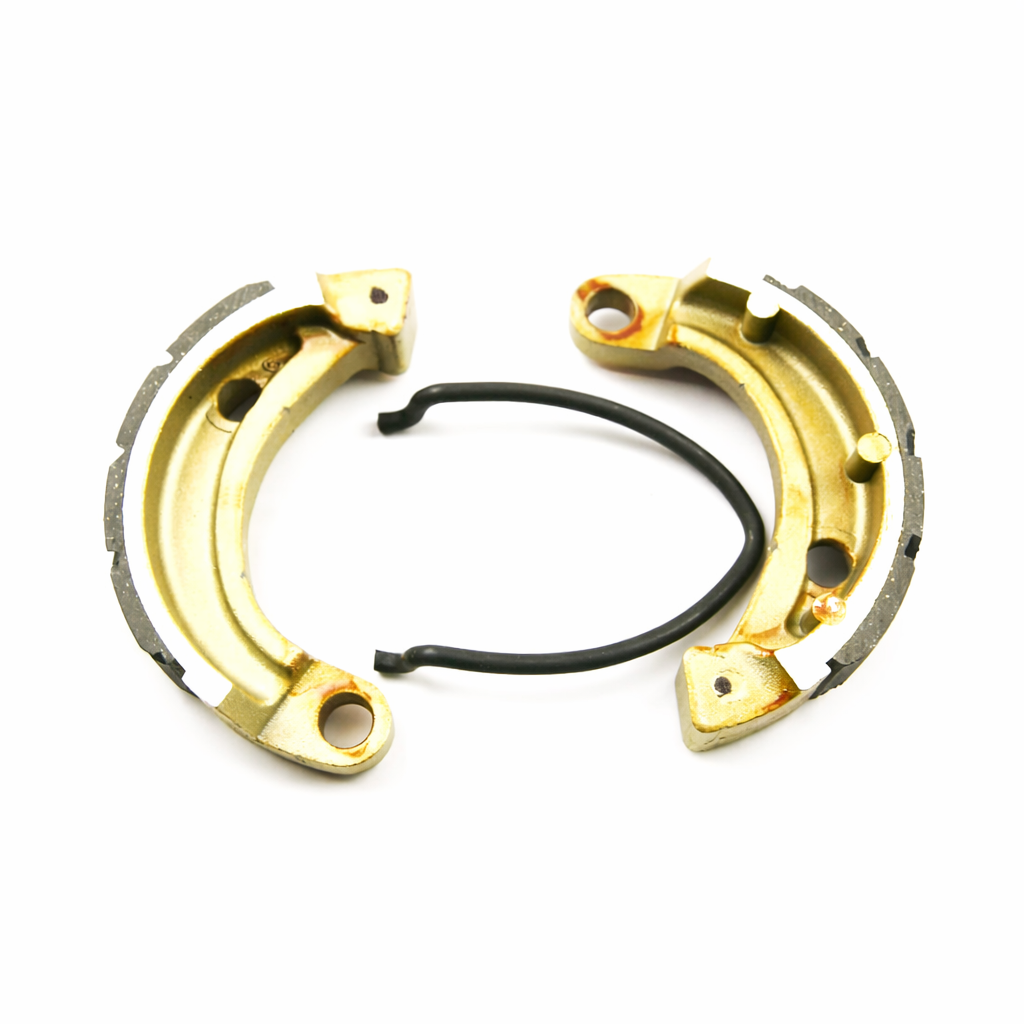

• This brake shoe set from EBC Brakes provides consistent braking performance and control for off-road use. The Water Grooved Brake Shoes design and 100% asbestos-free bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for 87 mm × 20 mm drum-brake systems in drum-brake applications and is manufactured as an OE-quality replacement where applicable.
• Angled water grooves to channel away water, dirt and dust from the braking area
• Radius-ground and edge-trimmed linings for accurate drum contact
• Lead-in and lead-out chamfers for progressive engagement
• Product type: Brake shoe set
• Product range/series: Water Grooved Brake Shoes
• Compound / material: 100% asbestos-free bonded brake lining
• Construction / design: Grooved friction linings bonded to high-pressure die-cast aluminium shoe platforms
• Dimensions

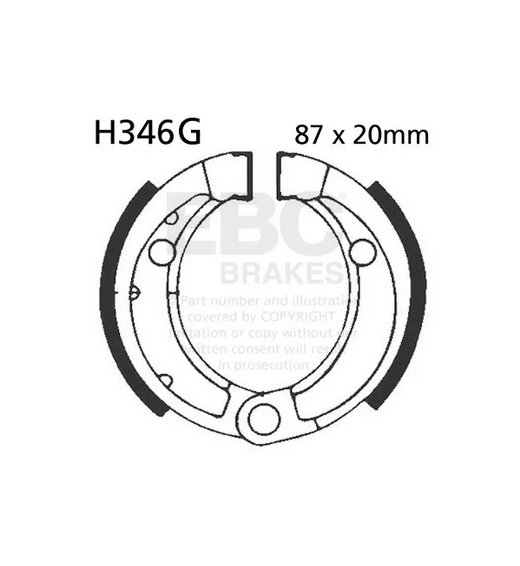

• Pad/shoe dimensions (L × H × T): 87 mm × 20 mm (drum diameter × shoe width)
• Weight: 0.15 kg
• Cross Reference Numbers
• H346G
• EBC346G
• 5050953101892
• Vehicle Fitment
• ADLY (Front Left)
• GK 125 Buggie (2005, 2007)
• ADLY (Front Right)
• GK 125 Buggie (2003-2004, 2006)
• AEON (Front Left)
• Cobra 60 AT30 (2005-2007, 2009)
• AEON (Front Right)
• Cobra 60 AT30 (2004, 2008, 2010-2011)
• APACHE (Front Left)
• RLX 100 (2002)
• RLX 110 (2002)
• Mini Tomahawk 50 (2009)
• APACHE (Front Right)
• RLX 50 (2008)
• Mini Tomahawk 50 (2008)
• ZX 100 (2012)
• BOMBARDIER|BRP (Front Left)
• DS 50 (2003)
• Quest 90 (2003-2004)
• DS 90 (2002-2003, 2005-2006)
• BOMBARDIER|BRP (Front Right)
• Quest 50 (2003-2004)
• DS 50 (2002, 2004-2006)
• DS 90 (2004)
• CAN AM ATV (Front Left)
• DS 70 2 x 4|4T Mini (2008-2011, 2013, 2019)
• Renegade 70 (2023)
• DS 90 2 x 4|4T (2007-2008, 2011)
• CAN AM ATV (Front Right)
• DS 70 2 x 4|4T Mini (2012, 2014-2018, 2020-2021)
• DS 90 2 x 4|4T (2009-2010, 2012-2021)
• HONDA (Front Left)
• TRX 70 Fourtrax (1986-1987)
• KYMCO (Front Left)
• KXR 50 Mongoose (2005)
• Maxxer 50 (2006, 2008-2009)
• Maxxer 90 (2006)
• Mongoose KXR 90 S Quad (2005-2006, 2011, 2013-2014, 2016, 2021-2022, 2024)
• KYMCO (Front Right)
• KXR 50 Mongoose (2004, 2006)
• Maxxer 50 (2005, 2007, 2010-2014)
• Maxxer 90 (2005)
• Mongoose KXR 90 S Quad (2004, 2007-2010, 2012, 2015, 2017-2020, 2023, 2025)
• MOTOROMA (Front Left)
• Lazer Buggie 125 (2004-2005)
• MOTOROMA (Front Right)
• Lazer Buggie 125 (2003, 2006-2007)
• QUADZILLA (Front Left)
• Micro Buggy MKII|III RV 50 (2005, 2007)
• X50 (2003)
• ZR50 (2007-2009)
• Magmax 100 (2000)
• Pro Shark 100 (2003)
• QUADZILLA (Front Right)
• Micro Buggy MKII|III RV 50 (2006, 2008-2009)
• X100 (2006)
• YAMAHA (Front Left)
• YFM 90 Raptor (2016, 2022-2023)
• YAMAHA (Front Right)
• YFM 90 Raptor (2017-2021)
• YFM 110 Raptor (2025)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
