Brake Shoes Grooved Yamaha Ebc G503 Y503G

Brake Shoes Grooved Yamaha Ebc G503 Y503G. Find the product specifications and compatibility information below.

Product details

• Product: Brake Shoes Grooved Yamaha Ebc G503 Y503G
• Part number: 38-503.EBC
• Brand: Ebc

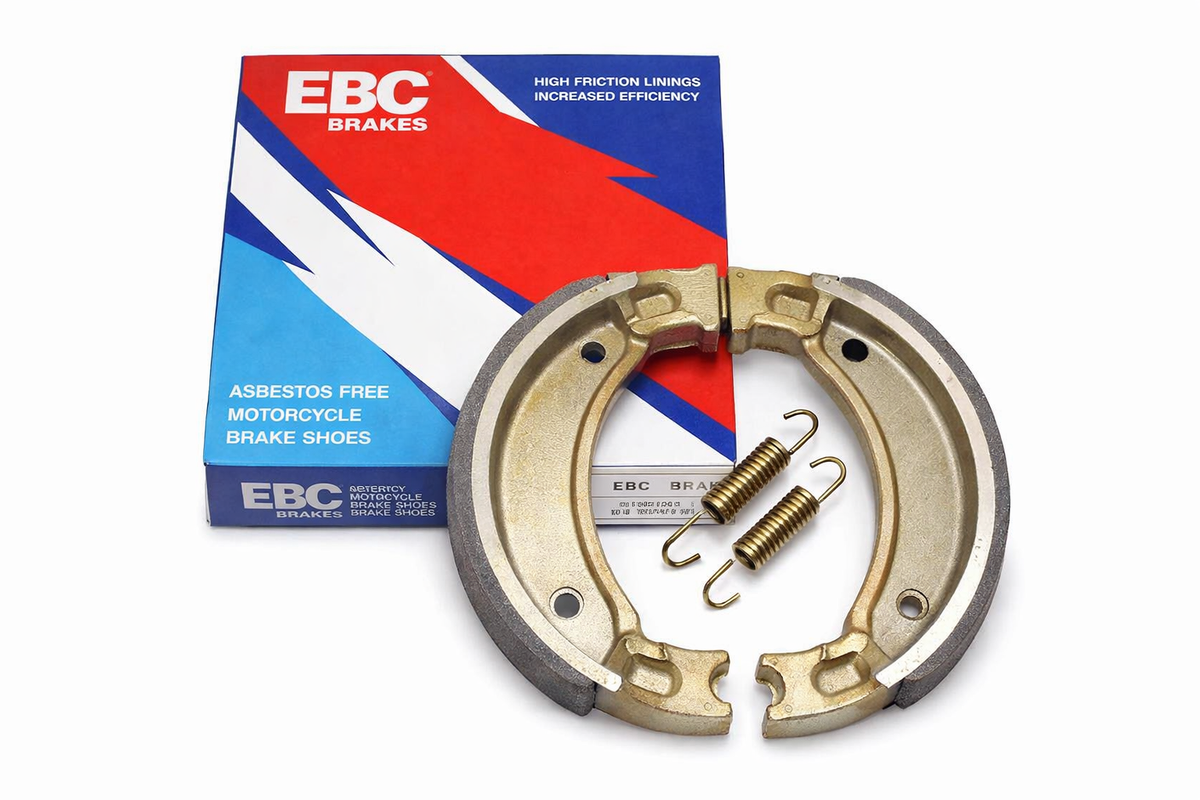

• This brake shoe set from EBC Brakes provides consistent braking performance and control for off-road use. The Water Grooved Brake Shoes design and 100% asbestos-free bonded organic brake lining construction balance bite, modulation and durability under heat. Supplied as a complete shoe set with OE-style brake shoe springs, it is suitable for 110 mm × 25 mm drum-brake systems in front applications and is manufactured as an OE-quality replacement where applicable.
• Angled water grooves to channel away water, dirt and dust from the braking area
• Radius-ground and edge-trimmed linings for accurate drum contact
• Lead-in and lead-out chamfers for progressive engagement
• Supplied with OE-style brake shoe springs
• Product type: Brake shoe set
• Product range/series: Water Grooved Brake Shoes
• Position: Front
• Compound / material: 100% asbestos-free bonded organic brake lining
• Construction / design: Grooved friction linings bonded to high-pressure die-cast aluminium shoe platforms
• Dimensions

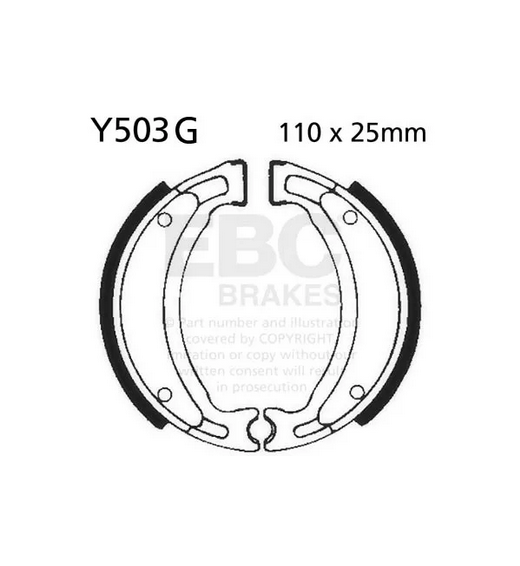

• Pad/shoe dimensions (L × H × T): 110 mm × 25 mm (drum diameter × shoe width)
• Weight: 0.2 kg
• Cross Reference Numbers
• Y503G
• EBCY503G
• G503
• 5050953102950

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YZ 100cc — 1982–1983
• YAMAHA PW 80cc — 1993–2007
• YAMAHA TY 80cc — 1983–1984

Match your exact make, model, year and specification before ordering.
