Brake Shoes Kawasaki Suzuki Ebc S603

Brake Shoes Kawasaki Suzuki Ebc S603. Find the product specifications and compatibility information below.

Product details

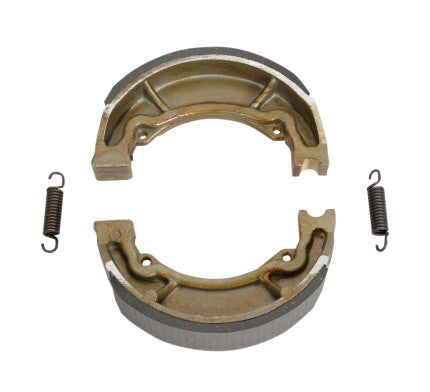

• Product: Brake Shoes Kawasaki Suzuki Ebc S603
• Part number: 38-603
• Brand: Ebc
• This brake shoe set from EBC Brakes provides consistent braking performance and control for road use. The plain motorcycle replacement design and asbestos-free organic bonded lining construction balance bite, modulation and durability under heat. Supplied as a complete brake shoe set with OE-style brake shoe springs, it is suitable for 110 mm drum brake applications on two-wheeled machines.
• Radius ground to match the drum for stable contact and predictable engagement
• Edge trimmed with lead-in and lead-out chamfers to promote smooth initial bite
• Supplied with OE-style brake shoe springs for correct return and fit
• Product type: Brake shoe set
• Product range/series: Plain motorcycle replacement brake shoes
• Position: Front or rear (application dependent)
• Compound / material: Asbestos-free organic (NAO) bonded brake lining
• Construction / design: High-pressure die-cast aluminium shoe platforms with bonded linings
• Direction of rotation: Not directional
• Dimensions

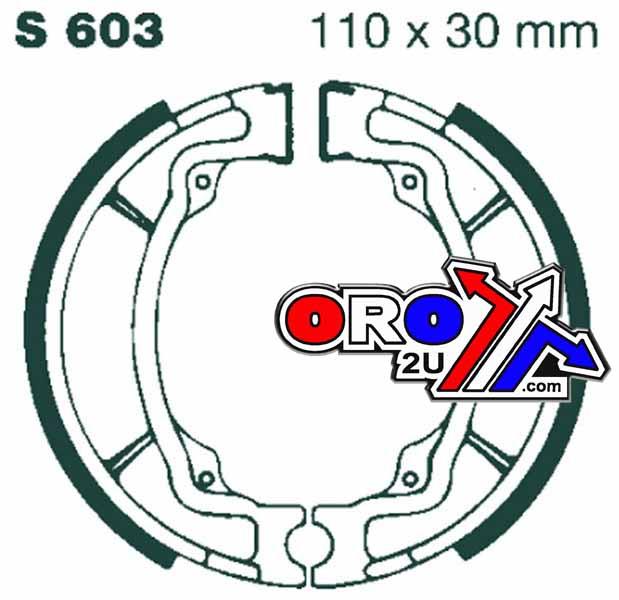

• Pad/shoe dimensions (L × H × T): 110 mm (drum diameter) × 30 mm (covering width)
• Cross Reference Numbers
• EBC: S603

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI TM 125cc — 1973–1975
• SUZUKI RM 50cc — 1978–1980
• SUZUKI TS 100cc — 1973–1975
• SUZUKI TS 125cc — 1971–1973
• SUZUKI RM 80cc — 1977–1979
• SUZUKI PE 250cc — 1979

Match your exact make, model, year and specification before ordering.
