Brake Shoes Kawasaki Suzuki Ebc S605

Brake Shoes Kawasaki Suzuki Ebc S605. Find the product specifications and compatibility information below.

Product details

• Product: Brake Shoes Kawasaki Suzuki Ebc S605
• Part number: 38-605.EBC
• Brand: Ebc

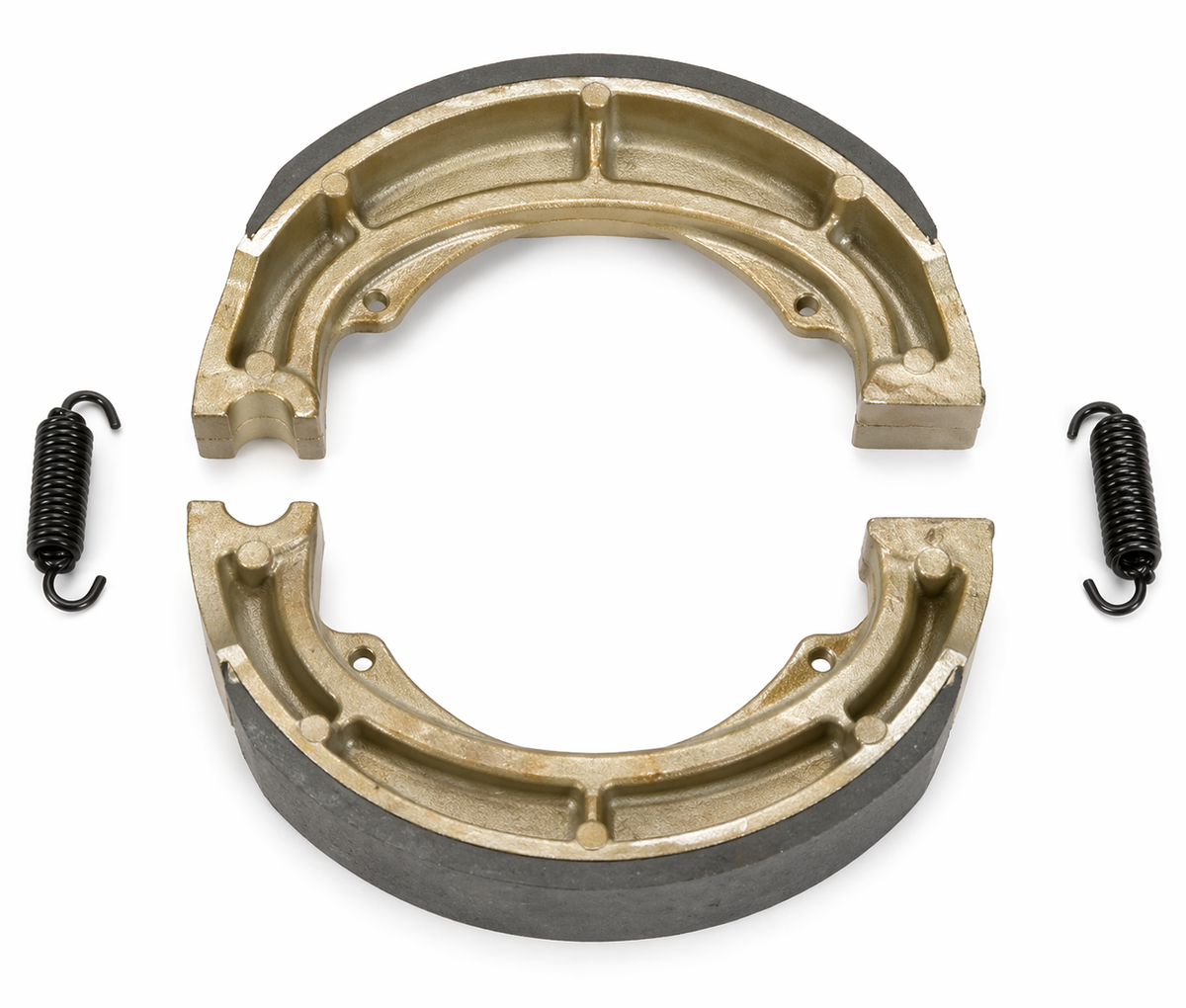

• This brake shoe set from EBC Brakes provides consistent braking performance and control for off-road use. The plain motorcycle replacement design and bonded brake lining construction balance bite, modulation and durability under heat. Supplied as a complete brake shoe set with OE-style brake shoe springs, it is suitable for 150 mm drum brake systems in rear applications.
• Radius ground to match the drum for stable contact and predictable engagement
• Edge trimmed with lead-in and lead-out chamfers to promote smooth initial bite
• Supplied with OE-style brake shoe springs for correct return and fit
• Product type: Brake shoe set
• Product range/series: Plain motorcycle replacement brake shoes
• Position: Rear
• Compound / material: Bonded brake lining
• Construction / design: High-pressure die-cast aluminium shoe platforms with bonded linings
• Direction of rotation: Not directional
• Dimensions

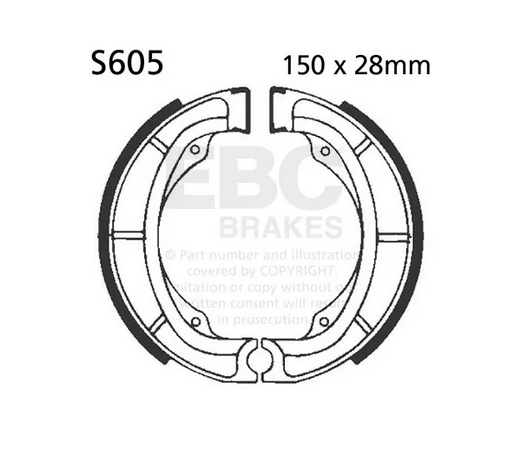

• Pad/shoe dimensions (L × H × T): 150 mm (drum diameter) × 28 mm (shoe width)
• Weight: 0.45 kg
• Cross Reference Numbers
• EBC: S605

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 420cc — 1980–1981
• SUZUKI PE 250cc — 1980–1982
• KAWASAKI KX 250cc — 1974–1981
• SUZUKI RM 250cc — 1976–1978
• KAWASAKI KL 250cc — 1978–1979
• SUZUKI RM 250cc — 1979
• SUZUKI PE 250cc — 1977–1978
• SUZUKI PE 400cc — 1979–1981
• SUZUKI DR 400cc — 1979–1981

Match your exact make, model, year and specification before ordering.
