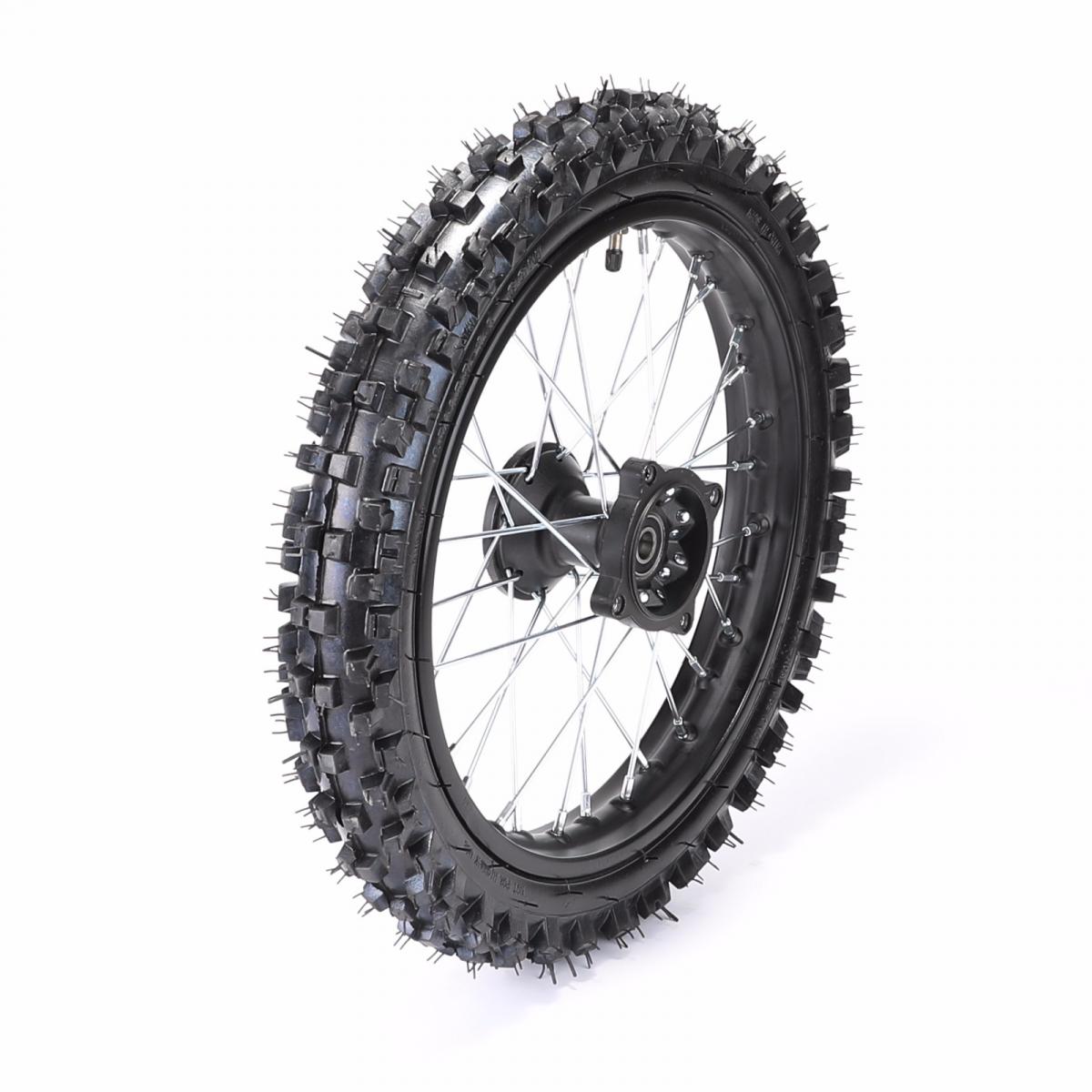

Factory Image Racing Front Wheel 14 Pit Bike 15MM Axle 60/100-14 Sdg 4 Bolt Disc Brake

Factory Image Racing Front Wheel 14 Pit Bike 15MM Axle 60/100-14 Sdg 4 Bolt Disc Brake. Find the product specifications and compatibility information below.

Product details

• Product: Front Wheel 14 Pit Bike 15MM Axle 60/100-14 Sdg 4 Bolt Disc Brake
• Part number: 42-2193
• Brand: Factory Image Racing
• 14 in front pit bike wheel assembly supplied with a 60/100-14 off-road tyre (30M), designed for bikes using a 15 mm front spindle. The rim is 1.35 in wide, with a 75 mm hub width (bearing to bearing). Brake disc fitment is via a 4-hole mount on a 100 mm PCD, with 7 mm disc mounting holes. Not for highway use.
• Front wheel assembly for pit bikes with disc brake setup
• Supplied with fitted off-road tyre
• Compatible with standard SDG-type 4-bolt brake disc mounting pattern
• Off-road use only; not for highway use
• Wheel size: 14 in
• Tyre size: 60/100-14 (service description 30M)
• Tyre size equivalent: 2.50-14
• Rim width: 1.35 in
• Axle/spindle diameter: 15 mm
• Hub width (bearing to bearing): 75 mm
• Brake disc mounting: 4 holes
• Brake disc mount PCD: 100 mm
• Brake disc mounting bolt hole diameter: 7 mm
• Brake disc mounting centre bore: 76 mm (SDG pattern)
• Vehicle Fitments
• May fit: KLX
• May fit: TTR
• May fit: SSR
• May fit: Atomik

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
