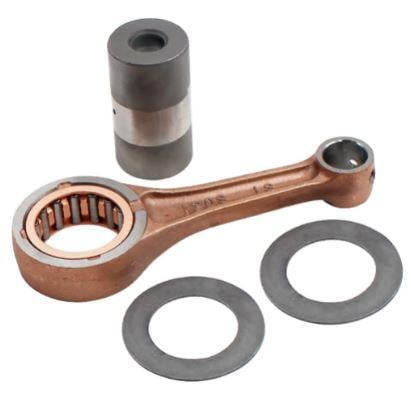

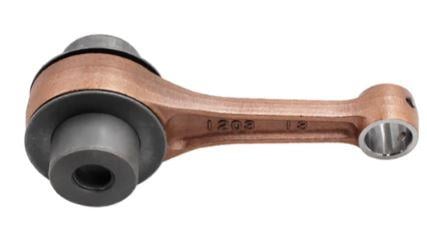

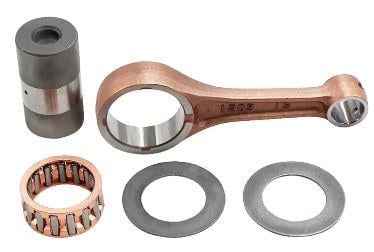

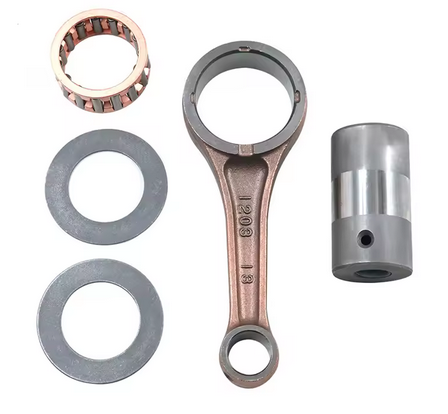

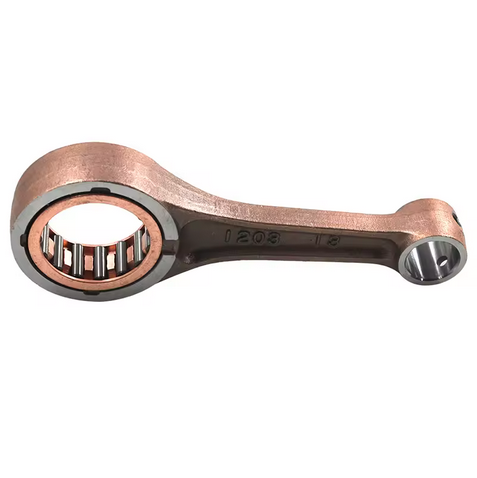

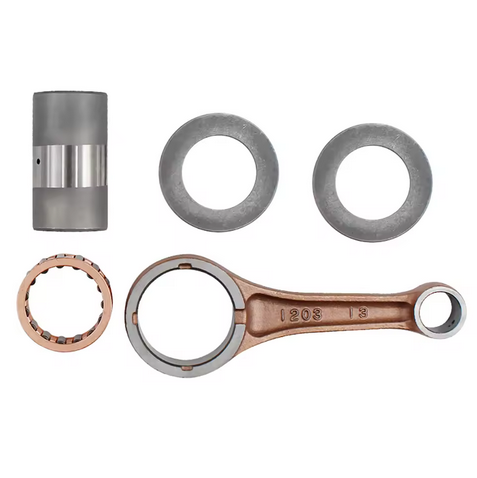

Connecting Rod Assembly Kit 1992-2017 Kawasaki KLX250 KLX300 13101-1253

Connecting Rod Assembly Kit 1992-2017 Kawasaki KLX250 KLX300 13101-1253. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Assembly Kit 1992-2017 Kawasaki KLX250 KLX300 13101-1253
• Part number: 56-0011.AAA
• This connecting rod (crank rod) kit is manufactured to tight tolerances to support accurate fit and long-term reliability. Built to OEM specification, it is a direct replacement and supplied with dimensions detailed below for correct assembly.
• Meets or exceeds OEM quality
• Direct OEM replacement
• Manufactured to the tightest tolerances for an accurate fit
• Cost-effective option
• Please check the image before ordering to avoid mistakes
• Easy to install; professional assistance recommended if unsure
• Centre to centre: 107 mm
• Small end bore Ø: 17 mm
• Small end width: 18.00 mm
• Big end bearing: 32 × 41 × 17.75 mm
• Big end bore Ø: 41 mm
• Big end width: 18.00 mm
• Big end pin Ø: 32 mm
• Big end pin length: 58.60 mm
• Washer thickness: 32 × 52 × 1.20 mm
• Overall length of rod: 145 mm
• Cross-Reference OEM Part Numbers
• 13031-1427
• Vehicle Fitments
• Kawasaki KLX250 (1992–2017)
• Kawasaki KLX300 (1996–2007)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
