Hot Rods Connecting Rod TRX420 TRX500, Hotrod 8713 Honda ATV

Hot Rods Connecting Rod TRX420 TRX500, Hotrod 8713 Honda ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod TRX420 TRX500, Hotrod 8713 Honda ATV
• Part number: 56-0359.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for durability.
• Incorporates the latest caged needle roller bearing designs for high RPM reliability.
• Big end design includes side scalloping and vent slots to minimize bearing race distortion under high RPM conditions.
• Shot-peened to eliminate surface stress risers and blend rod forging radiuses.
• Double-honed bearing surfaces ensure ultra-roundness for high RPM performance.
• Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.

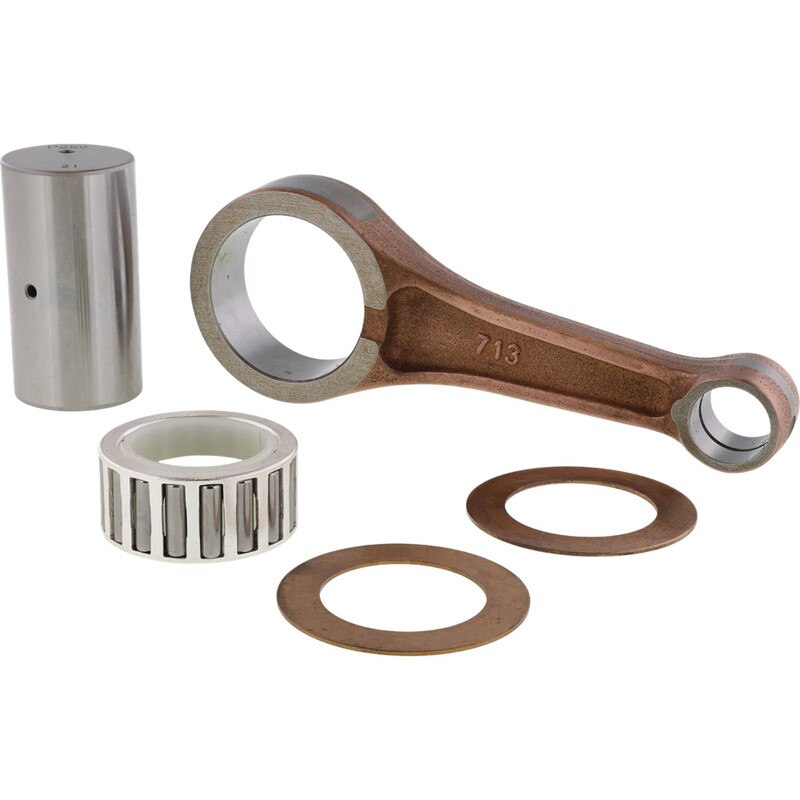

• Complete assembly includes rod, crank pin, crank pin bearing, top-end bearing, and silver-coated bronze phosphor thrust washers.
• Center-to-Center Length: 118 mm
• Big End Inner Diameter: 44 mm
• Big End Width: 20 mm
• Small End Inner Diameter: 19 mm
• Small End Width: 20 mm
• Crank Pin Length: 57 mm
• Washer Thickness: 1 mm

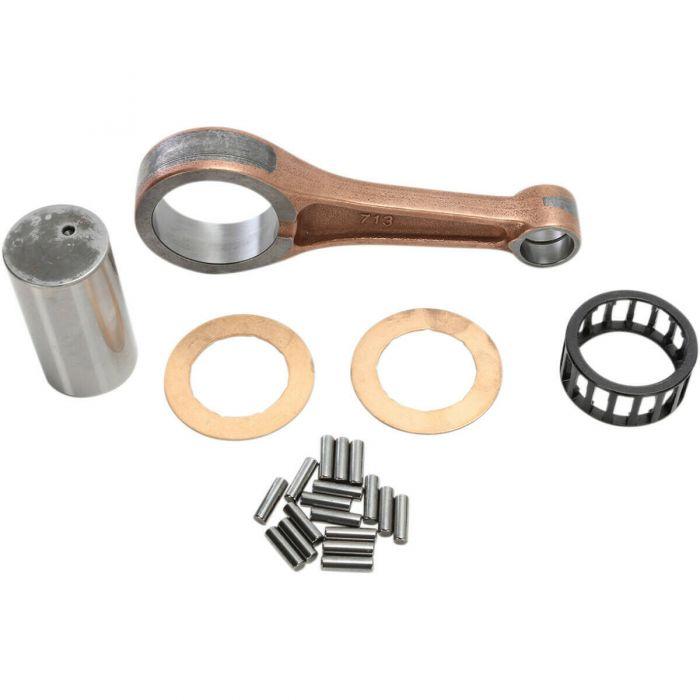

• Included Components:
• (1) Connecting Rod
• (1) Crank Pin
• (1) Big-End Bearing
• (2) Thrust Washers
• (16) Bearing Rollers

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA TRX FPM 500cc — 2012–2013
• HONDA TRX TM 420cc — 2012–2013
• HONDA TRX TE 420cc — 2012–2013
• HONDA TRX FM 420cc — 2012–2013
• HONDA TRX FE 420cc — 2012–2013
• HONDA TRX FPE 420cc — 2012–2013
• HONDA TRX FOREMAN 500cc — 2012–2013
• HONDA TRX FPM 420cc — 2012–2013
• HONDA TRX FPE 500cc — 2011–2012
• HONDA TRX FOREMAN 500cc — 2012–2016
• HONDA TRX FM FOREMAN 500cc — 2012–2013
• HONDA TRX 420cc — 2012–2013

Match your exact make, model, year and specification before ordering.
