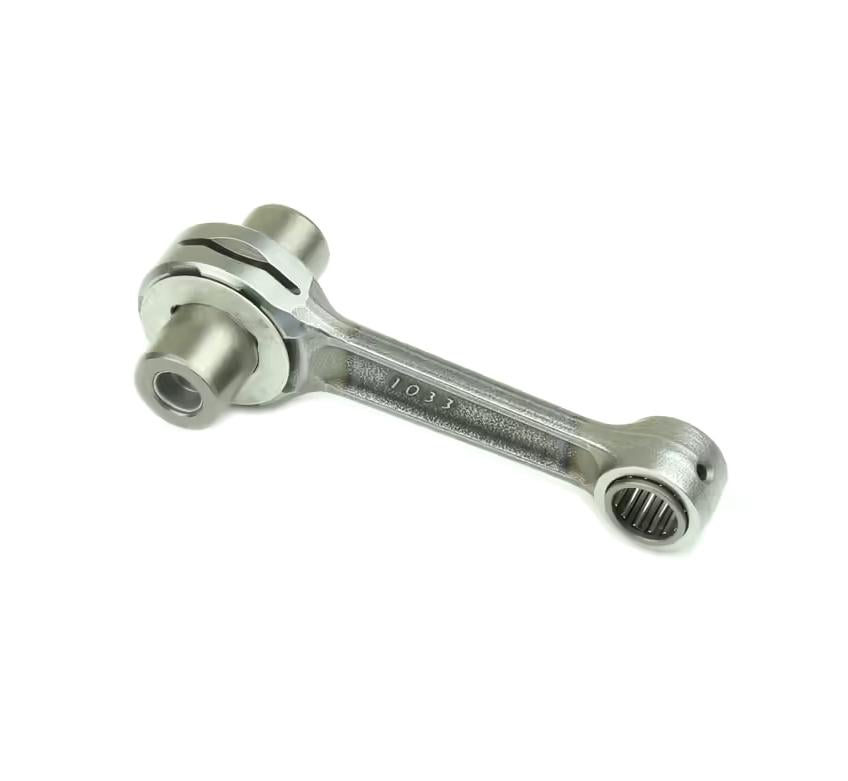

Connecting Rod Kit Kawasaki KX 125 03-08, Athena P40321033

Connecting Rod Kit Kawasaki KX 125 03-08, Athena P40321033. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit Kawasaki KX 125 03-08, Athena P40321033
• Part number: 56-106.ATH
• Brand: Athena
• ATHENA Connecting Rod - P40321033
• Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
• Technical features
• Big End Bore (mm) 29.00
• Big End Pin Diameter (mm) 22.00
• Big End Width (mm) 17.00
• Center To Center (mm) 104.00
• Net Weight (Kg) 0.36
• Piston Pin Diameter (mm) 19.00
• Small End Width (mm) 17.00
• Washer Thickness (mm) 1.00

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 125cc — 2003
• KAWASAKI KX 125cc — 2003–2008
• KAWASAKI KX 125cc — 2003–2005
• KAWASAKI KX 125cc — 2003–2006
• KAWASAKI KX 125cc — 2007
• KAWASAKI KX 125cc — 2004–2005
• KAWASAKI KX 125cc — 2008
• KAWASAKI KX 125cc — 2006

Match your exact make, model, year and specification before ordering.
