Connecting Rod 02-20 RM85, Psychic MX-09055 Suzuki

Connecting Rod 02-20 RM85, Psychic MX-09055 Suzuki. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 02-20 RM85, Psychic MX-09055 Suzuki
• Part number: 56-108.DR
• Brand: Psychic
• CONNECTING ROD REBUILD KIT PSYCHIC MX-09055
• RM85 2002 - 2020,
• RM80 1991 - 2001,

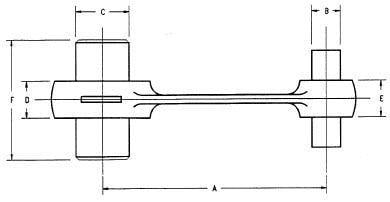

• CONNECTING ROD SIZE PLEASE SEE DRAWING
• SIZE mm. A = 93.50, B = 14 , C = 20 , D = 14, E = 14, F = 44.60
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

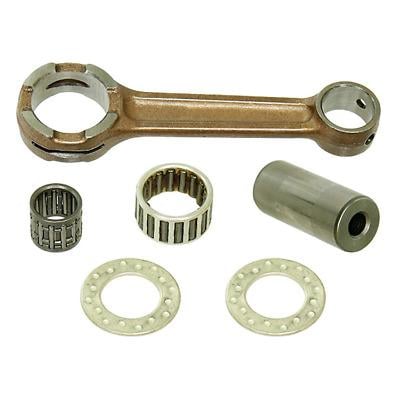

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• Please check the image before ordering to avoid mistakes.
• SIZE
• MM
• Centre 2 Centre
• 93.50
• Small End Bearing
• 14x18x
• Small End Bore Ø
• 18
• Small End Width
• 14
• Big End Bearing
• 20x26x14
• Big End Bore Ø
• 26
• Big End Width
• Big End Pin Ø
• 20
• Big End Pin Length
• 44.60
• Washer Thickness
• 20x1.50
• Part No. 56-108.DR (www.fdyperformance.com)
• PROX 03.3122, 12161-03B00, 12161-03B01, 12161-03B02, MX-09055, PROX 03.3122, WOSSNER P2007, HOTRODS 8610, 12161-03B00, 12161-03B01, 12161-03B02,

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 80cc — 1990–2001
• SUZUKI RM 85cc — 2002–2015
• SUZUKI RM 85cc — 2002–2021
• SUZUKI RM 85cc — 2002–2020
• SUZUKI RM 85cc — 2002–2019
• SUZUKI RM 85cc — 2002–2018
• SUZUKI RM 85cc — 2002–2012
• SUZUKI RM 85cc — 2002–2016
• SUZUKI RM 85cc — 2015–2016

Match your exact make, model, year and specification before ordering.
