Connecting Rod 02-18 RM85, Hot Rods 8610 Suzuki

Connecting Rod 02-18 RM85, Hot Rods 8610 Suzuki. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 02-18 RM85, Hot Rods 8610 Suzuki
• Part number: 56-108.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for enhanced strength and durability.
• Advanced design incorporates side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods for improved grain flow and consistent dimensions.
• Shot-peened and double-honed for superior strength and reliability.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for enhanced lubricity.

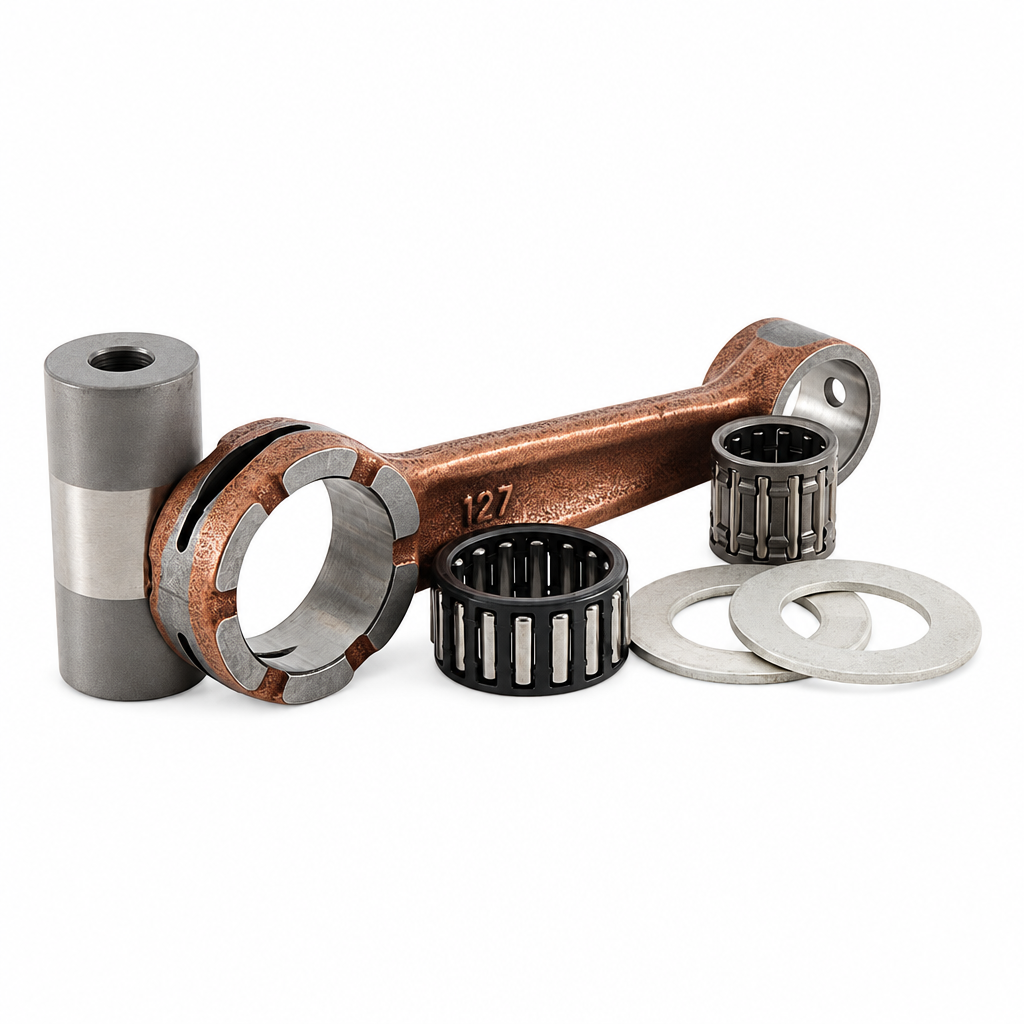

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Specifications (Dimensions in mm):
• A (Center-to-Center Length): 93.50
• B (Big End Bore Diameter): 26.00
• C (Big End Width): N/A
• D (Small End Bore Diameter): 14.00
• E (Small End Width): N/A
• F (Pin Length): 44.60
• Washer Thickness: 1.50
• Big End Bearing: 20 x 26 x 13.7 mm

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 80cc — 1990–2001
• SUZUKI RM 85cc — 2002–2015
• SUZUKI RM 85cc — 2002–2021
• SUZUKI RM 85cc — 2002–2020
• SUZUKI RM 85cc — 2002–2019
• SUZUKI RM 85cc — 2002–2018
• SUZUKI RM 85cc — 2002–2012
• SUZUKI RM 85cc — 2002–2016
• SUZUKI RM 85cc — 2015–2016

Match your exact make, model, year and specification before ordering.
