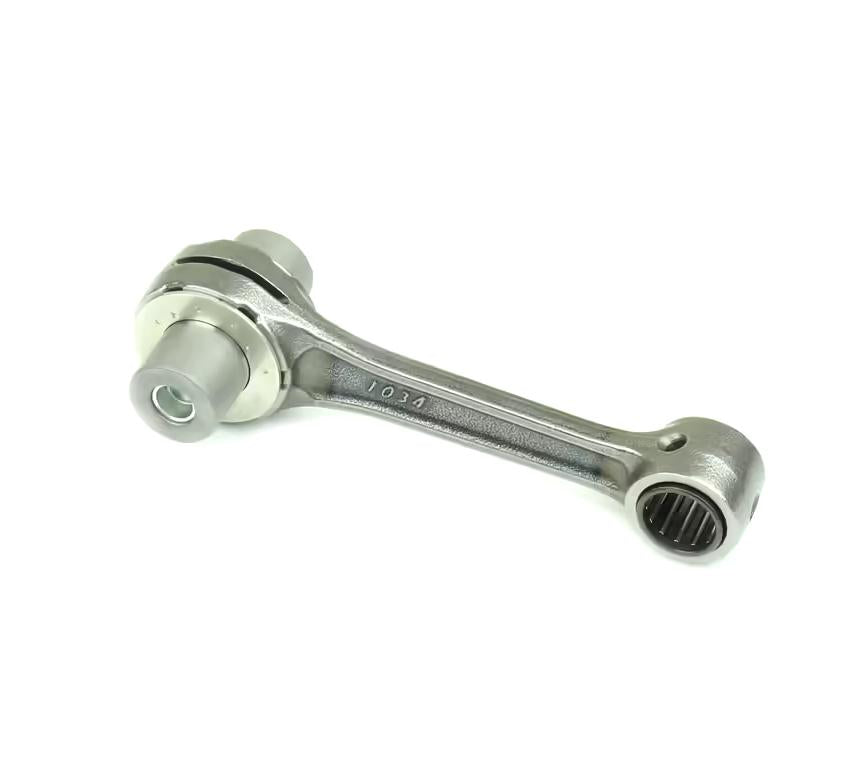

Connecting Rod Kit KX/Kdx/KXF 250 78-08, Athena P40321034 Kawasaki

Connecting Rod Kit KX/Kdx/KXF 250 78-08, Athena P40321034 Kawasaki. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit KX/Kdx/KXF 250 78-08, Athena P40321034 Kawasaki
• Part number: 56-110.ATH
• Brand: Athena
• ATHENA Connecting Rod Offroad Kit - P40321034
• Athena’s connecting rods are made using the most advanced materials and treatments in order to offer the best to one of the most stressed engine component. The manufacturing to which they are exposed allows them to achieve an excellent rigidity-weight ratio and a better resistance to stress while maintaining a very competitive price.
• Technical features
• Big End Bore (mm) 32.00
• Big End Pin Diameter (mm) 24.00
• Big End Width (mm) 20.00
• Center To Center (mm) 125.00
• Net Weight (Kg) 0.49
• Piston Pin Diameter (mm) 22.00
• Small End Width (mm) 22.00
• Washer Thickness (mm) 1.50
• Partner Cross Reference code
• 13032-1279
• 13044-5056
• PSYCHIC MX-09033
• PROX 03.4309
• WOSSNER P2022
• HOTROD 8108
• ATHENA P40321034

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KX 250cc — 2004
• KAWASAKI KX 250cc — 2005–2006
• KAWASAKI KX 250cc — 1996
• KAWASAKI KX 250cc — 1998
• KAWASAKI KX 250cc — 1989
• KAWASAKI KX 250cc — 1995
• KAWASAKI KX 250cc — 1994
• KAWASAKI KX 250cc — 2003
• KAWASAKI KX 250cc — 1985
• KAWASAKI KX 250cc — 1987
• KAWASAKI KX 250cc — 1991
• KAWASAKI KX 250cc — 1990
• KAWASAKI KX 250cc — 1982
• KAWASAKI KX 250cc — 1997
• KAWASAKI KDX 250cc — 1991–1994
• KAWASAKI KX 250cc — 1999
• KAWASAKI KX 250cc — 2002
• KAWASAKI KX 250cc — 2001
• KAWASAKI KX 250cc — 2000
• KAWASAKI KDX 250cc — 1990–1994
• KAWASAKI KX 250cc — 1979
• KAWASAKI KX 250cc — 1978
• KAWASAKI KX 250cc — 1988
• KAWASAKI KX 250cc — 1986
• KAWASAKI KX 250cc — 2004–2008
• KAWASAKI KX 250cc — 1993
• KAWASAKI KX 250cc — 2008
• KAWASAKI KX 250cc — 2007
• KAWASAKI KX 250cc — 1992
• KAWASAKI KXF A1 A2 TECATE 4 250cc — 1987
• KAWASAKI KX 250cc — 1983–1984
• KAWASAKI KXF A1 A2 TECATE 4 250cc — 1988
• KAWASAKI KX 250cc — 1978–2008
• KAWASAKI KXF A1 A2 TECATE 4 250cc — 1987–1988
• KAWASAKI KX 250cc — 1981
• KAWASAKI KX 250cc — 1980

Match your exact make, model, year and specification before ordering.
