Connecting Rod 78-08 KX250, Psychic MX-09033 Kawasaki

Connecting Rod 78-08 KX250, Psychic MX-09033 Kawasaki. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 78-08 KX250, Psychic MX-09033 Kawasaki
• Part number: 56-110.DR
• Brand: Psychic
• CONNECTING ROD REBUILD KIT PSYCHIC MX-09033
• KX250 1978 - 2008

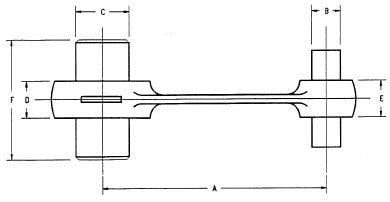

• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 125, B = 18, C = 24, D = 20, E = 22, F = 58.5
• ROD Center-Center 125.00mm
• Small end EYE 18/22mm
• WIDTH 20.00mm
• Crank Pin 24.00 x 58mm Long
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 125
• Small End Bearing
• 18x22x23.5
• Small End Bore Ø
• 22
• Small End Width
• Big End Bearing
• 24x32x19.8
• Big End Bore Ø
• 32
• Big End Width
• 20
• Big End Pin Ø
• 24
• Big End Pin Length
• 58.5
• Washer Thickness
• 24x42x1.0
• Part No. 56-110.DR (Distributed www.fdyperformance.com)
• RK-5207, 13032-1279, 13044-5056, PSYCHIC MX-09033, PROX 03.4309, WOSSNER P2022, HOTROD 8108, ATHENA P40321034,

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KDX 250cc — 1991–1994
• KAWASAKI KDX 250cc — 1990–1994
• KAWASAKI KX 250cc — 2004–2008
• KAWASAKI KX 250cc — 1978–2008
• KAWASAKI KXF A1 A2 TECATE 4 250cc — 1987–1988

Match your exact make, model, year and specification before ordering.
