Hot Rods Connecting Rod 98-06 KTM125, Hotrod 8627 KTM125 SX/Exc

Hot Rods Connecting Rod 98-06 KTM125, Hotrod 8627 KTM125 SX/Exc. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 98-06 KTM125, Hotrod 8627 KTM125 SX/Exc
• Part number: 56-112.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for maximum strength and durability.
• Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for added strength and reliability.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for increased lubricity.

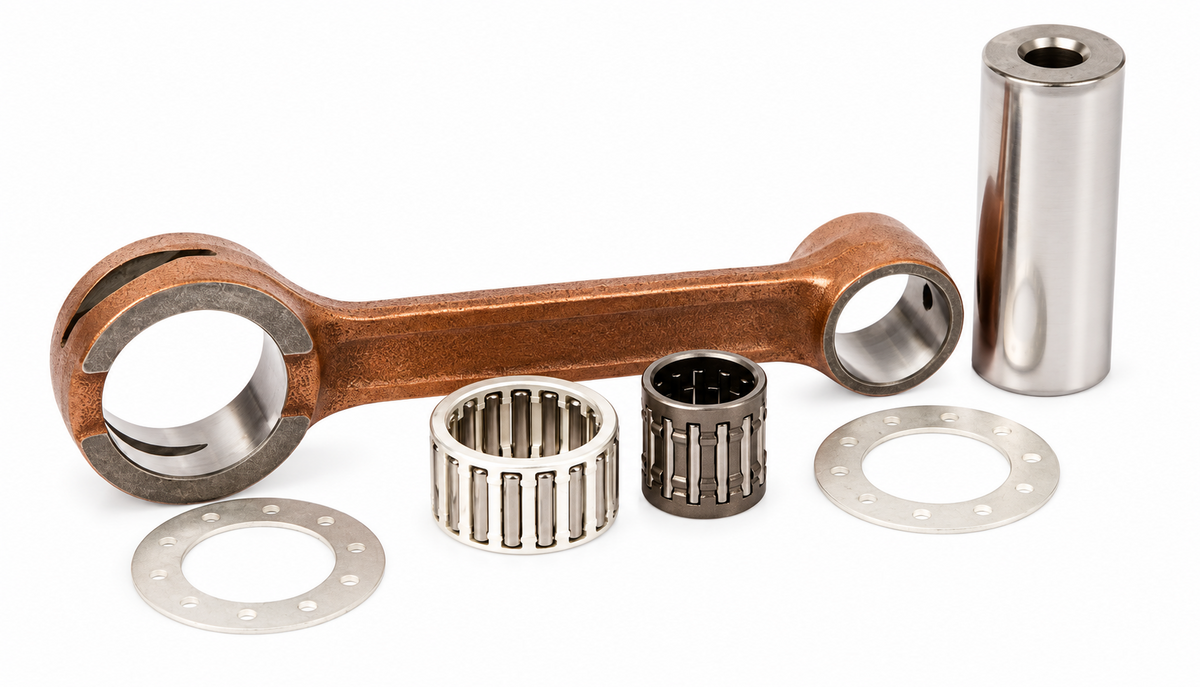

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Specifications (Dimensions in mm):
• A (Center-to-Center Length): 110.00
• B (Big End Bore Diameter): 28.00
• C (Big End Width): N/A
• D (Small End Bore Diameter): 19.00
• E (Small End Width): N/A
• F (Pin Length): 54.80
• Washer Thickness: 1.00

Vehicle fitment

Applications listed in the supplier fitment data:

• KTM SX 125cc — 1998–2006
• HUSQVARNA TC 125cc — 2014
• KTM EXC 125cc — 1998–2006
• HUSQVARNA TE 125cc — 2014

Match your exact make, model, year and specification before ordering.
