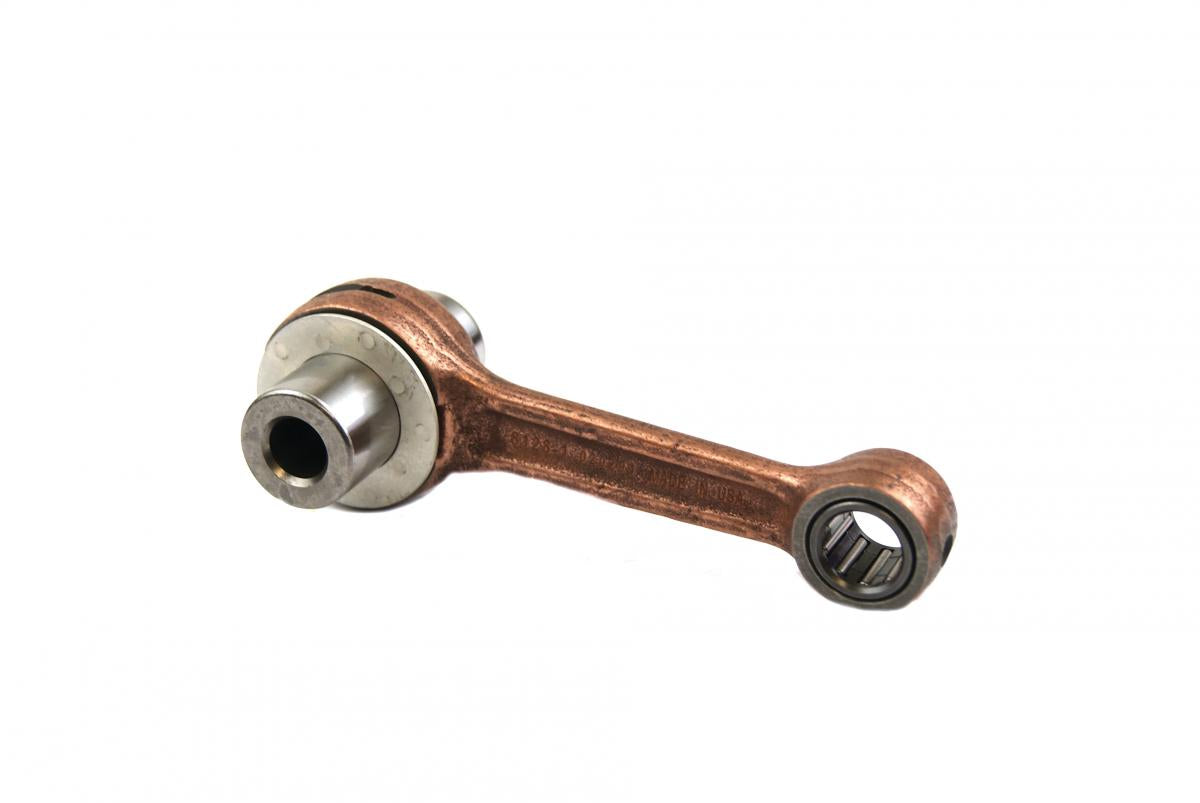

Hot Rods Connecting Rod 84-18 KX 60/65, Hotrods 8128

Hot Rods Connecting Rod 84-18 KX 60/65, Hotrods 8128. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 84-18 KX 60/65, Hotrods 8128
• Part number: 56-114.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength.
• Advanced design with side scalloping and vent slots minimizes high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional accuracy.
• Shot-peened and double-honed for superior durability under extreme loads.
• Small ends are double-drilled for enhanced lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings provide added lubricity.

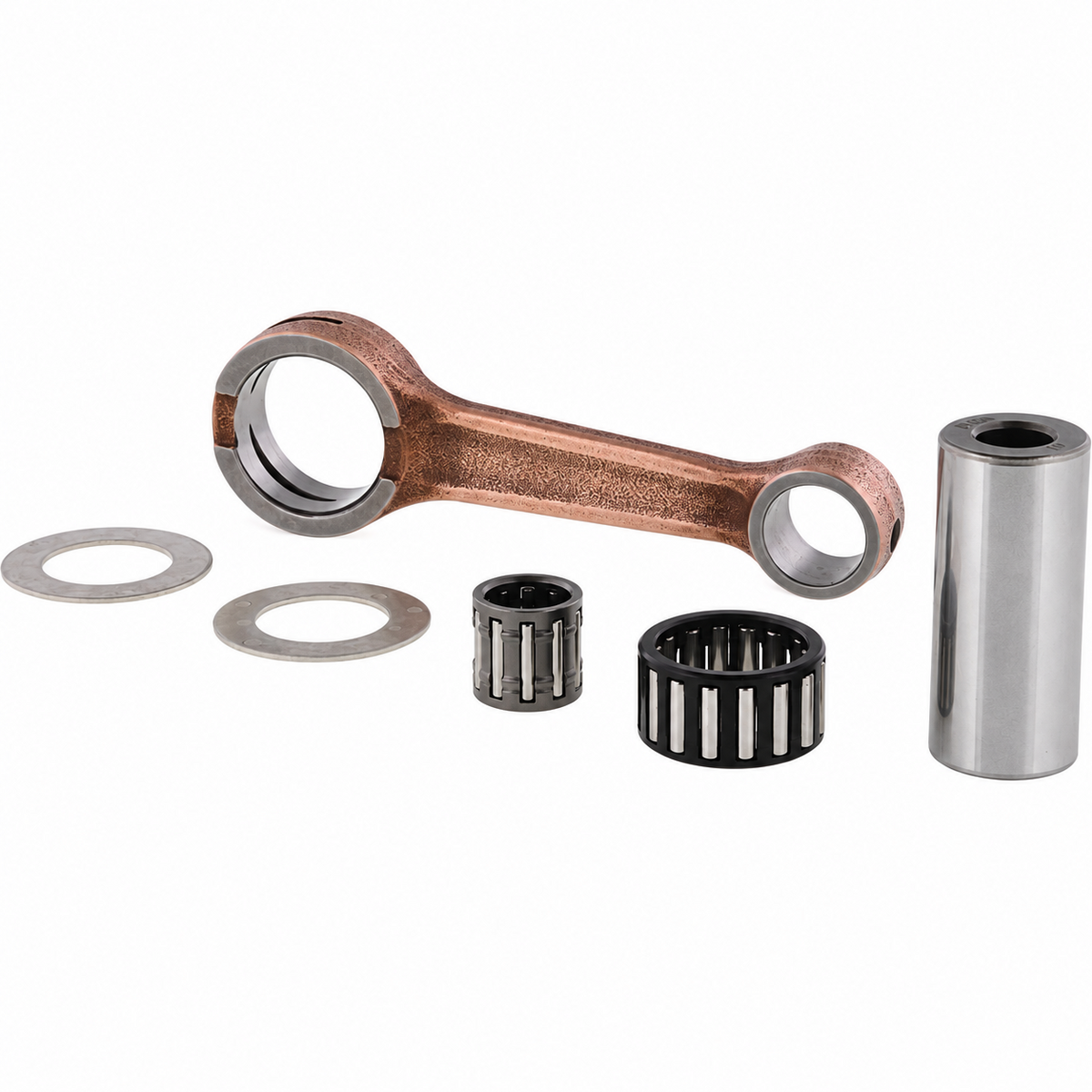

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.

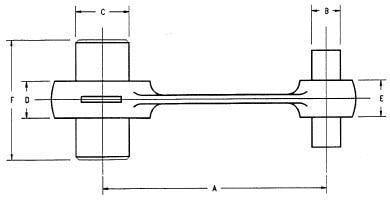

• Technical Specifications:
• Big End Bore: 26.00 mm
• Center to Center: 85.00 mm
• Pin Diameter: 20.00 mm
• Pin Length: 45.80 mm
• Small End Bore: 16.00 mm
• Washer Thickness: 1.00 mm
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 60cc — 2003
• SUZUKI RM 65cc — 2003–2005
• KAWASAKI KX 65cc — 2000–2021
• KAWASAKI KX 65cc — 2000–2020
• KAWASAKI KX 65cc — 2000–2017
• KAWASAKI KX 65cc — 2000–2015
• KAWASAKI KX 60cc — 1984–2003
• KAWASAKI KX 60cc — 1985–2004
• KAWASAKI KX 60cc — 1985–2000
• KAWASAKI KX 60cc — 1984–2000
• KAWASAKI KX 60cc — 1983–2016
• KAWASAKI KX 60cc — 1983–2018
• KAWASAKI KX 60cc — 1984–2020
• KAWASAKI KX 65cc — 1983–2016
• KAWASAKI KX 65cc — 1983–2018
• KAWASAKI KX 65cc — 1984–2020

Match your exact make, model, year and specification before ordering.
