Namura Technologies Connecting Rod 84-18 KX 60 65, RX-20001 MX-09026 Kit RM60/65 RX-20001

Namura Technologies Connecting Rod 84-18 KX 60 65, RX-20001 MX-09026 Kit RM60/65 RX-20001. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 84-18 KX 60 65, RX-20001 MX-09026 Kit RM60/65 RX-20001
• Part number: 56-114.NM
• Brand: Namura Technologies
• Connecting rod rebuild kit for small-bore two-stroke engines, suitable for Kawasaki KX60/KX65 and Suzuki RM60/RM65 applications. Designed as a heavy-duty OE replacement, it incorporates design elements for high-rpm reliability and is supplied as a complete assembly with rod, crankpin, bearings, and thrust washers. Part number: MX-09026.
• Heavy-duty OE replacement connecting rod
• Uniquely designed big end with strategically located side-scalloping vent slots to minimise high-rpm bearing race distortion
• Uses the latest caged needle roller bearing designs for high-rpm longevity
• Part number: MX-09026

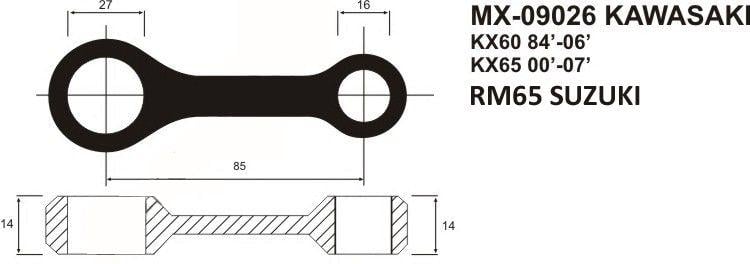

• Dimensions (mm): A = 85, B = 12, C = 20, D = 14, E = 14, F = 46
• Rod material: Certified chrome steel for strength
• Crankpins: Hot-rolled ASTM 4115, case hardened
• Thrust washers: Bronze phosphor, silver coated
• Kit contents: Connecting rod, crankpin, crankpin bearing, top end bearing, thrust washers
• Cross-Reference OEM Part Numbers
• 13032-1246
• MX-09026
• Vehicle Fitments
• Kawasaki KX60 / KX65 (1984–2018; also listed as 1985–2018)
• Suzuki RM60 / RM65

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
