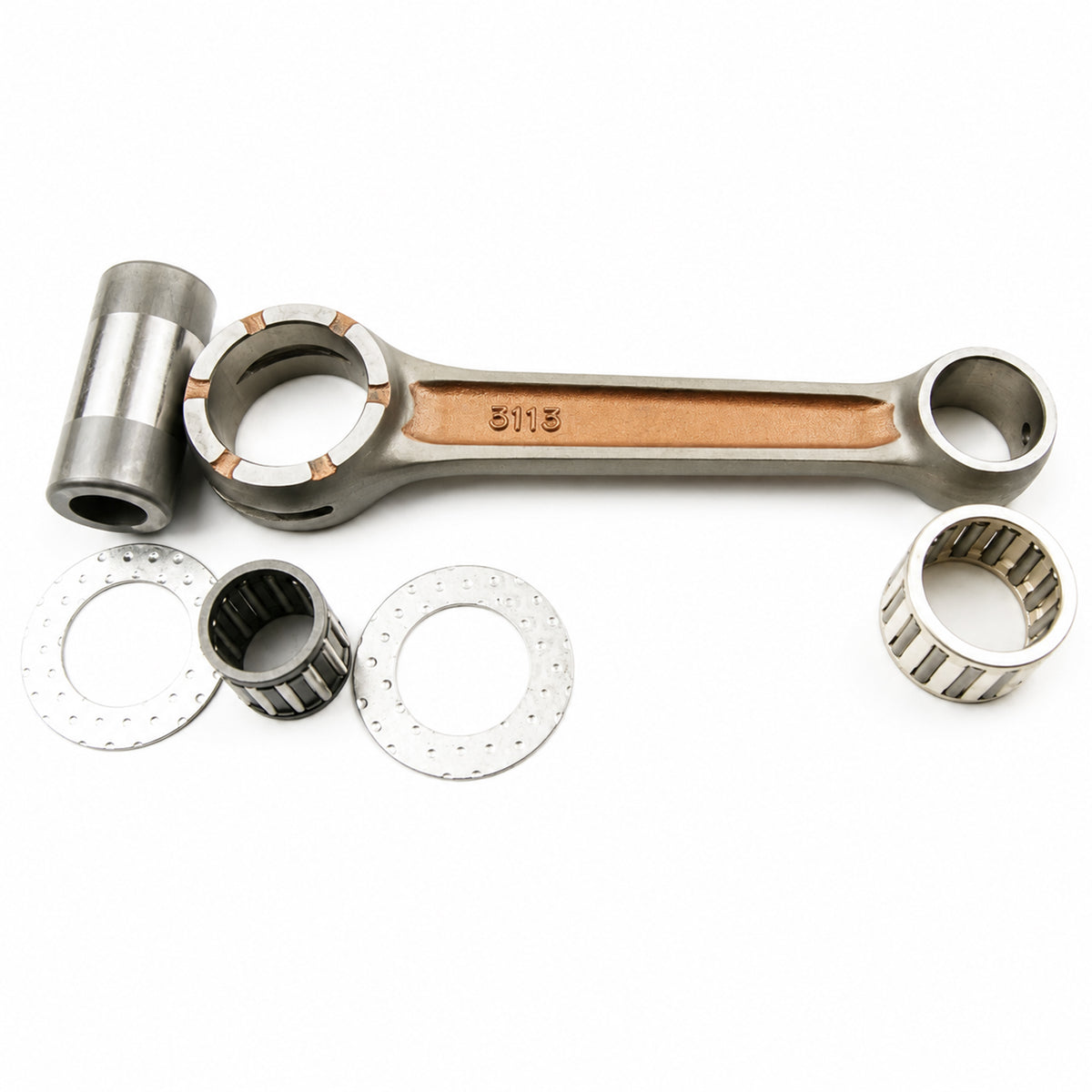

Namura Technologies Connecting Rod 83-04 KX500, Namura RX-20009 / MX-09034 Kawasaki, MX-09034 RX-20009

Namura Technologies Connecting Rod 83-04 KX500, Namura RX-20009 / MX-09034 Kawasaki, MX-09034 RX-20009. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 83-04 KX500, Namura RX-20009 / MX-09034 Kawasaki, MX-09034 RX-20009
• Part number: 56-115.NM
• Brand: Namura Technologies
• CONNECTING ROD REBUILD KIT NAMURA RX-20009
• KAWASAKI
• KX500 1983-2004,
• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 145, B = 19, C = 26, D = 22, E = 22, F = 54.5
• Center-Center 145mm.
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• 13032-1184, KAWASAKI: 13044-4077, KAWASAKI: 13044-5048, KAWASAKI: 13044-5072 56-115.DR
• KAWASAKI: 13044-5076, KAWASAKI: 13044-5077, HOTRODS 8148, WOSSNER P2039 ,
• S/SEED FROM 56-115.DR TO 56-115.NM

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
