Hot Rods Connecting Rod KDX200, KX125, Hotrods 8129 Kawasaki KDX220

Hot Rods Connecting Rod KDX200, KX125, Hotrods 8129 Kawasaki KDX220. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod KDX200, KX125, Hotrods 8129 Kawasaki KDX220
• Part number: 56-116.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for maximum strength and durability.
• Advanced design includes side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior resilience under heavy loads.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings provide enhanced lubricity.

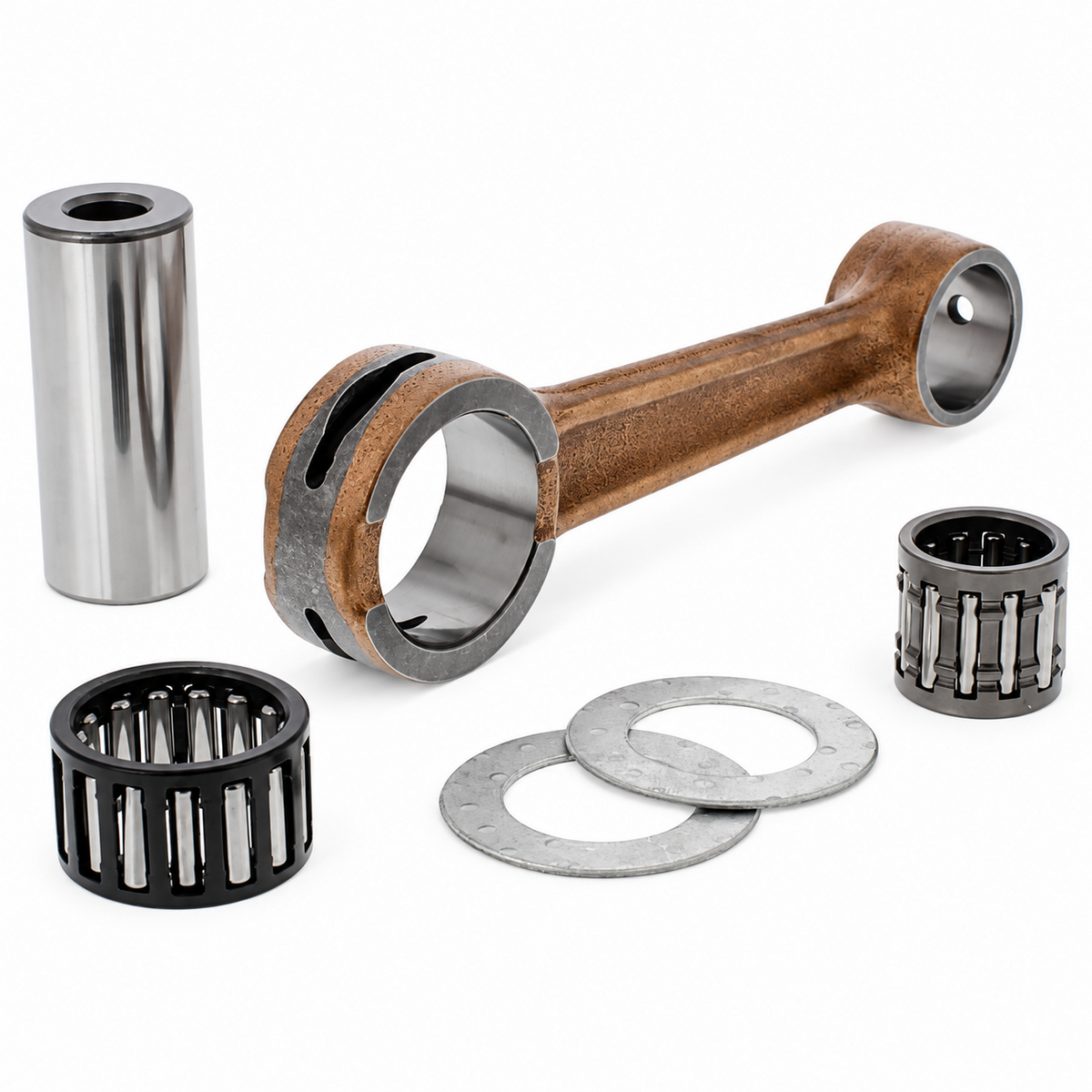

• Kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing Dimensions: 22 x 29 x 16.7 mm
• Big End Bore: 29.00 mm
• Big End Width: 16.90 mm
• Center to Center Length: 109.00 mm
• Pin Diameter: 22.00 mm
• Cross-Reference OEM Part Numbers:
• Hot Rods: 8129
• Wossner: P2033
• Wiseco: WPR131
• Psychic: MX-09031

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KDX 200cc — 1989–2005
• KAWASAKI KDX 200cc — 1989–2006
• KAWASAKI KDX 220cc — 1997–2005
• KAWASAKI KDX 220cc — 1998–2005
• KAWASAKI KX 125cc — 1988–1991
• KAWASAKI KDX 200cc — 1997–2005
• KAWASAKI KDX 125cc — 1988–1991
• KAWASAKI KDX 200cc — 1988–2006
• KAWASAKI KDX 220cc — 1988–2005

Match your exact make, model, year and specification before ordering.
