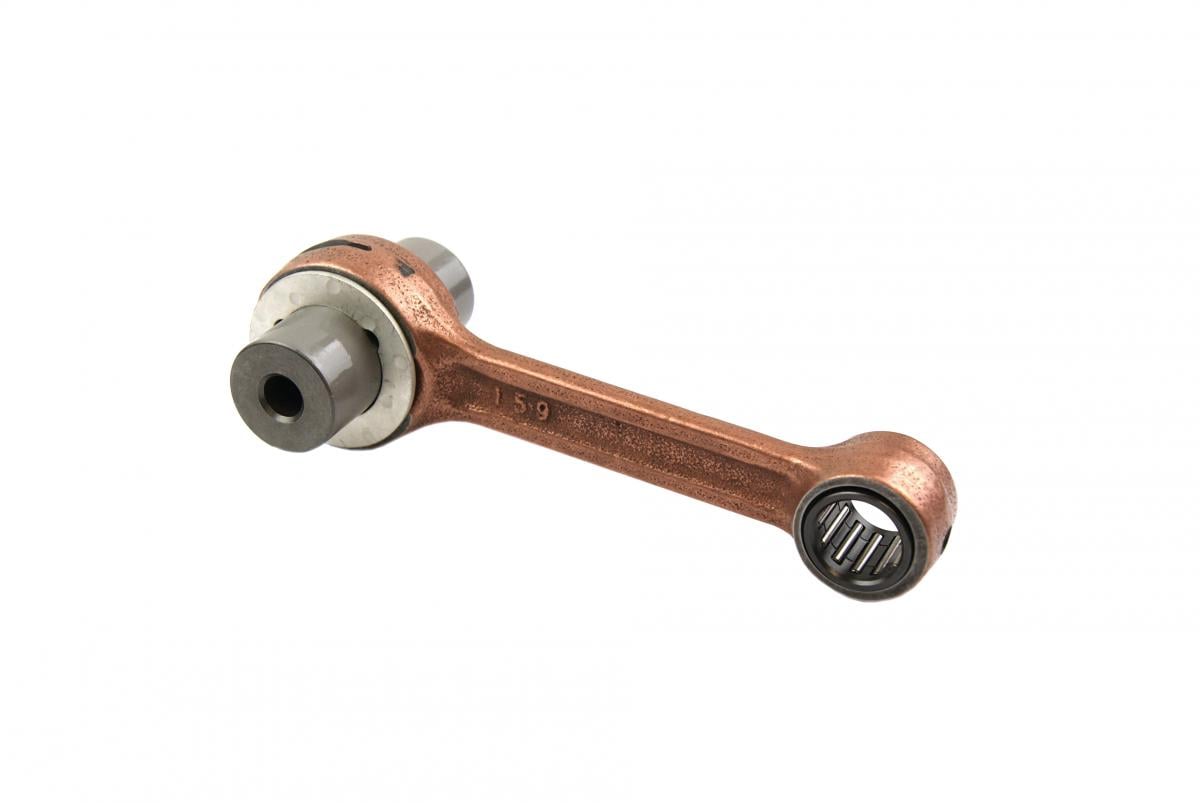

Connecting Rod 99-03 RM125, Hot Rods 8159 Repair Kit

Connecting Rod 99-03 RM125, Hot Rods 8159 Repair Kit. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 99-03 RM125, Hot Rods 8159 Repair Kit
• Part number: 56-117_HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for exceptional strength.
• Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods enhance grain flow and dimensional consistency.
• Shot-peened and double-honed for maximum durability under heavy loads.
• Small ends are double-drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for added lubricity.

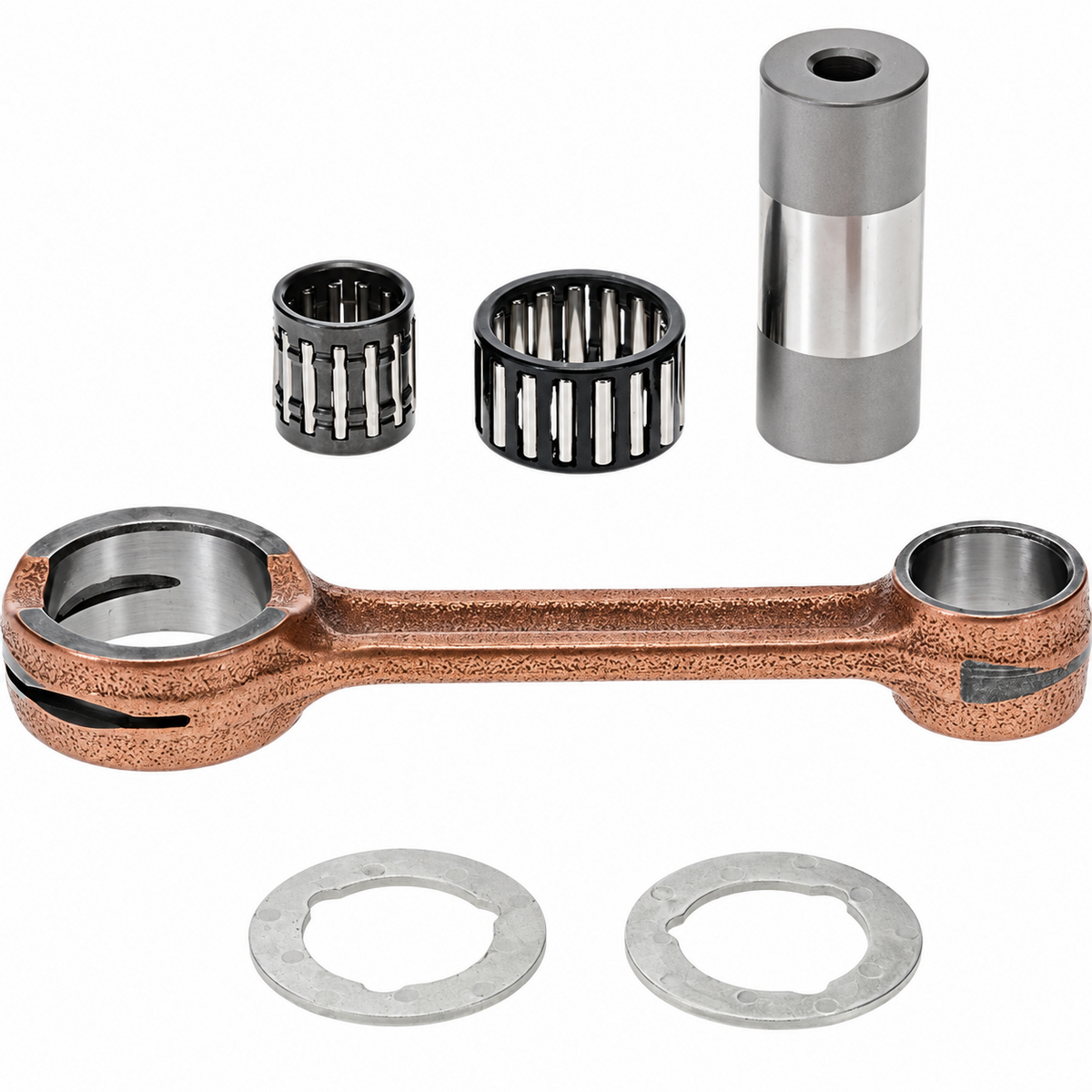

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Technical Specifications:
• Center to Center Length: 102 mm
• Small End Bearing Dimensions: 15 x 19 x 20 mm
• Small End Bore Diameter: 19 mm
• Small End Width: 17.90 mm
• Big End Bearing Dimensions: 22 x 28 x 16 mm
• Big End Bore Diameter: 28 mm
• Big End Width: 15.90 mm
• Big End Pin Diameter: 22 mm
• Big End Pin Length: 52.90 mm
• Washer Dimensions: 22 x 42 x 1 mm
• Cross-Reference OEM Part Numbers:
• Hot Rods: 8159
• Wossner: P2013
• Wiseco: WPR177
• Psychic: MX-09057

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 125cc — 1999–2003

Match your exact make, model, year and specification before ordering.
