Namura Technologies Connecting Rod 99-00 RM125, Namura RX-30006 / MX-09057 Repair Kit

Namura Technologies Connecting Rod 99-00 RM125, Namura RX-30006 / MX-09057 Repair Kit. Find the product specifications and compatibility information below.

Product details

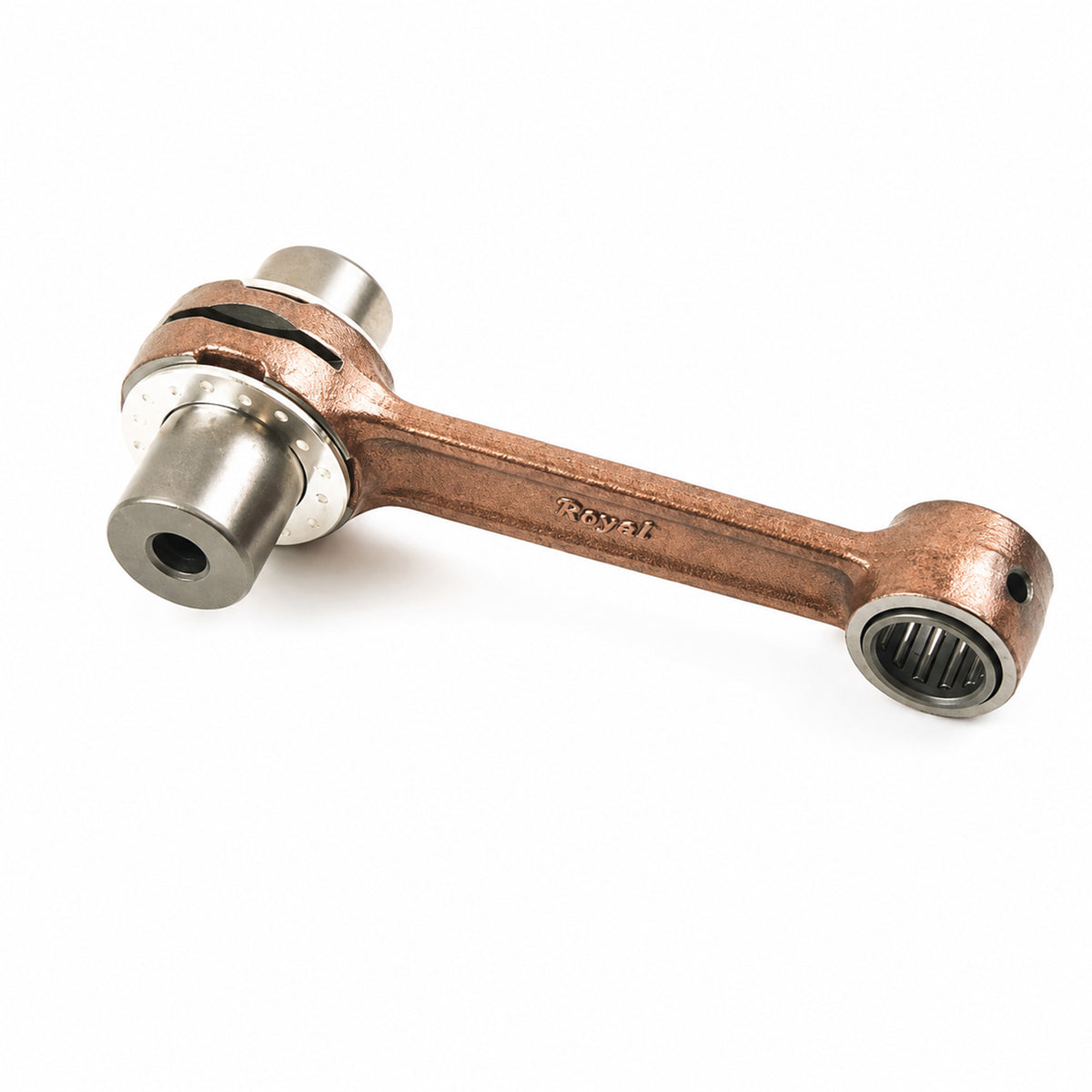

• Product: Connecting Rod 99-00 RM125, Namura RX-30006 / MX-09057 Repair Kit
• Part number: 56-117.NM
• Brand: Namura Technologies
• SUZUKI
• RM125 1999-2003,
• CONNECTING ROD REBUILD KIT NAMURA MX-09057
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• MM
• Centre 2 Centre
• 102
• Small End Bearing
• 15x19x20
• Small End Bore Ø
• 19
• Small End Width
• 17.90
• Big End Bearing
• 22x28x16
• Big End Bore Ø
• 28
• Big End Width
• 15.90
• Big End Pin Ø
• 22
• Big End Pin Length
• 52.90
• Washer Thickness
• 22x42X1
• Part No. 56-117.DR (www.fdyperformance.com)
• RS-3203, 12161-43D00, HOT RODS 8159, WOSSNER P2013, WISECO WPR177, PSYCHIC MX-09057, PROX 03.3219
• Big End Bearing (mm): 22x28x16
• Big End Bore (mm): 28.00
• Big End Width (mm): 15.90
• Center To Center (mm): 102.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 52.90
• Small End Bearing (mm): 15x19x20
• Small End Bore (mm): 19.00
• Small End Width (mm): 17.90SIZE

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
