Hot Rods Connecting Rod 91-01 RM80, Hotrods 8127 Suzuki CR136

Hot Rods Connecting Rod 91-01 RM80, Hotrods 8127 Suzuki CR136. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 91-01 RM80, Hotrods 8127 Suzuki CR136
• Part number: 56-141.HR
• Brand: Hot Rods
• Made from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior strength.
• Advanced design with strategically located side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged for improved grain flow and dimensional consistency.
• Shot-peened and double-honed for added strength under heavy loads.
• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for enhanced lubricity.

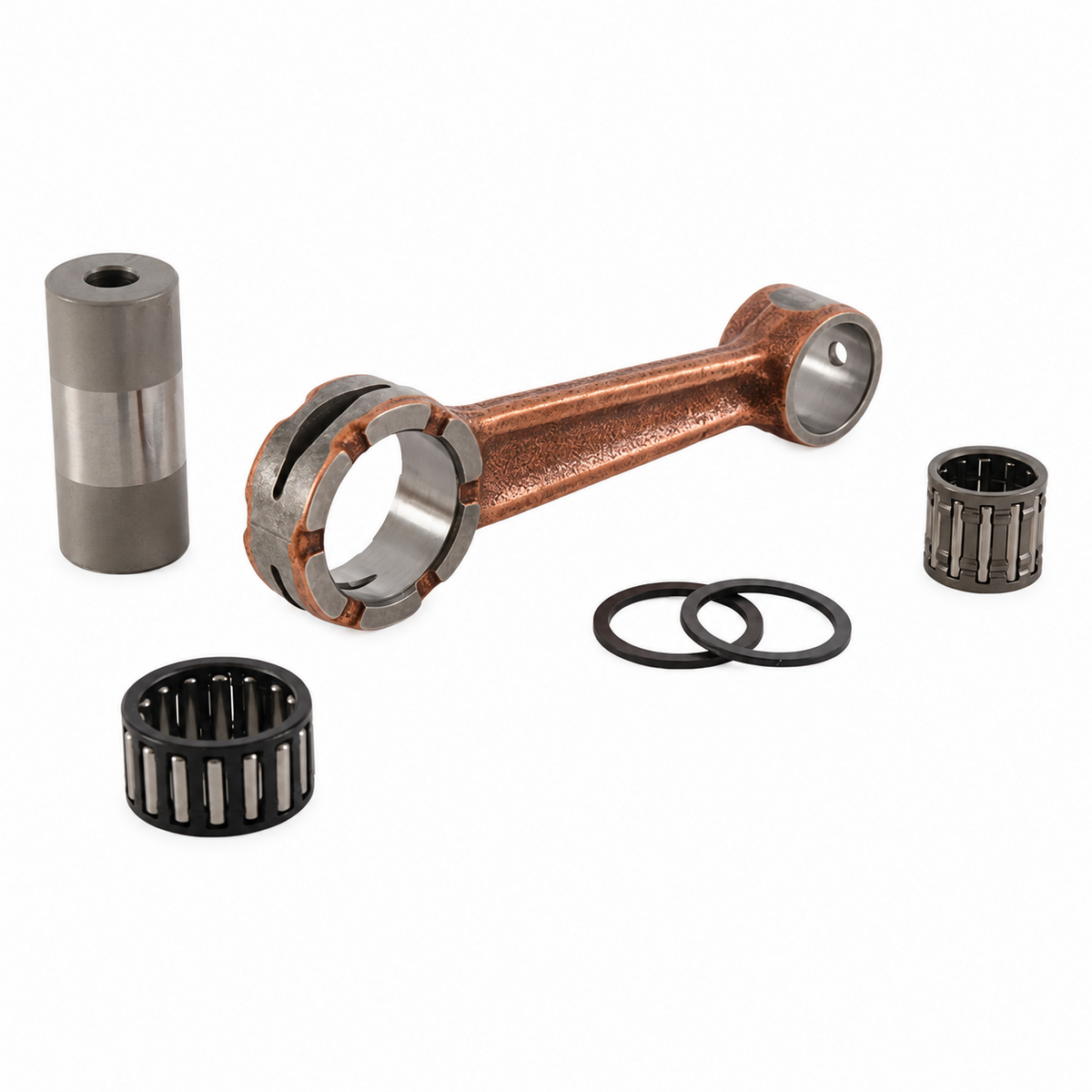

• Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a complete rebuild solution.

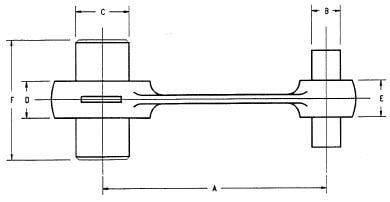

• Specifications (mm):
• Big End Bearing: 20x26x14
• Big End Bore: 26.00
• Big End Width: 14
• Center to Center: 93.50
• Pin Diameter: 20.00
• Pin Length: 44.70
• Small End Bore: 18.00
• Small End Width: [Data missing]
• Washer Thickness: [Data missing]
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI RM 80cc — 1990–2001
• SUZUKI RM 80cc — 1991–2001

Match your exact make, model, year and specification before ordering.
