Namura Technologies Connecting Rod TRX200 ATV, Bronco AT-09135 Conrod Kit

Namura Technologies Connecting Rod TRX200 ATV, Bronco AT-09135 Conrod Kit. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod TRX200 ATV, Bronco AT-09135 Conrod Kit
• Part number: 56-143.DR
• Brand: Namura Technologies
• OE replacement connecting rod.
• Compatible with OE and aftermarket crankshafts.
• Caged needle roller bearing design.

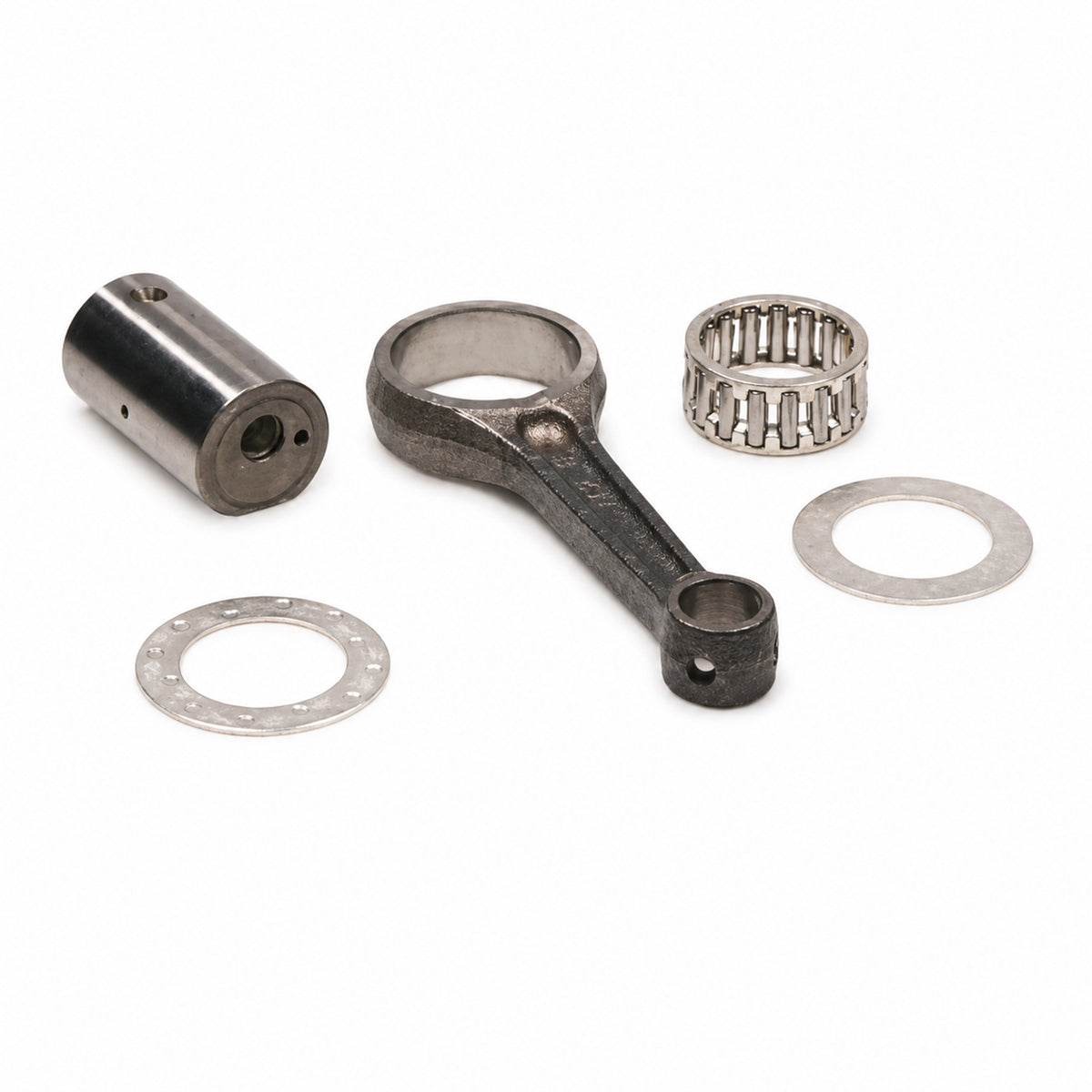

• Kit Contents
• Connecting rod, crankpin and crankpin bearing.
• Thrust washers where required.
• Rod material: SNCM220 steel.
• Crankpin: case-hardened, hot-rolled ASTM steel.
• Thrust washers: silver-coated phosphor bronze.
• Big-end bearing: 30 × 38 × 16 mm.
• Big-end bore: 38.00 mm.
• Big-end width: 16 mm.
• Centre-to-centre length: 103.5 mm.
• Crankpin diameter: 30.00 mm.
• Crankpin length: 53.80 mm.
• Small-end bore: 15.00 mm.
• Small-end width: 16.00 mm.
• Thrust washer dimensions: 30.15 × 46 × 1.0 mm.
• Cross-Reference OEM Part Numbers
• Bronco AT-09135
• 13202-427-300
• 13202-958-300
• 13381-HF1-670
• 91003-437-004
• 91003-440-003
• VA-1012

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA TRX FOURTRAX 200cc — 1991–1997
• HONDA ATC 185cc — 1980–1983
• HONDA TRX SX 200cc — 1986–1988
• HONDA TRX 200cc — 1984
• HONDA ATC SX 200cc — 1981–1985
• HONDA TRX FOURTRAX 200cc — 1990–1993

Match your exact make, model, year and specification before ordering.
