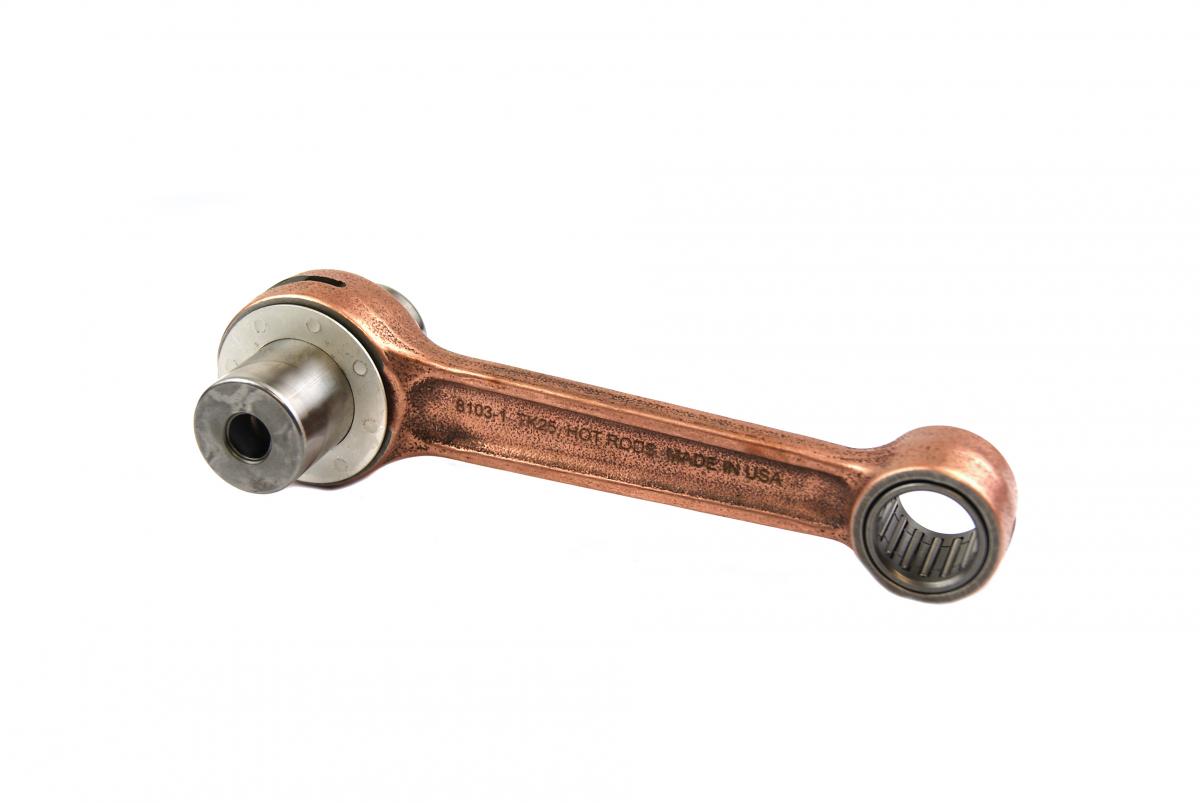

Connecting Rod 81-84 ATC250, Hot Rods 8160 Honda ATV, CR179

Connecting Rod 81-84 ATC250, Hot Rods 8160 Honda ATV, CR179. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 81-84 ATC250, Hot Rods 8160 Honda ATV, CR179
• Part number: 56-148.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior strength.
• Strategically placed side scalloping and vent slots reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and dimensional consistency.
• Shot-peened and double-honed for enhanced strength under heavy loads.
• Double-drilled small ends provide improved lubrication and cooling for the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings enhance lubricity and reduce wear.

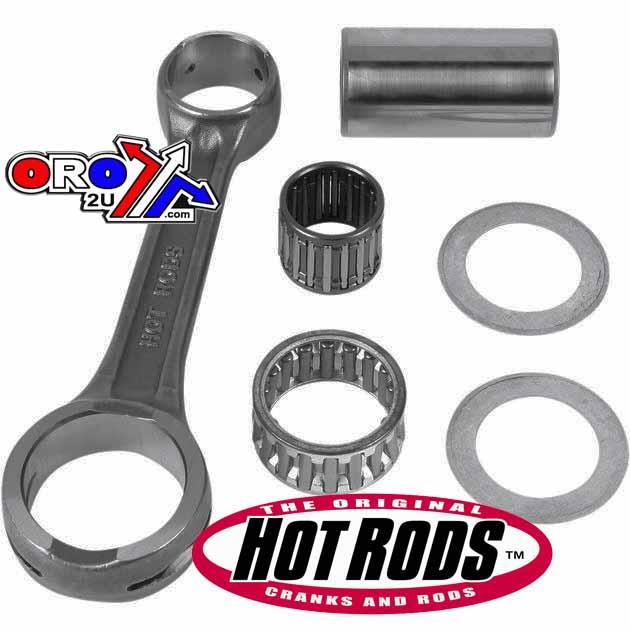

• Complete kit includes all necessary components for a reliable rebuild.
• Specifications (mm):
• Pin Length: 56.30
• Big End Bore: 31.00
• Pin Diameter: 24.00
• Big End Width: 16.90
• Small End Bore: 22.00
• Big End Bearing: 24x31x17
• Small End Width: 19.90
• Center to Center: 125.40
• Washer Thickness: 1
• Small End Bearing: 18x22x22
• Cross-Reference OEM Part Numbers:
• Wossner: P2043
• Vesrah: VA-1006
• Other: CR179

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA ATC R 250cc — 1981–1984

Match your exact make, model, year and specification before ordering.
