Connecting Rod DT250/360, Mazzucchelli BCO0532A, 311-11651-01

Connecting Rod DT250/360, Mazzucchelli BCO0532A, 311-11651-01. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod DT250/360, Mazzucchelli BCO0532A, 311-11651-01
• Part number: 56-154.MA
• Brand: Mazzucchelli
• YAMAHA DT2, RT2 DT250A 1974 / DT360 ,

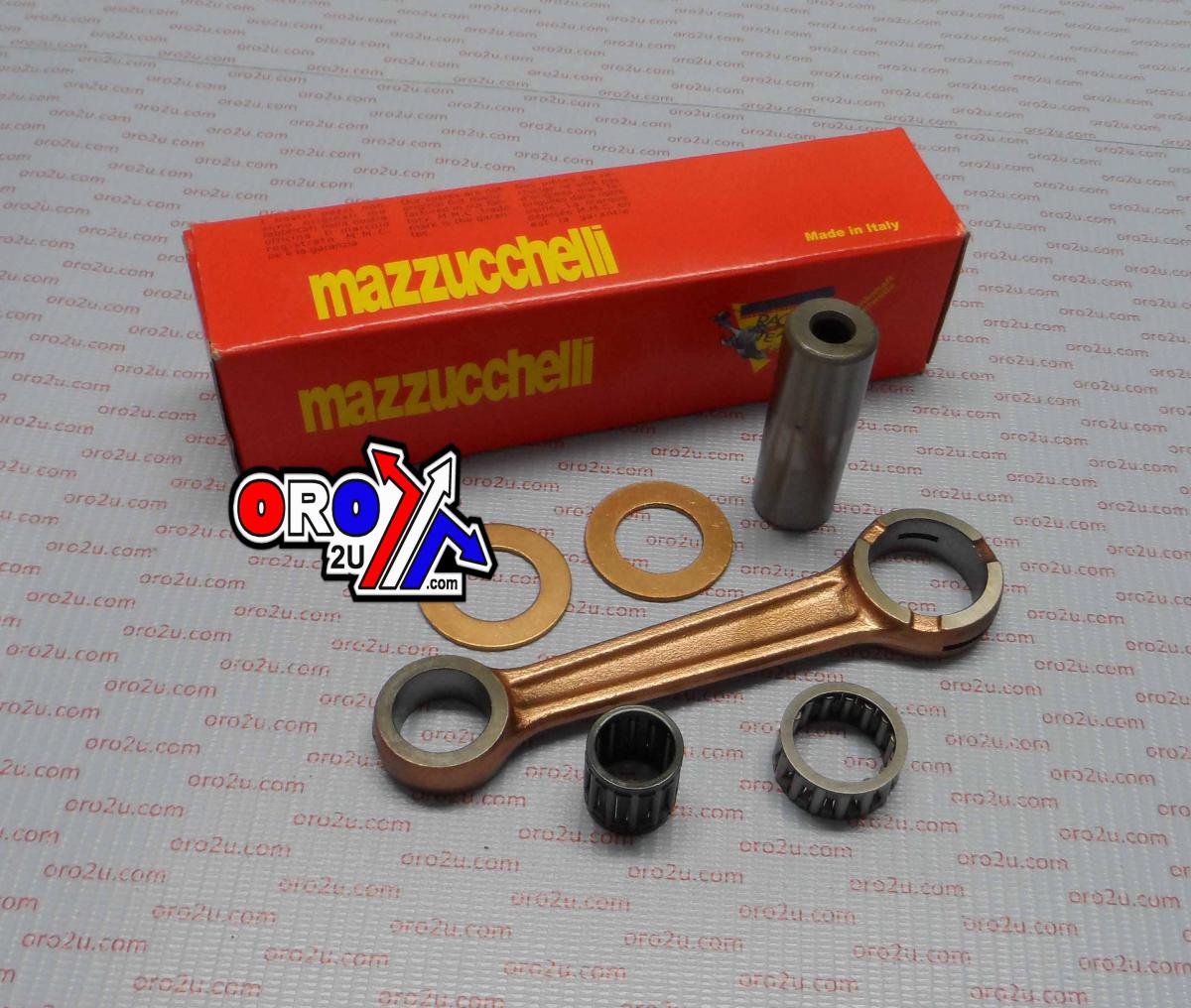

• CONNECTING ROD KIT NOVA MAZZUCCHELLI BCO0532A

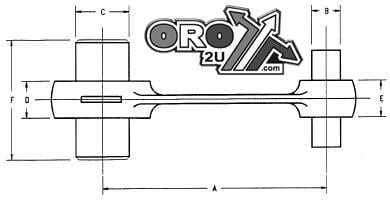

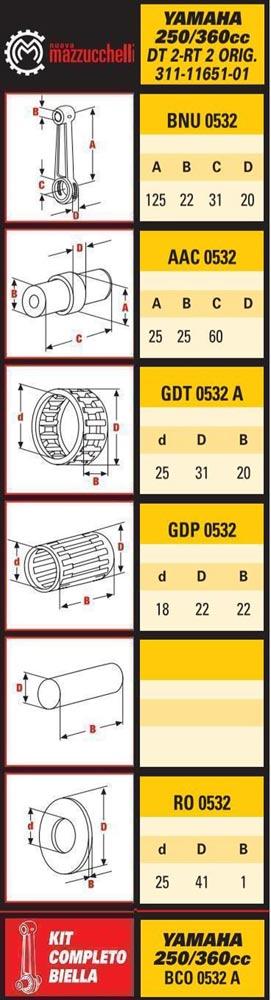

• SEE IMAGE FOR KEY. SIZE. A 125mm, B 18mm, C 25mm, D 20mm, E 20mm, F 60mm
• SIZE
• MM
• Centre 2 Centre
• 125
• Small End Bearing
• 18x22x22
• Small End Bore Ø
• 22
• Small End Width
• 20
• Big End Bearing
• 25x31x20
• Big End Bore Ø
• 31
• Big End Width
• Big End Pin Ø
• 25
• Big End Pin Length
• 60
• Washer Thickness
• 25x41x1
• 311-11651-01
• DT250A 1974 250 DT250 Dual Purpose
• DT2MX 1972 250 DT2MX Dual Purpose
• RT2MX 1972 360 RT2MX Off-Road
• TY250A 1974 250 TY250 Trials
• YAMAHA YZ250 1978-1982 [must also buy 25x63 crank pin] Big End Bearing 25x31x20
• S/SEED FROM 56-931 TO 56-154.MA

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
