Hot Rods Connecting Rod 05-20 YZ125, Hotrods 8718 1C3-11651-00-00, Hotrods 8629

Hot Rods Connecting Rod 05-20 YZ125, Hotrods 8718 1C3-11651-00-00, Hotrods 8629. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 05-20 YZ125, Hotrods 8718 1C3-11651-00-00, Hotrods 8629
• Part number: 56-159.HR
• Brand: Hot Rods
• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for exceptional strength and durability.
• Advanced design includes strategically placed side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for superior strength under heavy loads.
• Small ends are double-drilled to enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings improve lubricity and reduce wear.

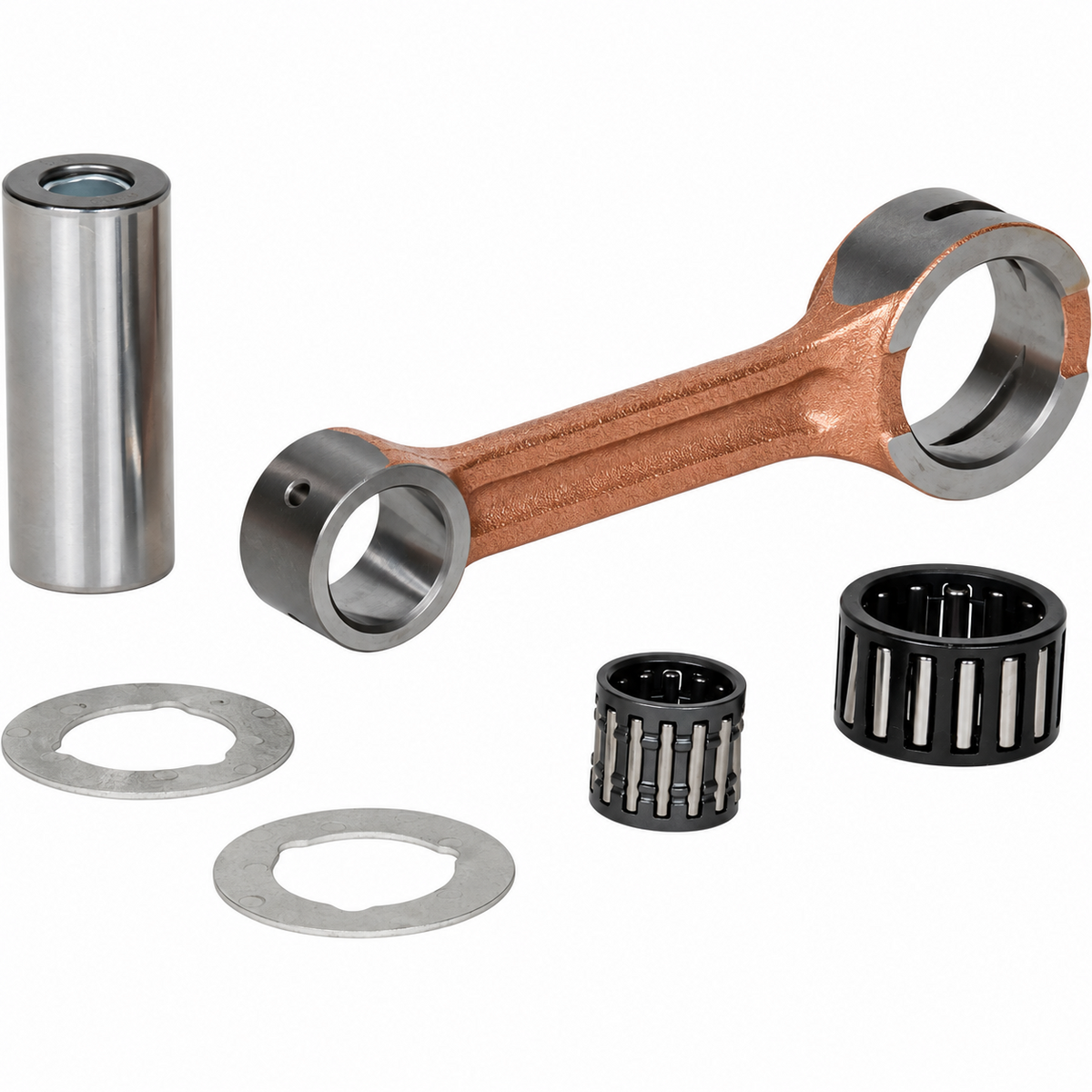

• Includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a comprehensive rebuild.
• Specifications (mm):
• Big End Bearing: 22x29x16.7
• Big End Bore: 29.00
• Big End Width: 16.95
• Center to Center: 102.00
• Pin Diameter: 22.00
• Pin Length: 54.50
• Small End Bearing: 15x19x17.2
• Small End Bore: 19.00
• Small End Width: 16.00
• Cross-Reference OEM Part Numbers:
• Hot Rods: 8718 / 8629
• Wossner: P2018
• Psychic: MX-09084

Vehicle fitment

Applications listed in the supplier fitment data:

• GAS-GAS EC 300cc — 2000–2015
• YAMAHA YZ X 125cc — 2020–2021
• YAMAHA YZ 125cc — 2005–2018
• YAMAHA YZ 125cc — 2005–2021
• YAMAHA YZ 125cc — 2005–2020
• YAMAHA YZ X 125cc — 2020
• YAMAHA YZ 125cc — 2005–2019
• YAMAHA YZ 125cc — 2005–2016
• YAMAHA YZ 125cc — 2005–2015

Match your exact make, model, year and specification before ordering.
