Namura Technologies Connecting Rod 05-19 YZ125, Namura RX-40016 MX-09084 Yamaha MX

Namura Technologies Connecting Rod 05-19 YZ125, Namura RX-40016 MX-09084 Yamaha MX. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 05-19 YZ125, Namura RX-40016 MX-09084 Yamaha MX
• Part number: 56-159.NM
• Brand: Namura Technologies

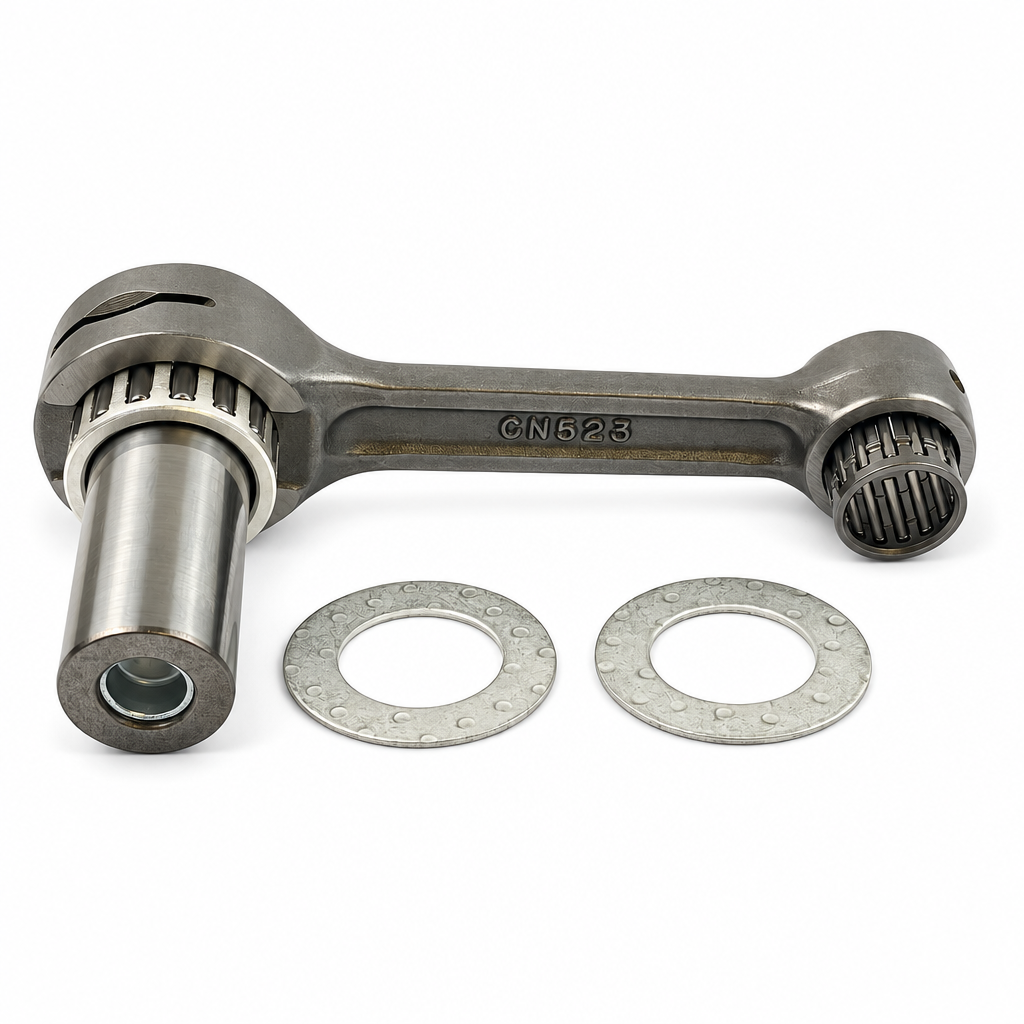

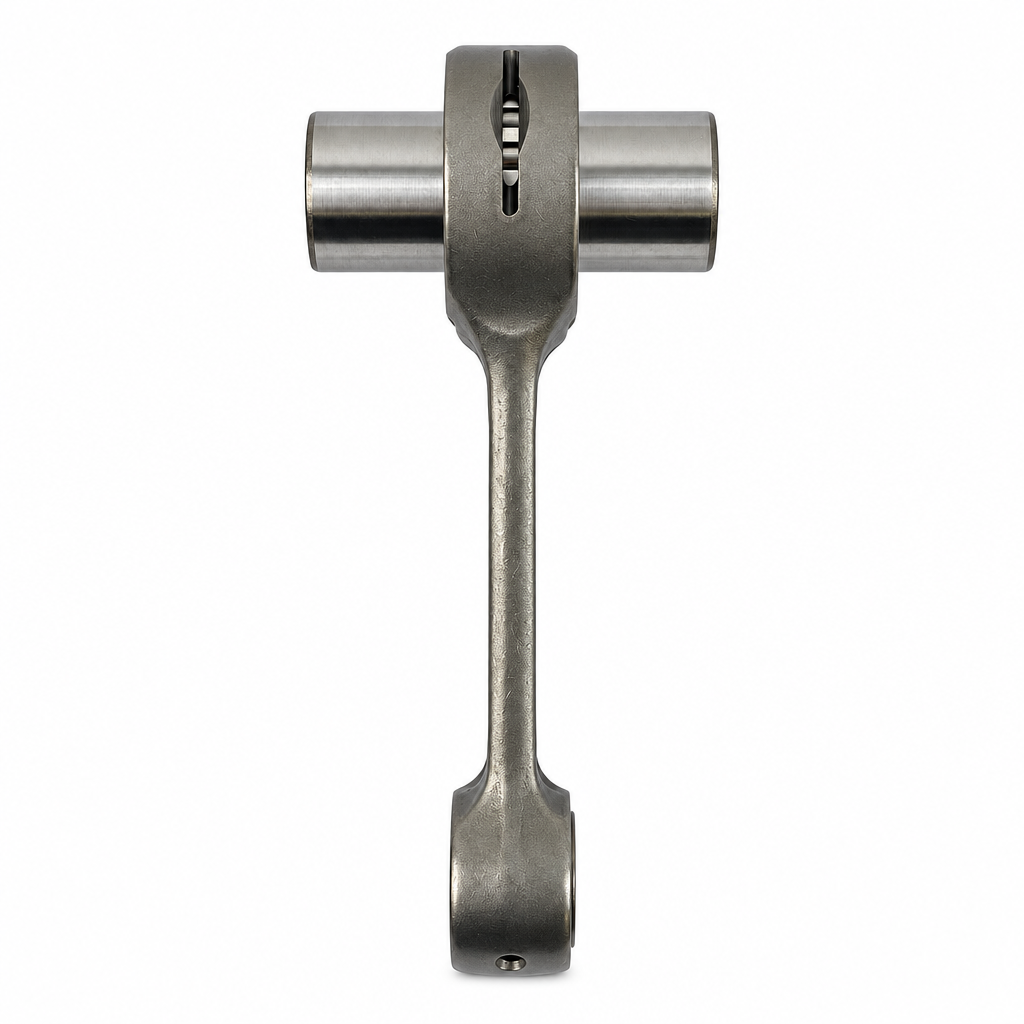

• This connecting rod rebuild kit is a replacement assembly for Yamaha YZ125 models from 2005 to 2019. It is supplied as a complete conrod kit including the rod, crankpin, crankpin bearing, top end bearing and thrust washers where required, and is intended for use with both aftermarket and OE crankshafts.
• Material: SNCM220
• Certified chrome alloy steel rod construction
• Crankpin manufactured from hot-rolled ASTM steel
• Crankpin case hardened
• Thrust washers manufactured from bronze phosphor
• Thrust washers silver coated
• Centre to centre: 102 mm
• Small end bearing: 15 x 19 x 17.2 mm
• Small end bore Ø: 19 mm
• Small end width: 17 mm
• Big end bearing: 22 x 29 x 16.0 mm
• Big end bore Ø: 29 mm
• Big end width: 16 mm
• Big end pin Ø: 22 mm
• Big end pin length: 54.20 mm
• Washer thickness: 22 x 34.5 x 1.50 mm
• Cross-Reference OEM Part Numbers
• RX-40016, MX-09084
• HOT RODS 8629
• WOSSNER P2018
• RY-2205
• 1C3-11650-00-00, 1C3-11651-00-00, 3JD-11681-10-00, 90209-22326-00, 93310-52238-00, 93310-21510-00, 1C3-11651-00-00M
• Vehicle Fitments
• Yamaha YZ125 (2005-2019)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
