Connecting Rod 02-07 CR250R, Hot Rods 8608 Honda MX

Connecting Rod 02-07 CR250R, Hot Rods 8608 Honda MX. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 02-07 CR250R, Hot Rods 8608 Honda MX
• Part number: 56-169.HR
• Brand: Hot Rods
• Constructed from hot-rolled ASTM 4115 steel and case-hardened to 58–62 Rc for superior strength and longevity.
• Advanced design includes side scalloping and vent slots to minimize high RPM bearing race distortion.
• Double-forged rods enhance grain flow and dimensional consistency.
• Shot-peened and double-honed for increased strength under heavy loads.
• Double-drilled small ends provide enhanced lubrication and cooling for the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings improve lubricity and reduce wear.

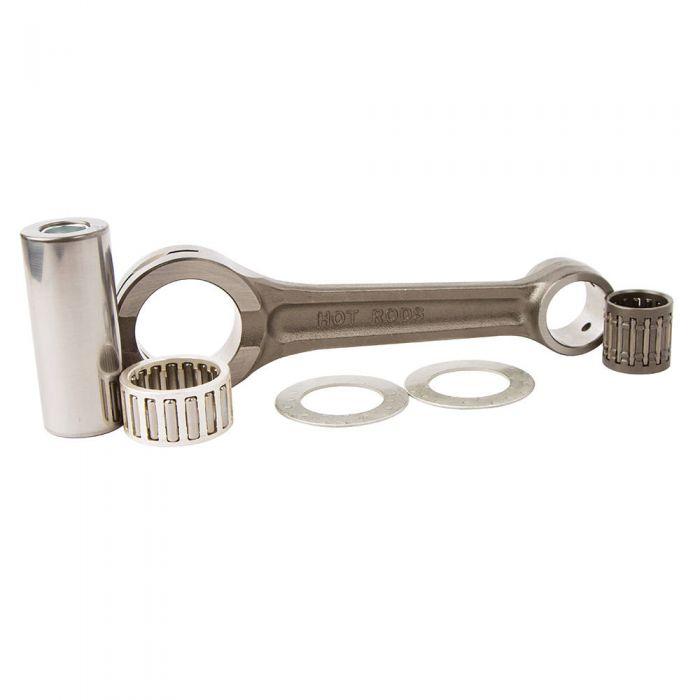

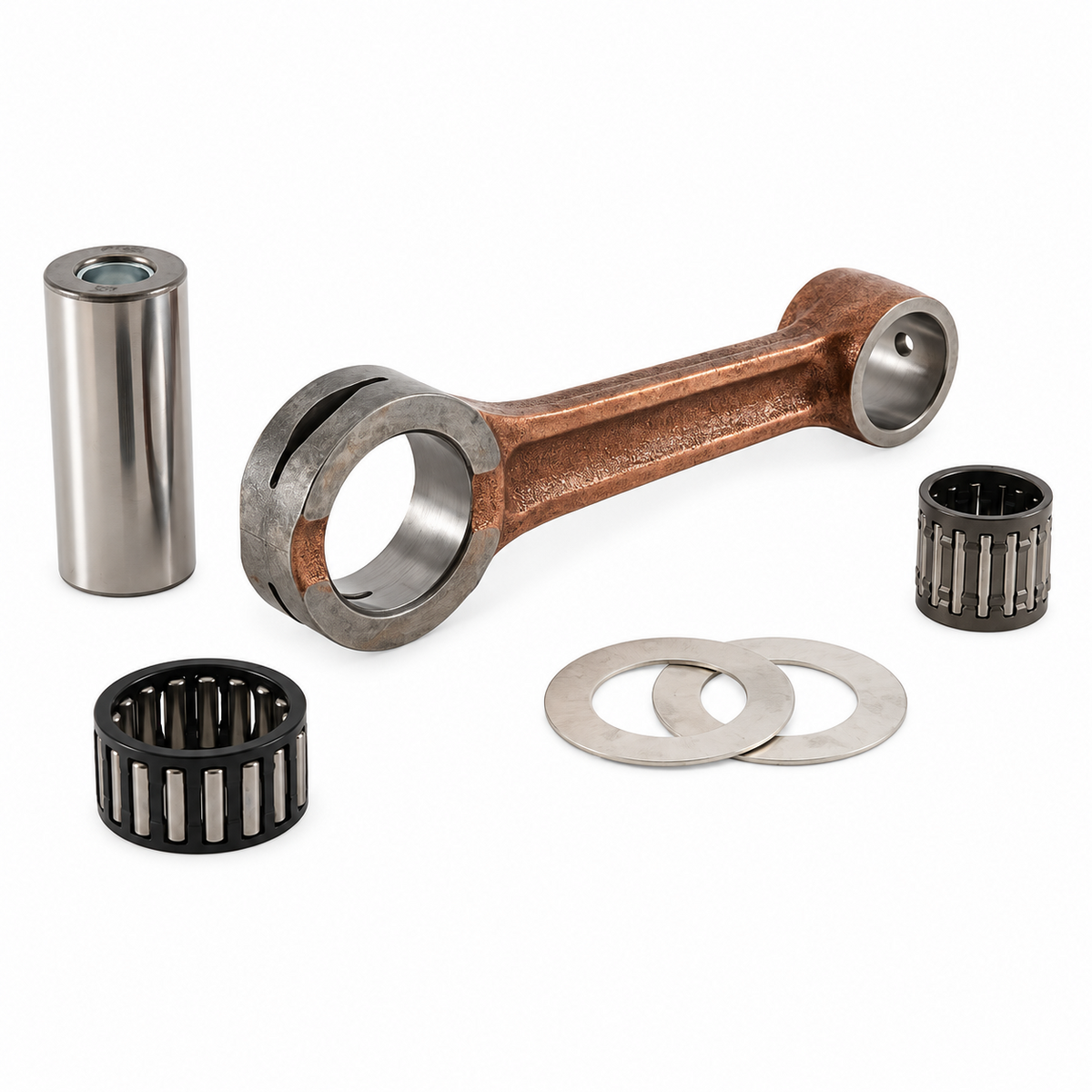

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers for a comprehensive rebuild.
• Specifications (mm):
• Big End Bearing: 25x32x16.3
• Big End Bore: 32.00
• Big End Width: 16.50
• Center to Center: 125.30
• Pin Diameter: 25.00
• Pin Length: 60.00
• Small End Bearing: 18x22x21.7
• Small End Bore: 22.00
• Cross-Reference OEM Part Numbers:
• Hot Rods: 8608
• Wossner: P2020
• Wiseco: WPR187
• Psychic: MX-09009

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CR 250cc — 2002–2007

Match your exact make, model, year and specification before ordering.
