Namura Technologies Connecting Rod 99-08 TRX400EX, Bronco AT-09250 Honda ATV

Namura Technologies Connecting Rod 99-08 TRX400EX, Bronco AT-09250 Honda ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 99-08 TRX400EX, Bronco AT-09250 Honda ATV
• Part number: 56-189.DR
• Brand: Namura Technologies
• TRX400EX 1999-2008,
• TRX400X 2009-2014,
• CB400 Falcon
• NX400 NX4 NX
• XR400
• CB400SS
• CONNECTING ROD REBUILD KIT BRONCO AT-09250,
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

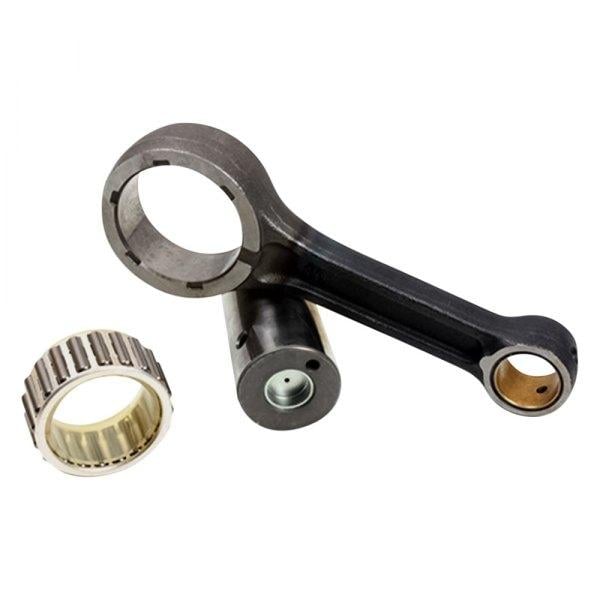

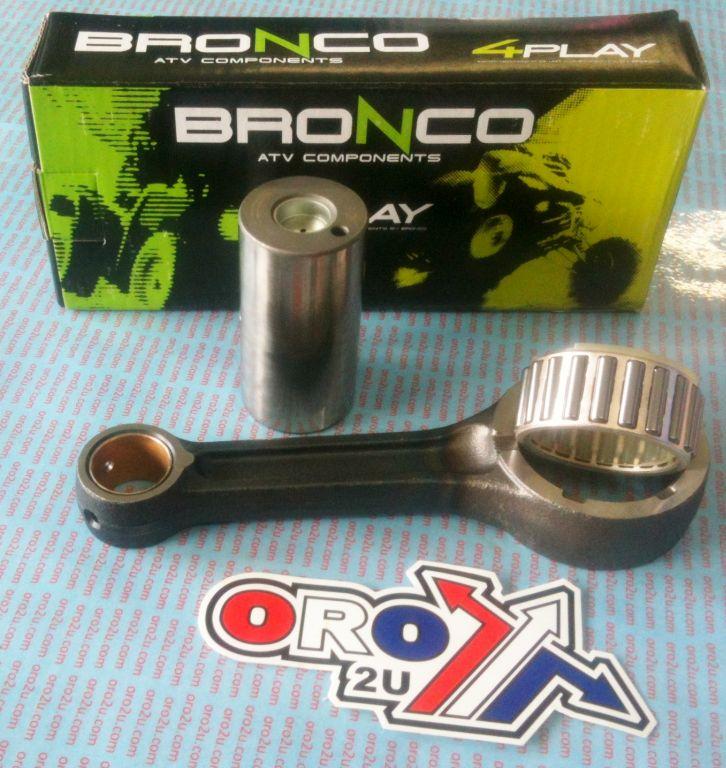

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,

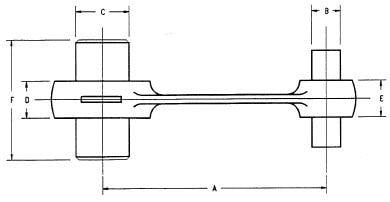

• Center To Center (mm): 122.6
• Big End Bearing (mm): 34x43x20
• Big End Bore (mm): 43
• Big End Width (mm): 21
• Big End Pin Diameter (mm): 34
• Big End Pin Length (mm): 66.2
• Small End Bearing (mm): None.
• Small End Bore (mm): 20
• Small End Width (mm): 19
• Washer Thickness (mm): None.
• Part No. 56-189.DR (www.fdyperformance.com)
• PROX 03.1499,
• 13000-HN1-000 /
• 13000-MBV-730,
• Assemblies where 13000-MBV-730 is used
• 1999 TRX400EXA FOURTRAX 400EX (VIN# 478TE230-XA000001 To 478TE230-XA099999) - Crankshaft + Piston
• 2000 TRX400EXA FOURTRAX 400EX (VIN# 478TE230-Y4000001 To 478TE230-Y4099999) - Crankshaft + Piston
• 2001 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-14100001 To 478TE230-14199999) - Crankshaft + Piston
• 2002 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-24200001 To 478TE230-24299999) - Crankshaft + Piston
• 2003 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-34300001 To 478TE230-34399999) - Crankshaft + Piston
• 2004 TRX400EXA SPORTRAX 400EX (VIN# 478TE230-44400001 To 478TE230-44499999) - Crankshaft + Piston
• 2005 TRX400EXA SPORTRAX 400EX (VIN# 1HFTE230-54500001~) - Crankshaft + Piston
• 2006 TRX400EXA SPORTRAX 400EX (VIN# 1HFTE230-64600001~) - Crankshaft + Piston
• 2007 TRX400EXA TRX400EX (VIN# 1HFTE230-74700001 To 1HFTE230-74799999) - Crankshaft + Piston
• 2008 TRX400EXA TRX400EX (VIN# 1HFTE230-84800001 To 1HFTE230-84899999) - Crankshaft + Piston
• 2009 TRX400X3A TRX400X (VIN# 1HFTE234-94900001 To 1HFTE234-94999999) - Crankshaft + Piston
• 2009 TRX400XA TRX400X (VIN# 1HFTE230-94900001 To 1HFTE230-94999999) - Crankshaft + Piston
• 2012 TRX400XA TRX400X (VIN# 1HFTE230-C4300001 To 1HFTE230-C4399999) - Crankshaft + Piston
• 2013 TRX400XAC TRX400X (VIN# 1HFTE230-D4400001 To 1HFTE230-D4499999) - Crankshaft + Piston
• 2014 TRX400XAC TRX400X (VIN# 1HFTE230-F4600001~) - Crankshaft + Piston

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA TRX X 400cc — 2009–2014
• HONDA TRX EX 400cc — 1999–2008
• HONDA TRX X 400cc — 2009–2013

Match your exact make, model, year and specification before ordering.
