Connecting Rod 87-92 LT500, Hot Rods 8155 Suzuki ATV Kit, CR176-W

Connecting Rod 87-92 LT500, Hot Rods 8155 Suzuki ATV Kit, CR176-W. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 87-92 LT500, Hot Rods 8155 Suzuki ATV Kit, CR176-W
• Part number: 56-191.HR
• Brand: Hot Rods
• Premium Material: Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength.
• Advanced Design: Side scalloping and vent slots minimize bearing race distortion at high RPMs.
• Double-Forged Rods: Improves grain flow and dimensional accuracy for greater reliability.
• Shot-Peened and Double-Honed: Provides exceptional strength under heavy loads.
• Enhanced Lubrication: Double-drilled small ends offer increased lubrication and cooling for the wrist pin bearing, ideal for pistons with crowns close to the bearing.
• Silver-Coated Components: Thrust washers and crank pin bearings feature silver coating for superior lubricity.

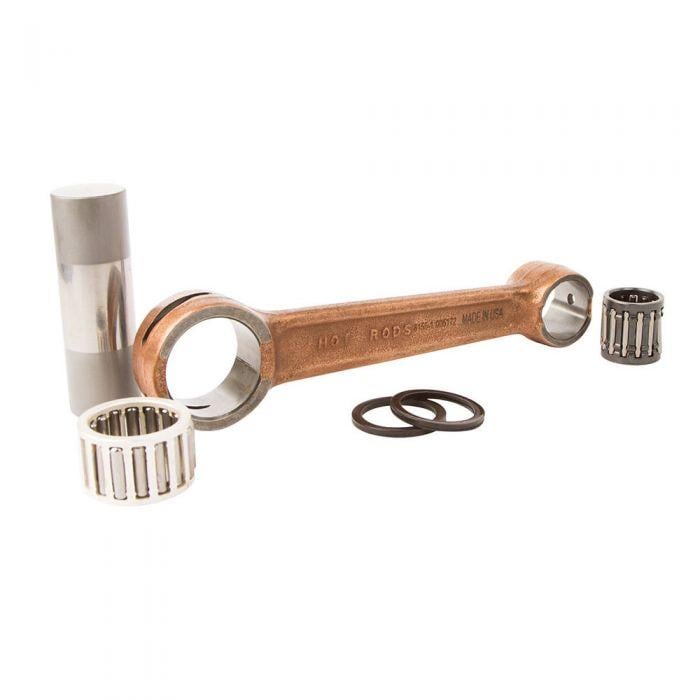

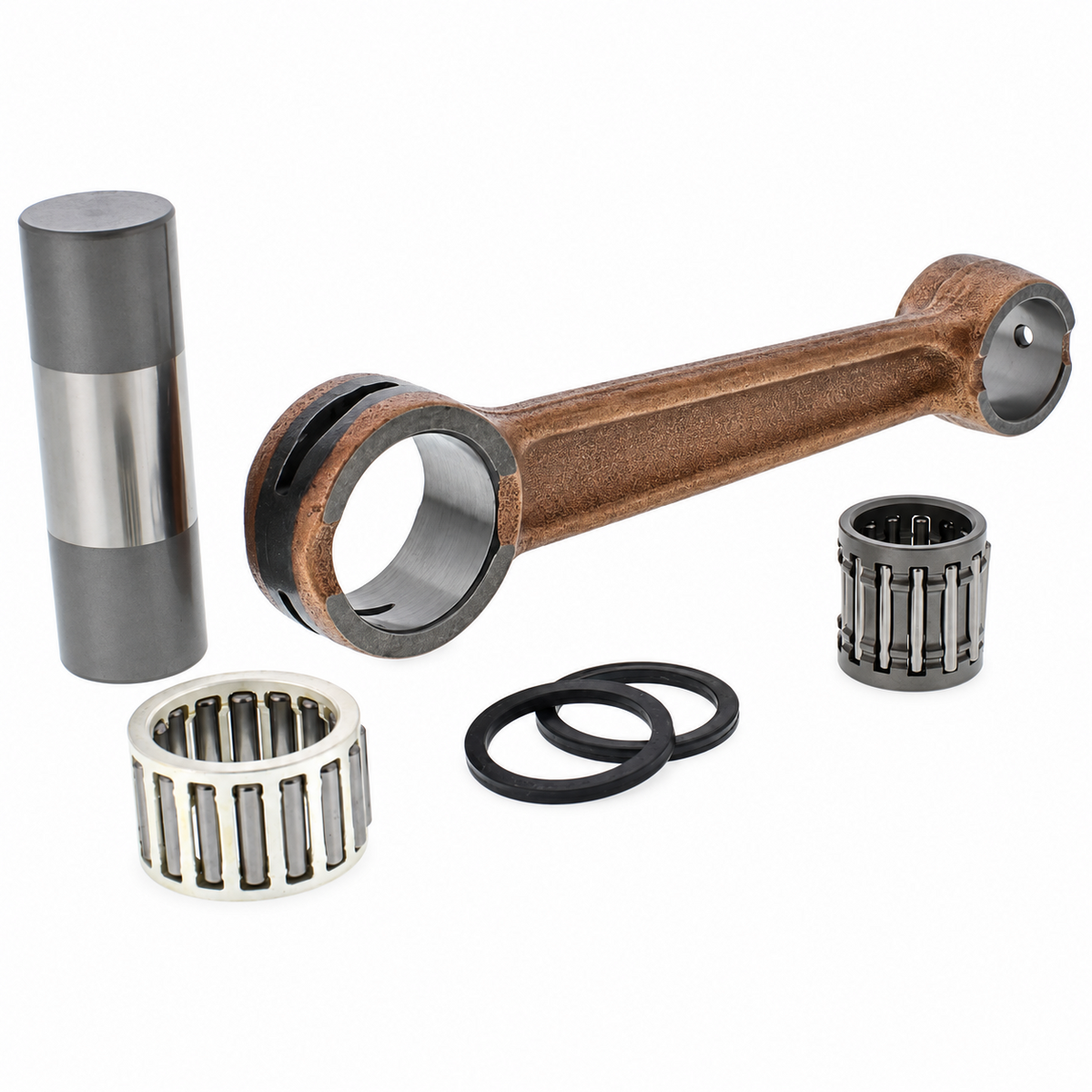

• Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing (mm):
• Big End Bore: 32.00 mm
• Center to Center: 143.00 mm
• Pin Diameter: 24.00 mm
• Pin Length: 73.80 mm
• Small End Bearing (mm):
• Small End Bore: 23.00 mm
• Cross-Reference OEM Part Numbers:
• 12161-43B00
• 12161-43B01
• CR176

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI LT R 500cc — 1987–1990

Match your exact make, model, year and specification before ordering.
