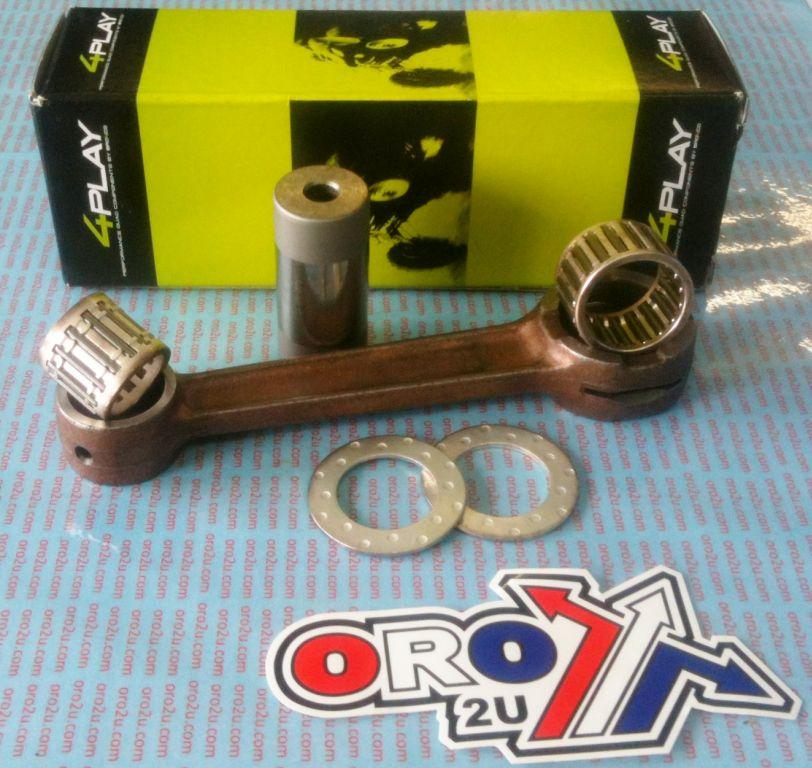

Connecting Rod Kit 87-92 LT250, Psychic AT-95504, 09160-24015

Connecting Rod Kit 87-92 LT250, Psychic AT-95504, 09160-24015. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit 87-92 LT250, Psychic AT-95504, 09160-24015
• Part number: 56-192.DR
• Brand: Psychic
• CONNECING CONROD ROD REBUILD KIT
• PSYCHIC / 4-PLAY / BRONCO AT-95504
• 1987-1992 LT250R Quadracer,
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• Center To Center (mm): 128
• Big End Bearing (mm):
• Big End Bore (mm): 32
• Big End Width (mm):
• Big End Pin Diameter (mm): 24
• Big End Pin Length (mm): 54.50
• Small End Bearing (mm):
• Small End Bore (mm): 23
• Small End Width (mm):
• Washer Thickness (mm):
• Part No. 56-192.DR (www.fdyperformance.com)
• 12211-14301-000, 09160-24015, 12161-00B00 12161-05D00, HOTROD 8164

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI LT QUADRACER 250cc — 1985–1986
• SUZUKI LT QUADRACER 250cc — 1987–1992

Match your exact make, model, year and specification before ordering.
