Hot Rods Connecting Rod Kit YFM350, Hotrod 8605 Yamaha ATV

Hot Rods Connecting Rod Kit YFM350, Hotrod 8605 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit YFM350, Hotrod 8605 Yamaha ATV
• Part number: 56-194.HR
• Brand: Hot Rods
• Premium Material: Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for superior strength.
• Advanced Design: Strategically placed side scalloping and vent slots reduce bearing race distortion at high RPMs.
• Double-Forged Rods: Improves grain flow and dimensional consistency for enhanced reliability.
• Shot-Peened and Double-Honed: Provides exceptional strength under heavy loads.
• Enhanced Lubrication: Double-drilled small ends supply additional lubrication and cooling for the wrist pin bearing, ideal for pistons with crowns close to the bearing.
• Silver-Coated Components: Thrust washers and crank pin bearings are coated for improved lubricity.

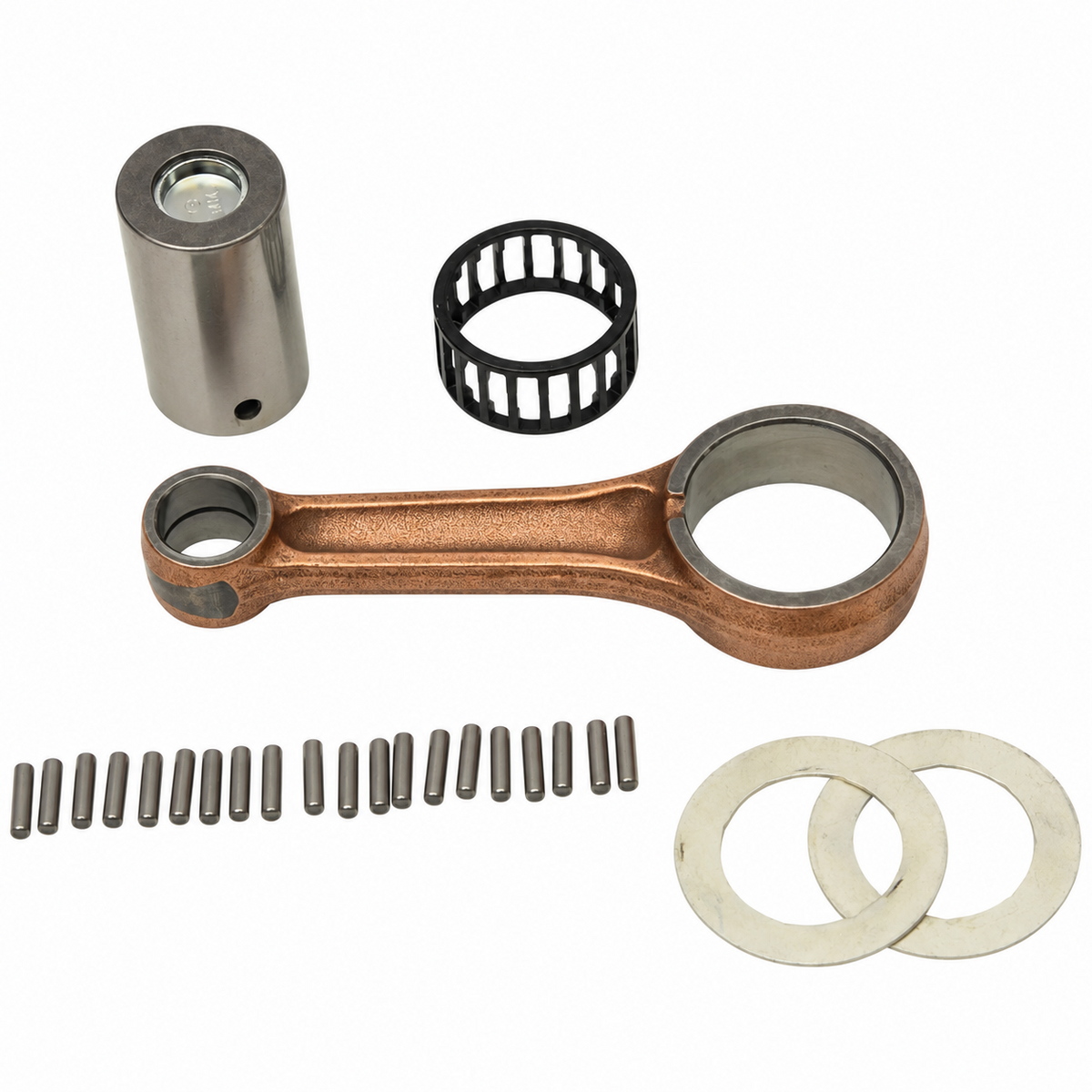

• Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing (mm):
• Dimensions: 33x41x19.7
• Big End Bore: 41.00 mm
• Center to Center: 112.50 mm
• Pin Diameter: 33.00 mm
• Pin Length: 57.80 mm
• Small End Bearing (mm):
• Bearing Type: None
• Small End Bore: 19.00 mm
• Washer Thickness: 1.00 mm
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFP U 350cc — 1988
• YAMAHA YFM WARRIOR 350cc — 1987–2004
• YAMAHA YFM BIG BEAR 350cc — 1999
• YAMAHA YFM WOLVERINE 350cc — 1995–2005
• YAMAHA YFM R RAPTOR 350cc — 2004–2013
• YAMAHA YFM BIG BEAR 350cc — 1987–1999
• YAMAHA YFM ER 350cc — 1987–1995
• YAMAHA YFM BIG BEAR 350cc — 1987–1997
• YAMAHA YFM 350cc — 1987–1995
• YAMAHA YFM BIG BEAR 350cc — 1996–1999
• YAMAHA YFM BIG BEAR 350cc — 1997–1999
• YAMAHA YFM WOLVERINE 350cc — 1999
• YAMAHA YFM WOLVERINE 350cc — 2004–2005
• YAMAHA YFM WOLVERINE 350cc — 1995–2003
• YAMAHA YFM BIG BEAR 350cc — 2004–2006

Match your exact make, model, year and specification before ordering.
