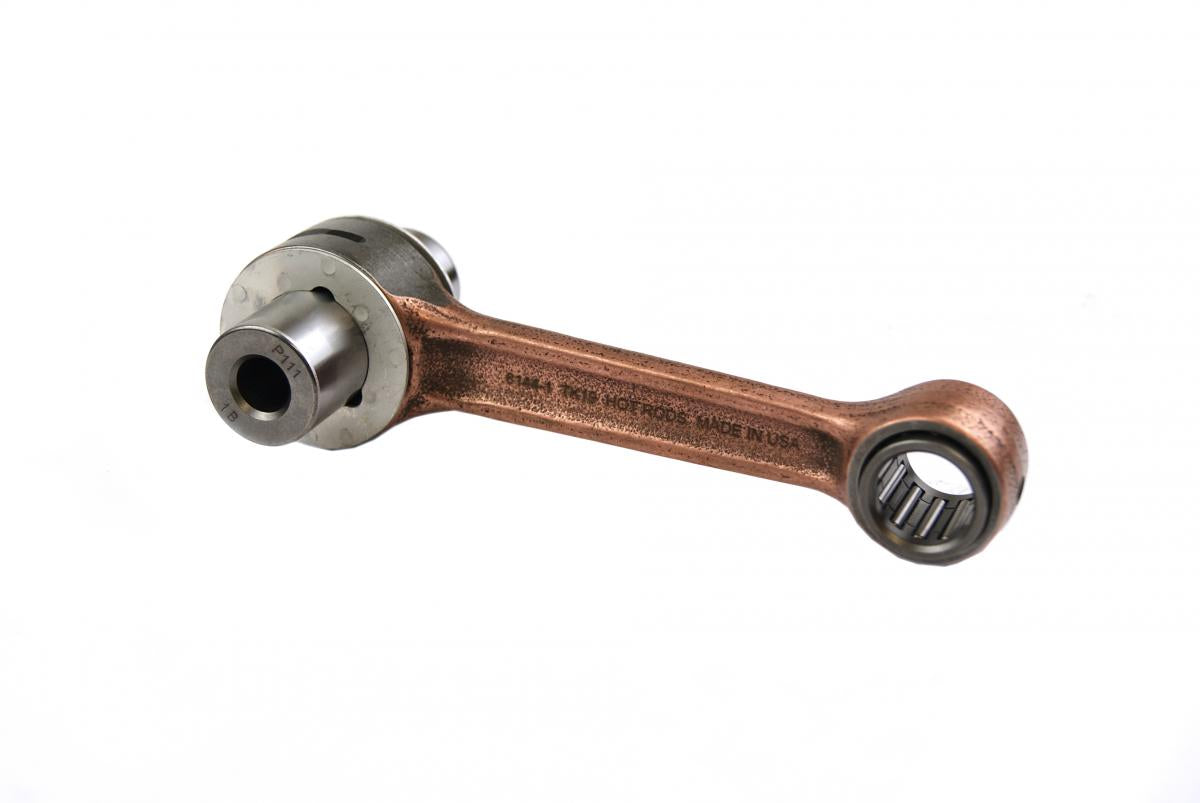

Hot Rods Connecting Rod 87-06 YFS200, Hotrod 8144 Yamaha ATV

Hot Rods Connecting Rod 87-06 YFS200, Hotrod 8144 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 87-06 YFS200, Hotrod 8144 Yamaha ATV
• Part number: 56-195.HR
• Brand: Hot Rods
• Premium Material: Manufactured from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for enhanced strength and durability.
• Advanced Design: Features side scalloping and vent slots to reduce high RPM bearing race distortion.
• Double-Forged Rods: Improves grain flow and dimensional consistency for superior reliability.
• Shot-Peened and Double-Honed: Enhances strength under heavy loads.
• Improved Lubrication: Double-drilled small ends provide additional lubrication and cooling for the wrist pin bearing, especially for pistons with crowns close to the bearing.
• Silver-Coated Components: Thrust washers and crank pin bearings are coated for increased lubricity.

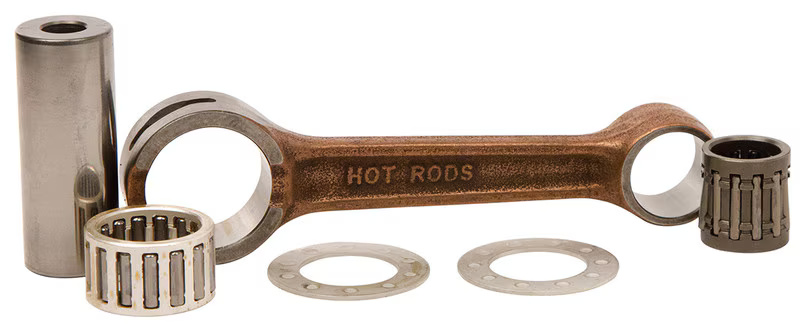

• Complete Kit: Includes connecting rod, crank pin, crank pin bearing, top-end bearing, needle cage bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing (mm):
• Dimensions: 22x29x17
• Big End Bore: 29.00 mm
• Big End Width: 17.00 mm
• Center to Center: 110.00 mm
• Cross-Reference OEM Part Numbers:
• Others: Vesrah VA-2009, Wossner P203, Wiseco WPR170, Psychic AT-97307

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFS BLASTER 200cc — 1988–2006

Match your exact make, model, year and specification before ordering.
