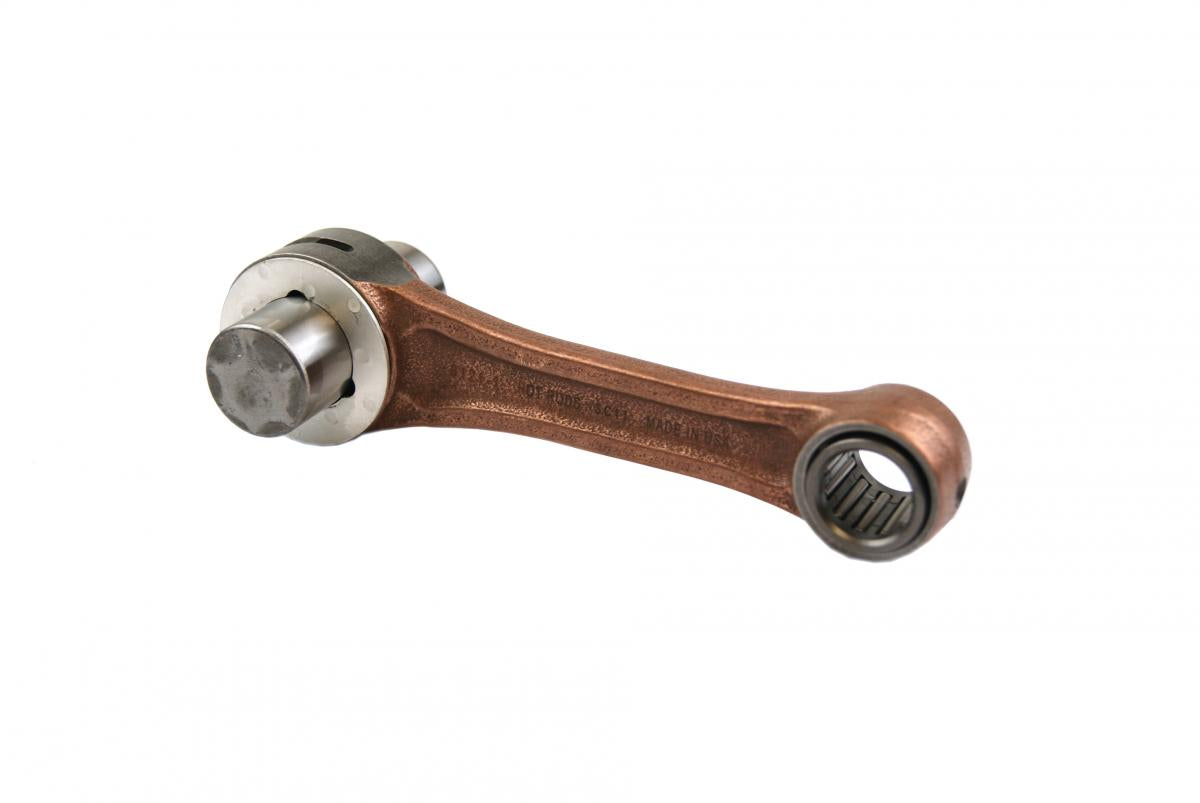

Hot Rods Connecting Rod 87-06 Banshee, Hotrod 8121 Yamaha ATV

Hot Rods Connecting Rod 87-06 Banshee, Hotrod 8121 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 87-06 Banshee, Hotrod 8121 Yamaha ATV
• Part number: 56-196.HR
• Brand: Hot Rods
• Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc.
• Side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged for consistent dimensional stability and improved grain flow.
• Shot-peened and double-honed for increased strength under heavy loads.
• Double-drilled small ends enhance lubrication and cooling of the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings for added lubricity.

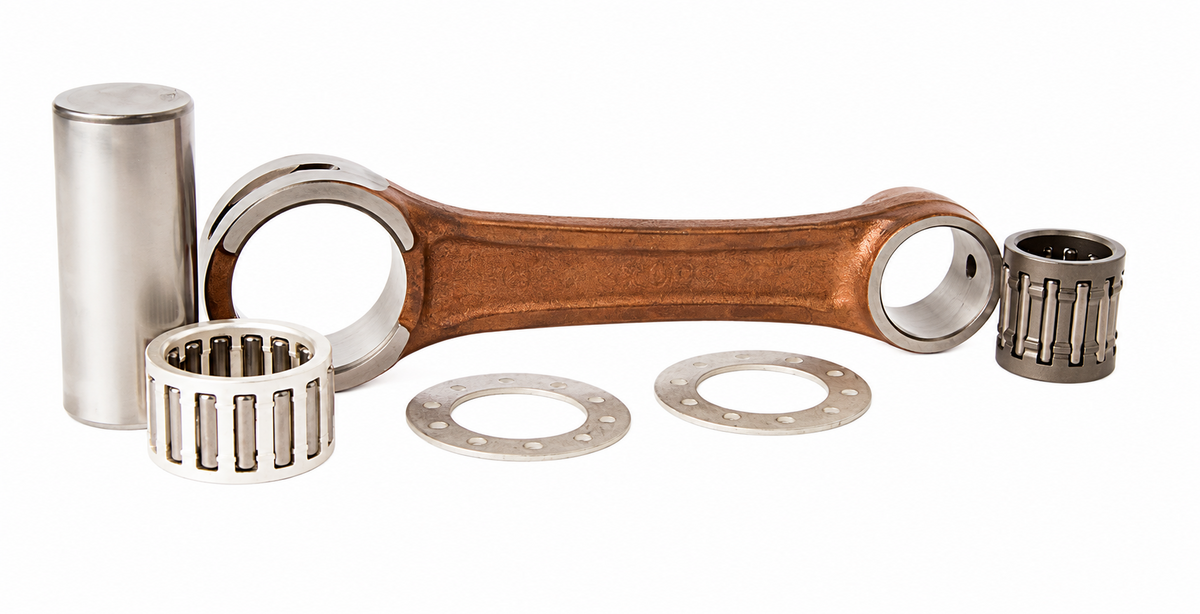

• Complete kit includes rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing (mm): 22x29x17
• Big End Bore (mm): 29.00
• Big End Width (mm): 16.98
• Center to Center (mm): 110.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 52.70
• Small End Bearing (mm): 16x21x22.5
• Small End Bore (mm): 21.00
• Small End Width (mm): 17.98
• Cross-Reference OEM Part Numbers:
• 56-196.HR

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFZ BANSHEE 350cc — 1987–2006
• YAMAHA YFZ BANSHEE 350cc — 1987–2007

Match your exact make, model, year and specification before ordering.
