Hot Rods Connecting Rod 02-08 CRF450R, Hot Rod 8617, CRF450X 02-08

Hot Rods Connecting Rod 02-08 CRF450R, Hot Rod 8617, CRF450X 02-08. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 02-08 CRF450R, Hot Rod 8617, CRF450X 02-08
• Part number: 56-205.HR
• Brand: Hot Rods

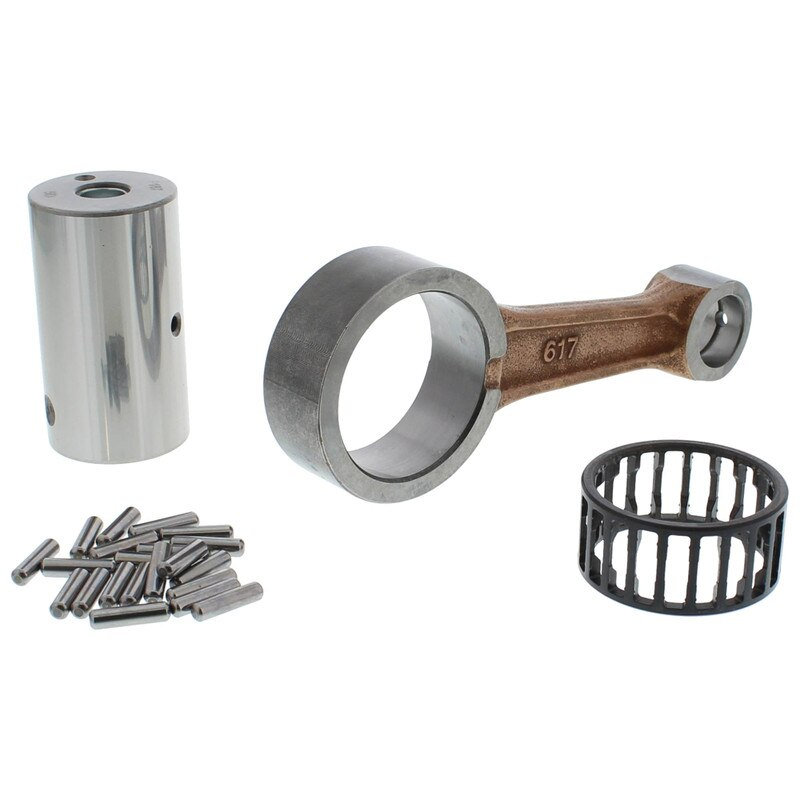

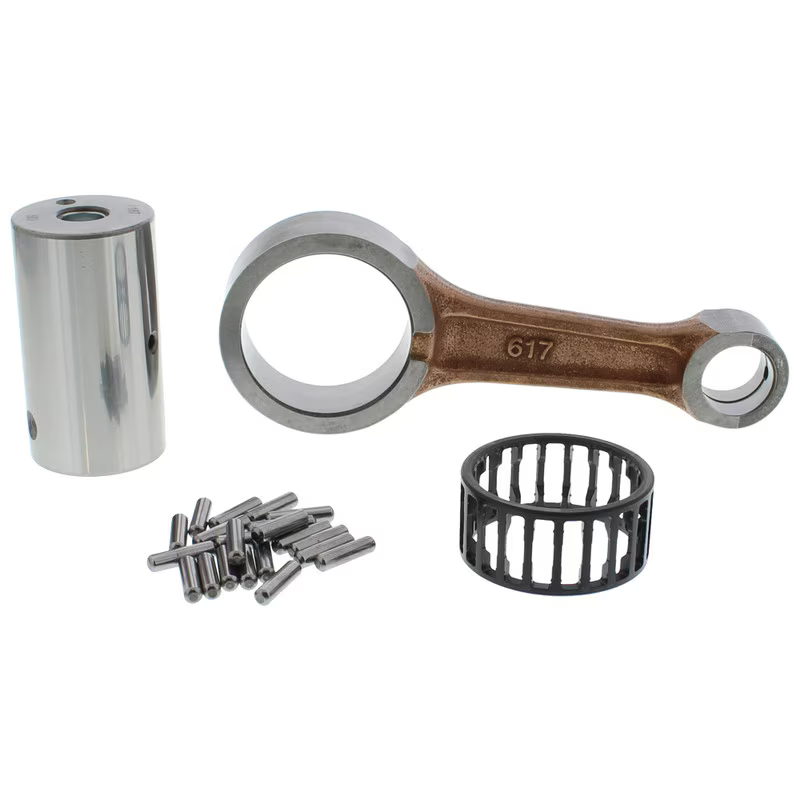

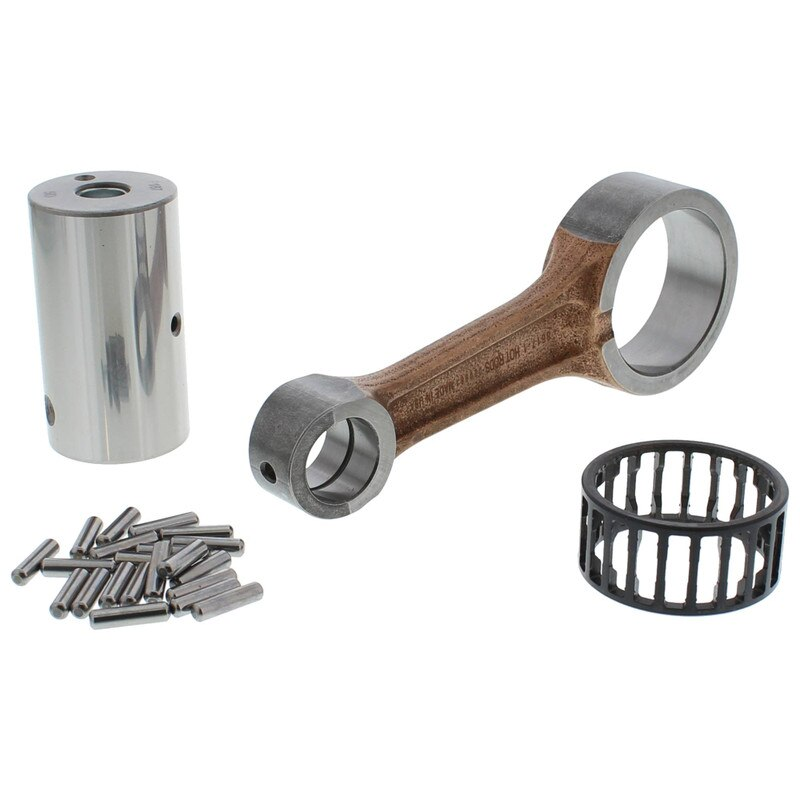

• Complete kit includes connecting rod, crank pin, crank pin bearing, top-end bearing, and thrust washers.
• Manufactured from hot-rolled ASTM 4115 steel, case-hardened to 58-62 Rc for superior strength.
• Advanced design with side scalloping and vent slots to reduce high-RPM bearing race distortion.
• Double-forged rods improve grain flow and dimensional consistency.
• Shot-peened and double-honed for enhanced durability under heavy loads.
• Double-drilled small ends ensure additional lubrication and cooling for wrist pin bearings.
• Silver-coated thrust washers and crank pin bearings for added lubricity.
• Technical Specifications:
• Big End Bearing: 34x42x20 mm
• Big End Bore: 42.00 mm
• Big End Width: 19.75 mm
• Center to Center: 105.50 mm
• Pin Diameter: 34.00 mm
• Pin Length: 60.80 mm
• Small End Bearing: Bushing
• Small End Bore: 19.00 mm
• Small End Width: 18.00 mm
• Washer Thickness: Not Used
• Cross-Reference OEM Part Numbers:
• Compatible Models:
• Motorcycles:
• ATVs:
• Part Number: 56-205.HR

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA CRF R 450cc — 2002–2008

Match your exact make, model, year and specification before ordering.
