Hot Rods Connecting Rod Kit YFM660R 01, Hotrods 8613 Pin 37 x 73.80, Only Fits 2001

Hot Rods Connecting Rod Kit YFM660R 01, Hotrods 8613 Pin 37 x 73.80, Only Fits 2001. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit YFM660R 01, Hotrods 8613 Pin 37 x 73.80, Only Fits 2001
• Part number: 56-206.HR
• Brand: Hot Rods
• Heavy-duty connecting rod made from certified 8620 AISI steel for exceptional strength.
• Big end features side scalloping and vent slots to reduce high-RPM bearing race distortion.

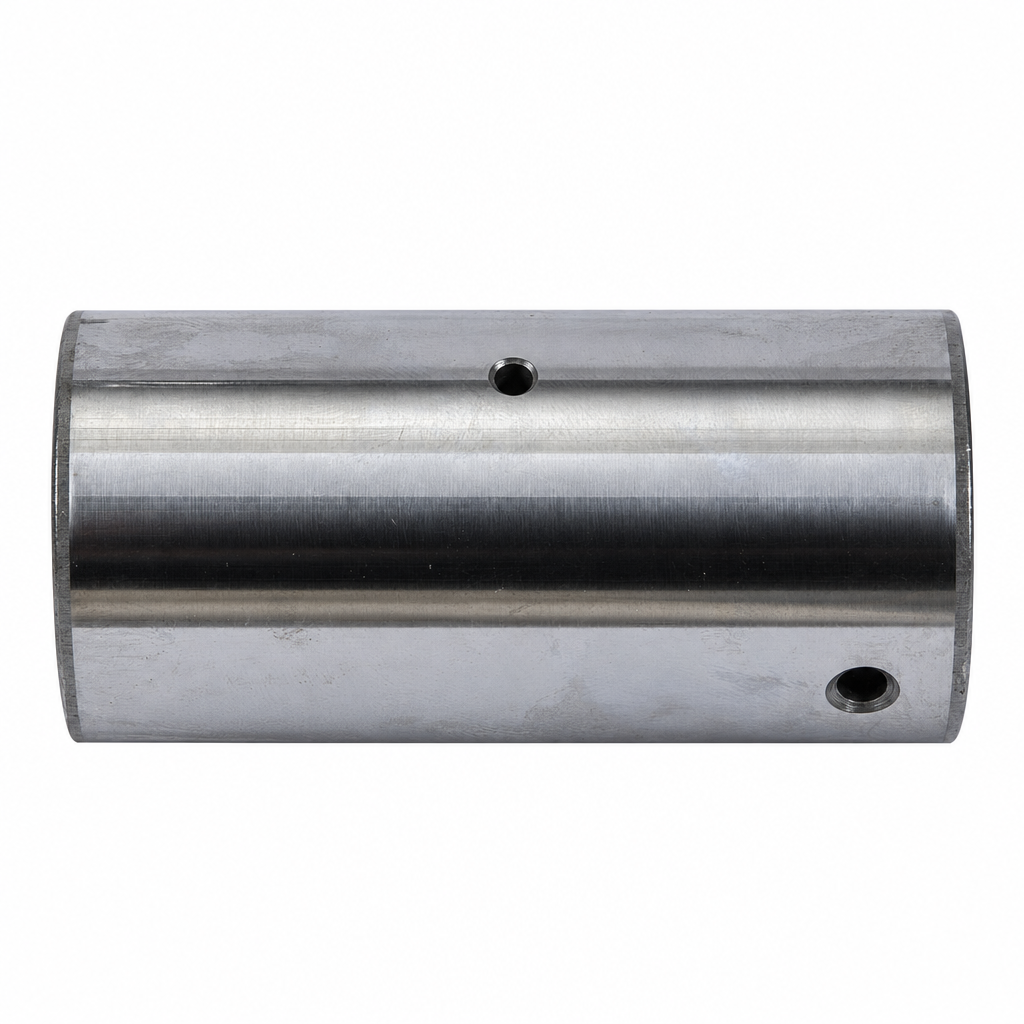

• Crankpins are hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc for durability.
• Caged needle roller bearing design ensures longevity at high RPMs.
• Bronze phosphor thrust washers with silver coating for enhanced lubricity.
• Complete rod assembly includes rod, crankpin, crankpin bearing, top-end bearing, and thrust washers.
• Fully compatible with Hot Rods and OE crankshafts.
• Made in the U.S.A.

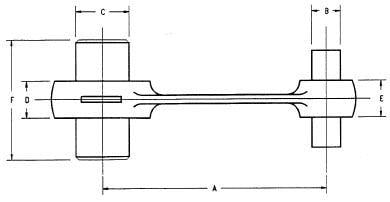

• Technical Specifications:
• Big End Bearing: 37x45x22 mm
• Big End Crank Pin: 37 mm diameter, 73.80 mm length
• Big End Bore: 45.00 mm
• Big End Width: 21.97 mm
• Center to Center: 136.50 mm
• Small End Bore: 22.00 mm
• Small End Width: 21.97 mm
• Washer Thickness: Not Used
• Cross-Reference OEM Part Number:
• Compatible Model:
• Part Number: 56-206.HR

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFM F GRIZZLY 660cc — 2002–2008
• YAMAHA YXR RHINO 660cc — 2004–2006
• YAMAHA YFM R RAPTOR 660cc — 2001

Match your exact make, model, year and specification before ordering.
