Namura Technologies Connecting Rod Kit YFM660R 02-, Bronco AT-09174-2

Namura Technologies Connecting Rod Kit YFM660R 02-, Bronco AT-09174-2. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit YFM660R 02-, Bronco AT-09174-2
• Part number: 56-207.DR
• Brand: Namura Technologies
• YFM660R RAPTOR 2002-2005,
• YFM660 GRIZZLY 2002-2008,
• YXR660 RHINO 2004-2007,
• Connecting Rod Rebuild kit BRONCO AT-09174-2
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Psychic Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

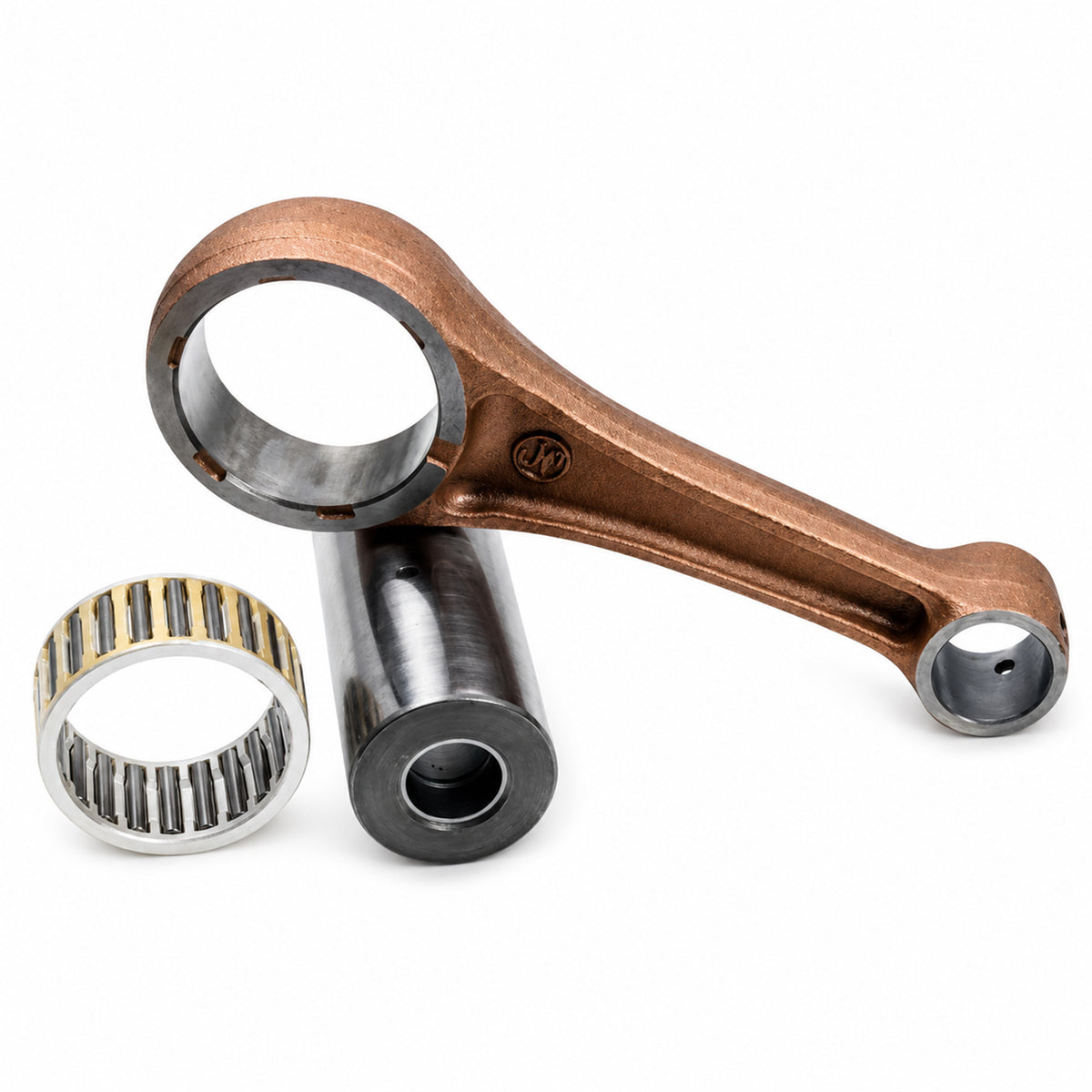

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 136.50
• Small End Bearing
• None
• Small End Bore Ø
• 22
• Small End Width
• Big End Bearing
• 37x45x21.80
• Big End Bore Ø
• 45
• Big End Width
• Big End Pin Ø
• 37
• Big End Pin Length
• 73.90
• Washer Thickness
• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 136.5, B = 22, C = 37, D = 22, E = 22, F = 73.90mm
• Big End Crank pin length 73.90mm
• Part No. 56-207.DR (www.fdyperformance.com)
• 5LP-11651-00-00,

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFM R RAPTOR 660cc — 2001–2005
• YAMAHA YXR RHINO 660cc — 2004–2007
• YAMAHA YFM F GRIZZLY 660cc — 2002–2008
• YAMAHA YFM GRIZZLY 660cc — 2002–2008
• YAMAHA YXR RHINO 660cc — 2004–2006
• YAMAHA YFM R RAPTOR 660cc — 2002–2005

Match your exact make, model, year and specification before ordering.
