Namura Technologies Connecting Rod 54.2 Pin DT125 DT175, Yamaha 3 Wheeler Tri-moto

Namura Technologies Connecting Rod 54.2 Pin DT125 DT175, Yamaha 3 Wheeler Tri-moto. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 54.2 Pin DT125 DT175, Yamaha 3 Wheeler Tri-moto
• Part number: 56-247.DR
• Brand: Namura Technologies
• DT125 1978-1981,
• DT125LC 1976,
• RD125LC,
• YT175, Tri Moto 1982 - 1983,
• DT175 1976-1981,
• DT175MX 1979-1981,
• DT125-LC water cooled,
• RT180A 1990-1998,
• Connecting CONROD rod rebuild kit.
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Namura Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 105
• Small End Bearing
• 16x20x20
• Small End Bore Ø
• 20
• Small End Width
• 18
• Big End Bearing
• 22x28x16
• Big End Bore Ø
• 28
• Big End Width
• 16
• Big End Pin Ø
• 22
• Big End Pin Length
• 54.20
• Washer Thickness
• 22x37x1

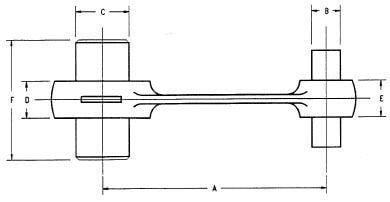

• Please see the image Key. A=105, B=16, C=22, E=16, D=16, F=54.30 all size mm.
• Specification:
• TOP/BOTTOM BEARING
• KV 16X20X19.6 W/NATURAL COATING,
• KT 22X28X15.6MM COPPER COATING Material: SCM415
• Part No. 56-247.DR (www.fdyperformance.com)
• VESRAH VA-2003, MX-09109, [25V-11651-00-00 + 3M5-11681-00-00 + 93310-422C8-00 + 90209-22248-00 + 93310-216E1-00] L23-41030, MX-09109 1V0-11651-00 4Y2-11651-00

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YT 175cc — 1982–1983
• YAMAHA DT LC 125cc — 1983–2008

Match your exact make, model, year and specification before ordering.
