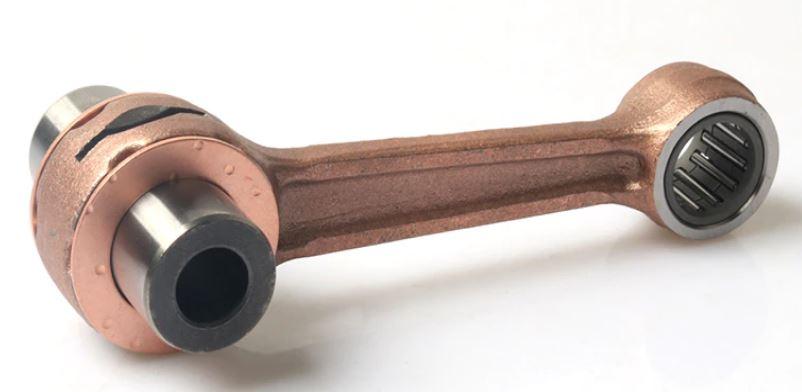

Connecting Rod Yamaha, 54.0 Pin DT125MX DT180

Connecting Rod Yamaha, 54.0 Pin DT125MX DT180. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Yamaha, 54.0 Pin DT125MX DT180
• Part number: 56-2471.AAA
• Yamaha Fitments:
• DT125MX
• DT180 95
• DT180Z 93 2TW
• RX125 / RXK / DT125 / DT175
• SIZE
• MM
• Centre 2 Centre
• 105
• Small End Bearing
• 16x20x19.60
• Small End Bore Ø
• 20
• Small End Width
• 16
• Big End Bearing
• 22x28x16
• Big End Bore Ø
• 28
• Big End Width
• Big End Pin Ø
• 22
• Big End Pin Length
• 54.00
• Washer Thickness
• 22x28x1
• Rod overall length, 138mm
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

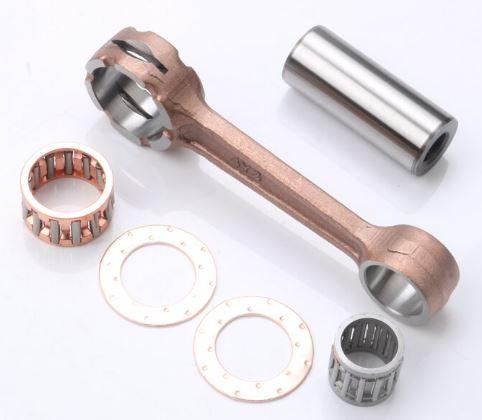

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Manufactured to exacting standards so the crankshaft can be rebuilt with total confidence.
• Meets or exceeds OEM quality.
• Direct oem replacement.
• (Distributed www.fdyperformance.com)
• Cross reference numbers.
• 2N4-11650-00 93310-422L0-00 93310-216E1-00 4Y2-11651-00 1V0-11651-00
