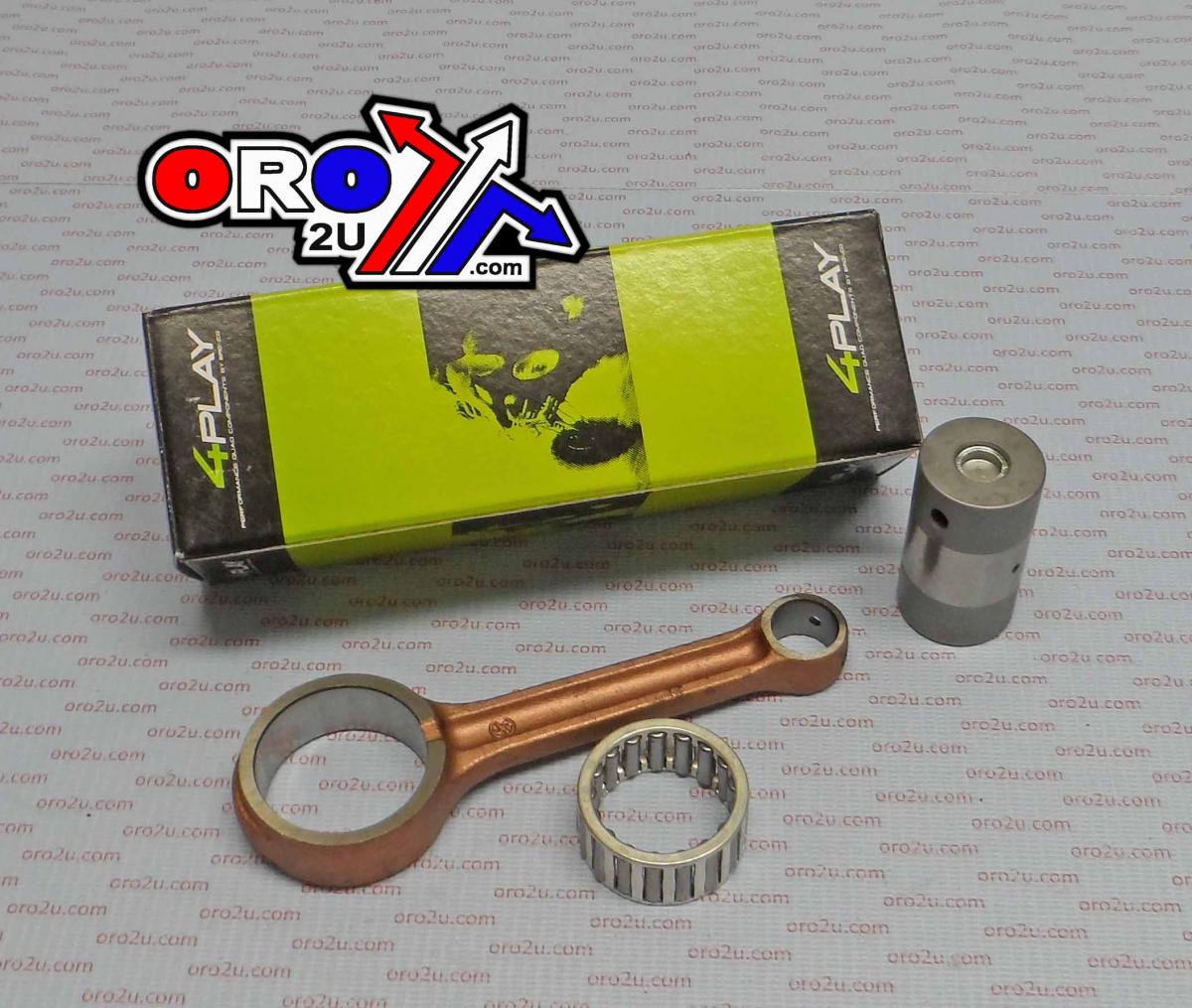

Connecting Rod LTF250 LT4WD, Bronco AT-09171 Conrod Kit

Connecting Rod LTF250 LT4WD, Bronco AT-09171 Conrod Kit. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod LTF250 LT4WD, Bronco AT-09171 Conrod Kit
• Part number: 56-251.DR
• Brand: Bronco
• CONNECTING CONROD ROD REBUILD KIT BRONCO AT-09171
• 2013 LT-F250 KINGQUAD,
• 1988-02 LT-F250 QUAD RUNNER,
• 2002-14 LT-F250 OZARK,
• 1999-02 LT-F250F QUAD RUNNER 4X4,
• 2004-09 LT-Z250 QUADSPORT,
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• BRONCO Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.
• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 115.50
• Small End Bearing
• None
• Small End Bore Ø
• 16
• Small End Width
• 14
• Big End Bearing
• 30x39x18
• Big End Bore Ø
• 39
• Big End Width
• 18
• Big End Pin Ø
• 30
• Big End Pin Length
• 53.00
• Washer Thickness
• Part No. 56-251.DR (www.fdyperformance.com)
• VA-3005,
• ROD, CONNECTING 12161-19B02, 12161-19B03
• PIN, CRANK MODEL X/Y 12210-22A02, 12210-22A03
• PIN, CRANK MODEL K1/K2 12210-22A03
• BEARING (30X39X18) 09263-30033-0B0

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI LT F QUADRUNNER 250cc — 1999–2002
• SUZUKI LT EF 250cc — 1985–1986
• SUZUKI LT F QUADRUNNER 250cc — 1988–2002
• SUZUKI LT F OZARK 250cc — 2002–2014
• SUZUKI LT F QUADRUNNER 250cc — 1988–2001
• SUZUKI LT F OZARK 250cc — 2002–2006
• SUZUKI LTZ 250cc — 2004–2009
• SUZUKI LT F 250cc — 2013
• SUZUKI LT 250cc — 1987–1998

Match your exact make, model, year and specification before ordering.
