Hot Rods Connecting Rod +5 Banshee, Hotrod 8158 Yamaha ATV

Hot Rods Connecting Rod +5 Banshee, Hotrod 8158 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod +5 Banshee, Hotrod 8158 Yamaha ATV
• Part number: 56-267.HR
• Brand: Hot Rods
• Made from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for superior strength.
• Side scalloping and vent slots reduce high-rpm bearing race distortion.
• Double-forged rods ensure grain flow and dimensional consistency.
• Shot-peened and double-honed for added strength under heavy loads.
• Small ends are double drilled for improved lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for enhanced lubricity.

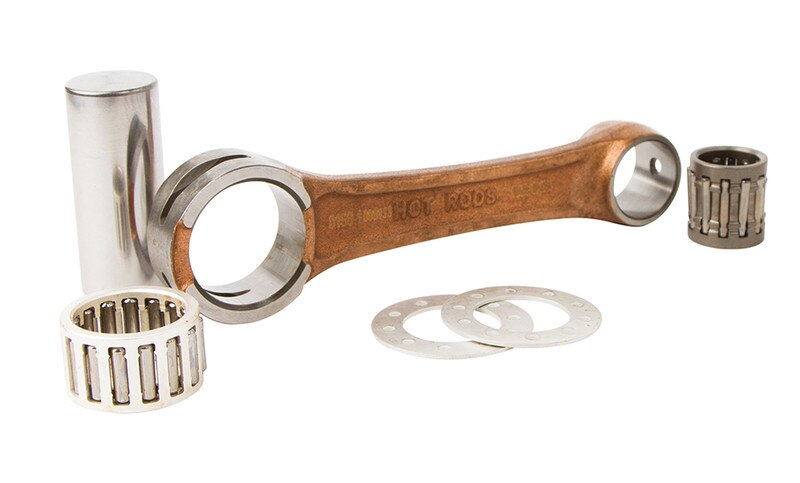

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.
• Technical Specifications:
• Big End Bore (mm): 29.00
• Big End Width (mm): N/A
• Center to Center (mm): 115.00
• Pin Diameter (mm): 22.00
• Pin Length (mm): 52.70
• Small End Bore (mm): 21.00
• Small End Width (mm): N/A
• Washer Thickness (mm): 1.00
• Cross-Reference OEM Part Numbers:
• Wiseco WPR178
• 29L-11651-00-00
• CR178

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFZ BANSHEE 350cc — 1987–2006
• YAMAHA YFZ BANSHEE 350cc — 1987–2007

Match your exact make, model, year and specification before ordering.
