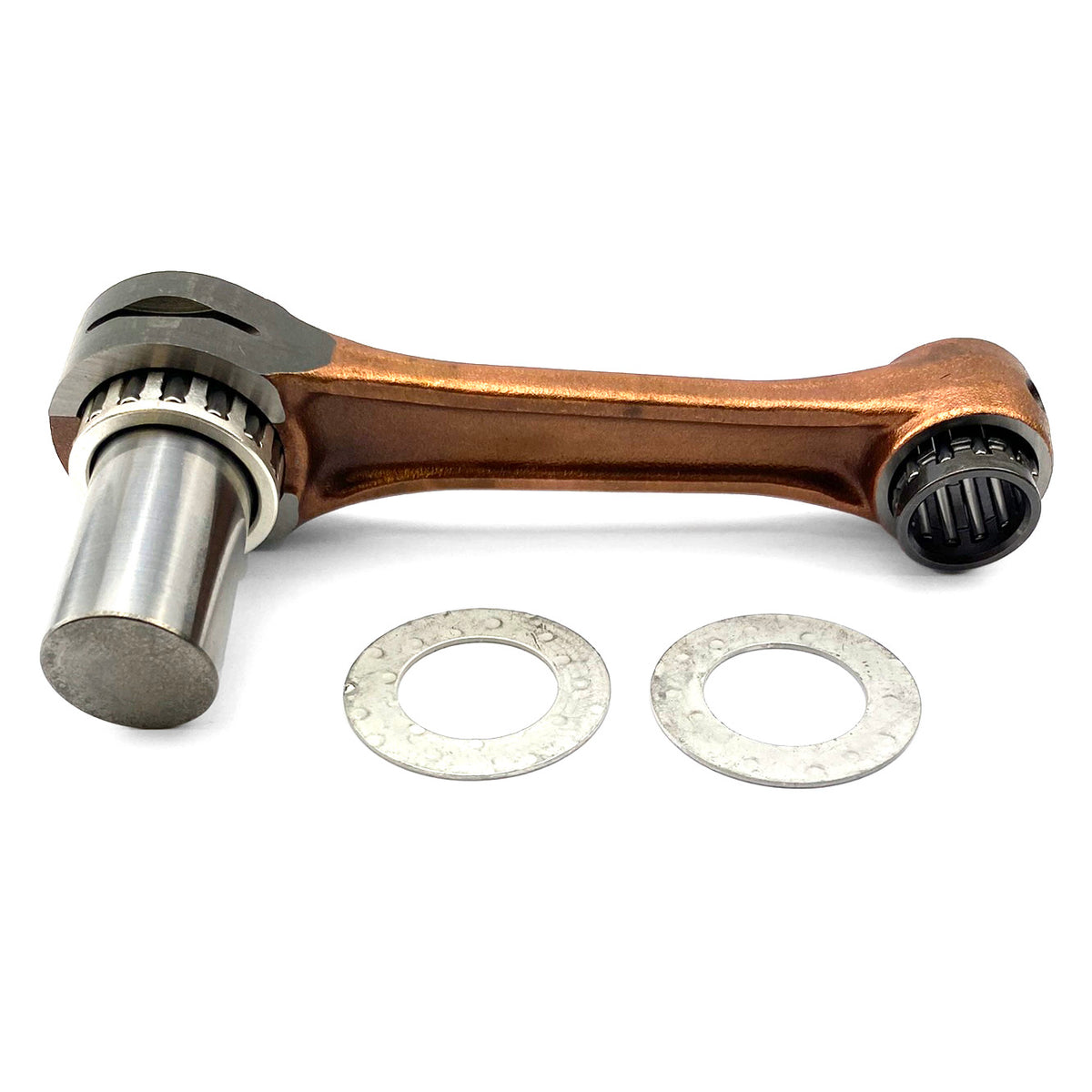

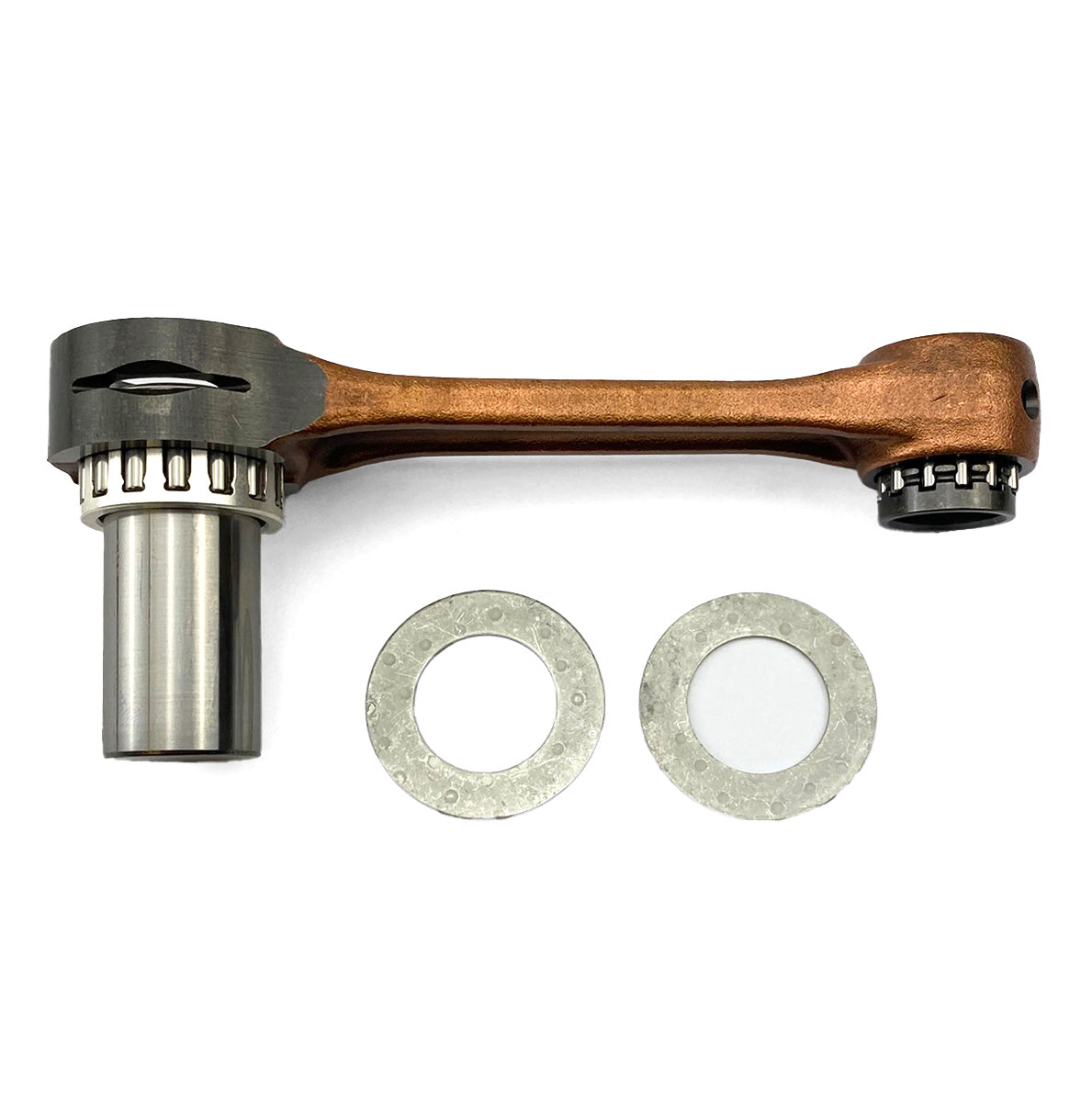

Namura Technologies Connecting Rod +5 RA-40000 AT-09134, 86-07 Banshee Long Rod +5mm

Namura Technologies Connecting Rod +5 RA-40000 AT-09134, 86-07 Banshee Long Rod +5mm. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod +5 RA-40000 AT-09134, 86-07 Banshee Long Rod +5mm
• Part number: 56-267.NM
• Brand: Namura Technologies
• This connecting rod rebuild kit is designed as a +5mm heavy-duty OE replacement for the Yamaha YFZ350 Banshee (Long Rod) models from 1987 to 2006. Manufactured from certified chrome alloy steel (SNCM220), it includes all necessary components for a complete rod assembly and is fully compatible with both aftermarket and OE crankshafts.
• Heavy-duty OE replacement connecting rod
• Certified chrome alloy steel (SNCM220) provides superior strength
• Crankpins manufactured from hot-rolled ASTM steel and case hardened
• Thrust washers made from bronze phosphor and silver coated
• Complete rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if needed)
• Fully compatible with aftermarket and OE crankshafts
• Centre to Centre: 115 mm
• Small End Bearing: 16x21x22.3 mm
• Small End Bore Diameter: 21 mm
• Small End Width: 17.90 mm
• Big End Bearing: 22x29x17 mm
• Big End Bore Diameter: 22 mm
• Big End Width: 17 mm
• Big End Pin Diameter: 29 mm
• Big End Pin Length: 52.70 mm
• Washer Thickness: 22.20x36.90x1.00 mm
• Cross-Reference OEM Part Numbers
• Yamaha: 29L-11651-00-00
• Hot Rods: 8158
• Vehicle Fitments
• Yamaha YFZ350 Banshee (Long Rod) 1987–2006

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
