Hot Rods Connecting Rod 06-09 LTR450, Hotrods 8648 Suzuki ATV

Hot Rods Connecting Rod 06-09 LTR450, Hotrods 8648 Suzuki ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 06-09 LTR450, Hotrods 8648 Suzuki ATV
• Part number: 56-274_HR
• Brand: Hot Rods
• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for exceptional strength and longevity.
• Side scalloping and vent slots minimize high-rpm bearing race distortion.
• Double-forged rods improve grain flow and maintain dimensional consistency.
• Shot-peened and double-honed for enhanced durability under heavy loads.
• Double-drilled small ends ensure superior lubrication and cooling for the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for increased lubricity.

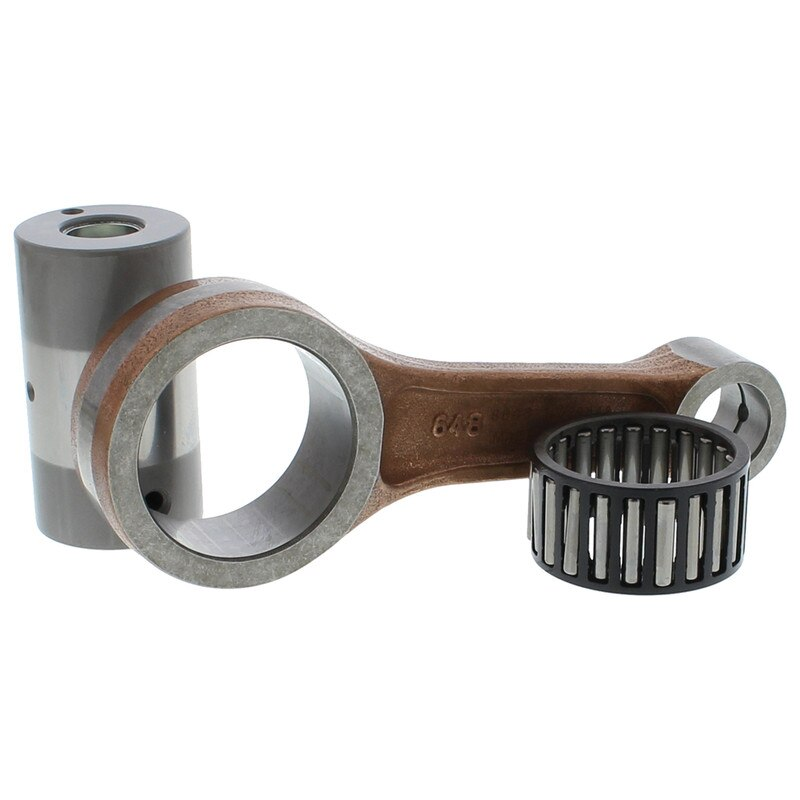

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing (mm): 34x42x21.6
• Big End Bore (mm): 42.00
• Big End Width (mm): 21.75
• Center to Center (mm): 107.00
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.80
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 19.00
• Cross-Reference OEM Part Numbers:
• 12160-45G10
• 12161-45G00

Vehicle fitment

Applications listed in the supplier fitment data:

• SUZUKI LT QUADRACER R 450cc — 2006–2009
• SUZUKI LTR QUADRACER 450cc — 2006–2009

Match your exact make, model, year and specification before ordering.
