Hot Rods Connecting Rod 06-13 YFZ450, Hotrods 8641 Yamaha ATV

Hot Rods Connecting Rod 06-13 YFZ450, Hotrods 8641 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 06-13 YFZ450, Hotrods 8641 Yamaha ATV
• Part number: 56-275.HR
• Brand: Hot Rods
• Constructed from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for maximum strength and wear resistance.
• Strategically placed side scalloping and vent slots minimize distortion during high-rpm operation.
• Double-forged rods improve grain flow and dimensional consistency.
• Shot-peened and double-honed for enhanced durability under heavy loads.
• Small ends are double-drilled for superior lubrication and cooling of the wrist pin bearing.
• Thrust washers and crank pin bearings are silver-coated for added lubricity.

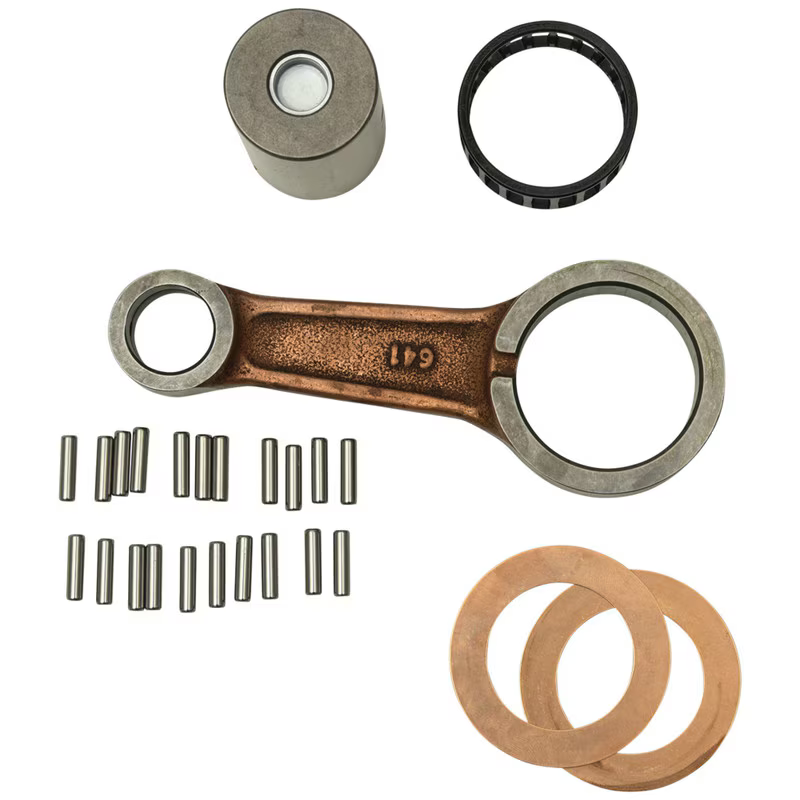

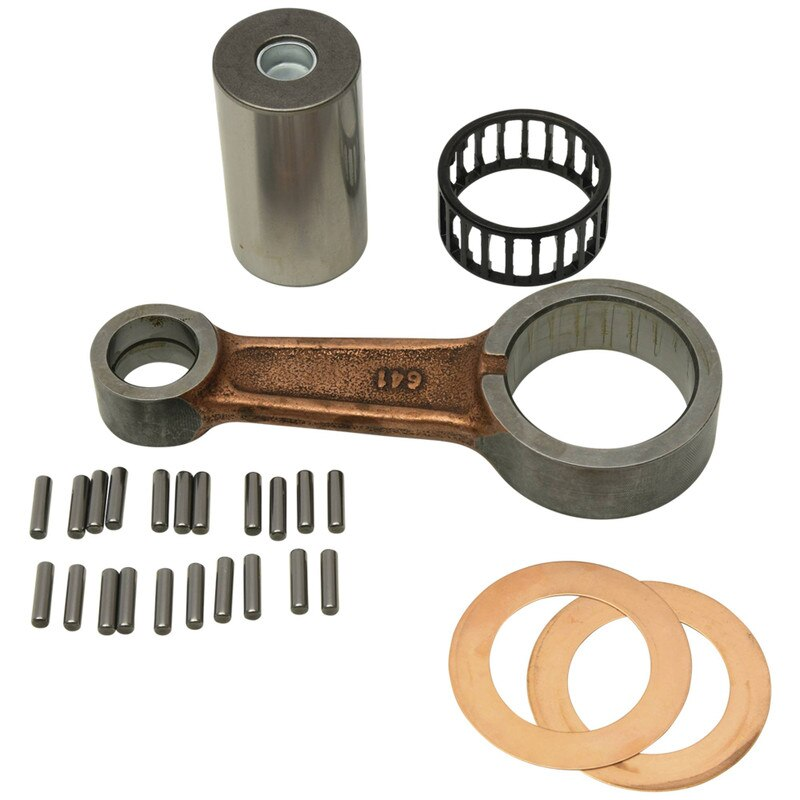

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.
• Technical Specifications:
• Big End Bore (mm): 42.00
• Big End Width (mm): N/A
• Center to Center (mm): 101.50
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.80
• Small End Bore (mm): 20.00
• Small End Width (mm): N/A
• Cross-Reference OEM Part Numbers:
• 5D3-11651-00-00
• 5TG-11651-10-00

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFZ 450cc — 2012–2013
• YAMAHA YFZ 450cc — 2006–2009

Match your exact make, model, year and specification before ordering.
