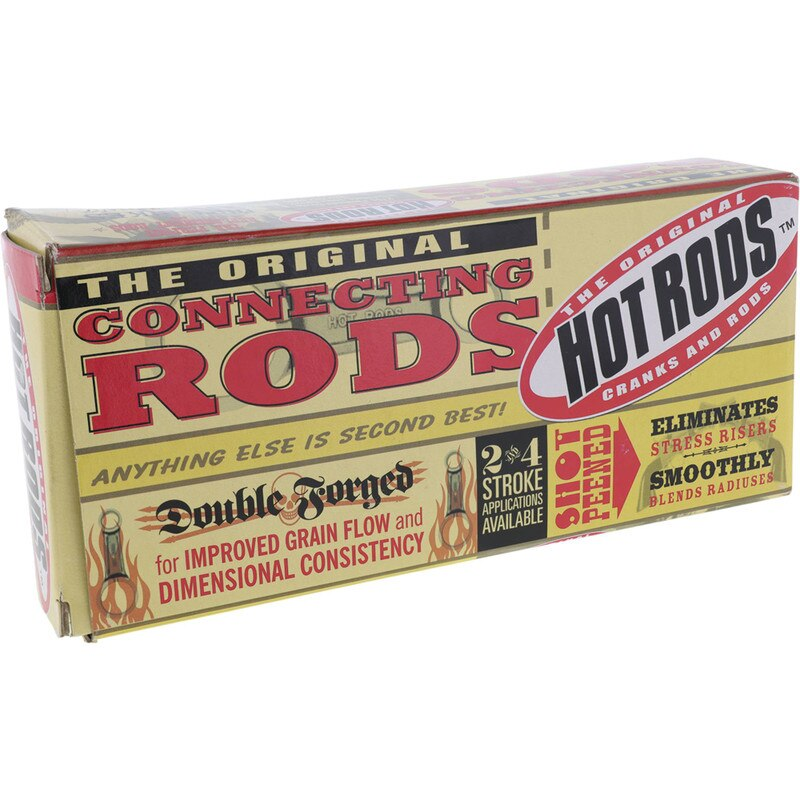

Hot Rods Connecting Rod 06-14 YFM700, Hotrod 8651 Yamaha ATV

Hot Rods Connecting Rod 06-14 YFM700, Hotrod 8651 Yamaha ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 06-14 YFM700, Hotrod 8651 Yamaha ATV
• Part number: 56-276.HR
• Brand: Hot Rods
• Made from certified 8620 AISI steel for exceptional strength and durability.
• Big end features side scalloping and vent slots to reduce high-rpm bearing race distortion.
• Crankpins are crafted from hot-rolled ASTM 4115 steel and case-hardened to 58-62 Rc.
• Utilizes advanced caged needle roller bearing designs for longevity at high rpm.
• Thrust washers are bronze phosphor and silver-coated for enhanced lubricity.
• Complete kit includes connecting rod, crankpin, crankpin bearing, top end bearing, and thrust washers.
• Compatible with both Hot Rods and OE crankshafts.
• Technical Specifications:
• Big End Bearing (mm): 40x50x21.73
• Big End Bore (mm): 50.00
• Big End Width (mm): 21.95
• Center to Center (mm): 135.00
• Pin Diameter (mm): 34.00
• Pin Length (mm): 63.60
• Cross-Reference OEM Part Numbers:
• ProX: 03.2706

Vehicle fitment

Applications listed in the supplier fitment data:

• YAMAHA YFM R RAPTOR 700cc — 2006–2014
• YAMAHA YXR RHINO 700cc — 2008–2013
• YAMAHA YFM F GRIZZLY 700cc — 2007–2013
• YAMAHA YXR RHINO 700cc — 2006–2013
• YAMAHA YFM R RAPTOR 700cc — 2010
• YAMAHA YFM R RAPTOR 700cc — 2011–2014
• YAMAHA YFM R RAPTOR 700cc — 2006–2009
• YAMAHA YFM F GRIZZLY 700cc — 2006–2013

Match your exact make, model, year and specification before ordering.
