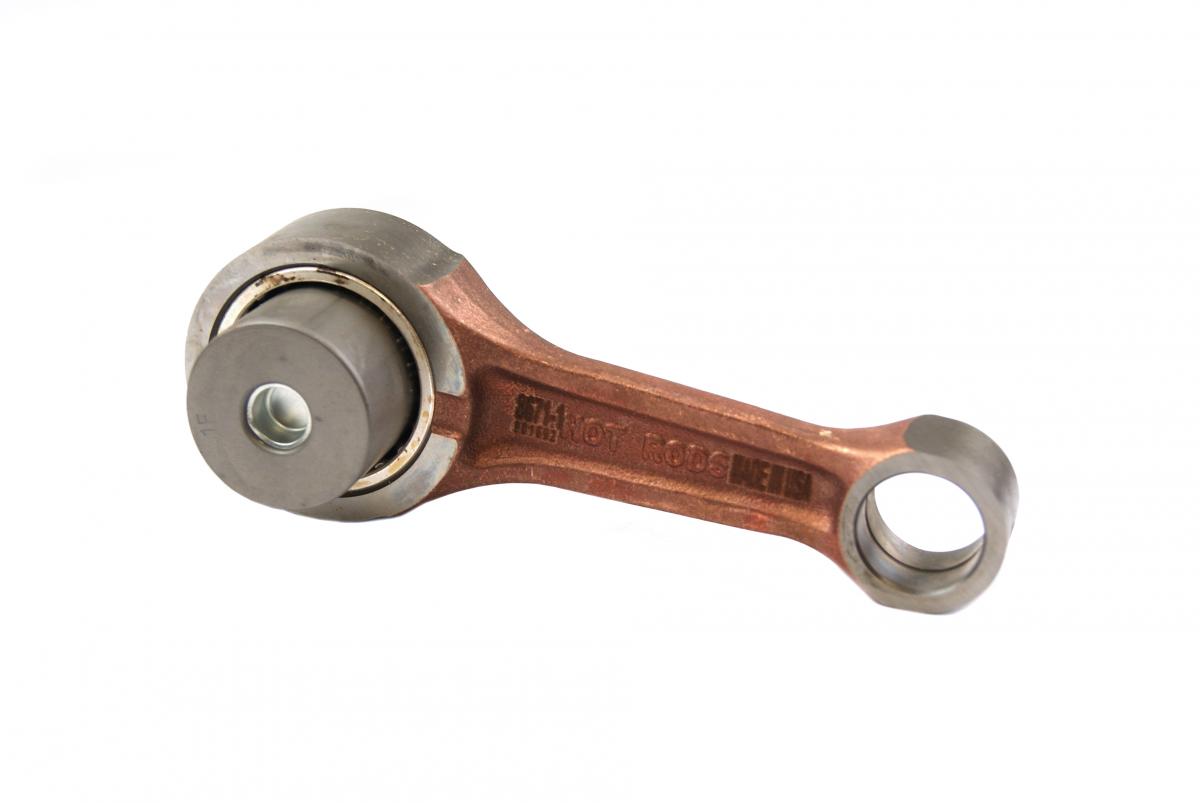

Connecting Rod 08-14 KFX450, Hot Rods 8671 Kawasaki ATV

Connecting Rod 08-14 KFX450, Hot Rods 8671 Kawasaki ATV. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod 08-14 KFX450, Hot Rods 8671 Kawasaki ATV
• Part number: 56-277.HR
• Brand: Hot Rods
• Made from hot-rolled ASTM 4115 and case-hardened to 58-62 Rc for enhanced durability.
• Side scalloping and vent slots in the big end reduce high-rpm bearing race distortion.
• Double-forged rods ensure consistent grain flow and dimensional accuracy.
• Shot-peened and double-honed for added strength under heavy loads.
• Double-drilled small ends provide superior lubrication and cooling to the wrist pin bearing.
• Silver-coated thrust washers and crank pin bearings enhance lubricity.

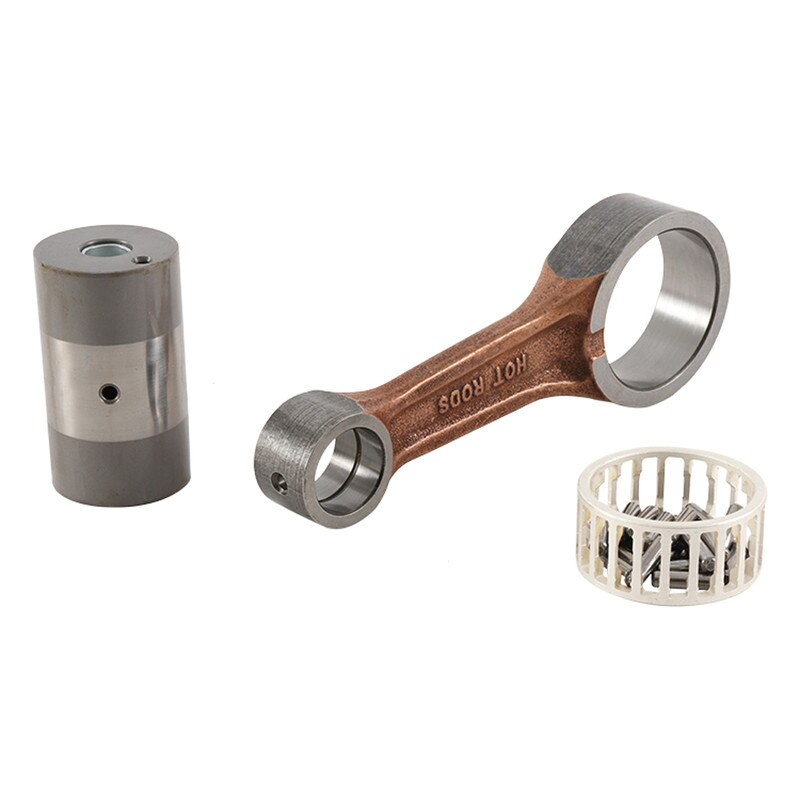

• Complete kit includes rod, crank pin, crank pin bearing, top end bearing, and thrust washers.
• Technical Specifications:
• Big End Bearing (mm): 34x42x19.65
• Big End Bore (mm): 42.02
• Big End Width (mm): 20.00
• Center to Center (mm): 107.00
• Pin Diameter (mm): 34.00
• Pin Length (mm): 60.00
• Small End Bearing (mm): Bushing
• Small End Bore (mm): 21.01
• Cross-Reference OEM Part Numbers:

Vehicle fitment

Applications listed in the supplier fitment data:

• KAWASAKI KFX R 450cc — 2008–2014

Match your exact make, model, year and specification before ordering.
