Connecting Rod Kit Maico 490 81-82, Psychic RX-12004

Connecting Rod Kit Maico 490 81-82, Psychic RX-12004. Find the product specifications and compatibility information below.

Product details

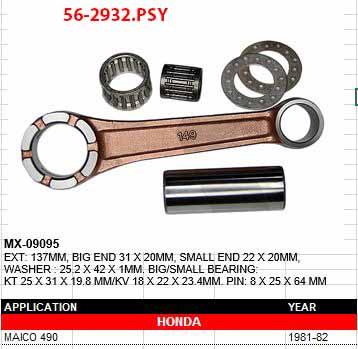

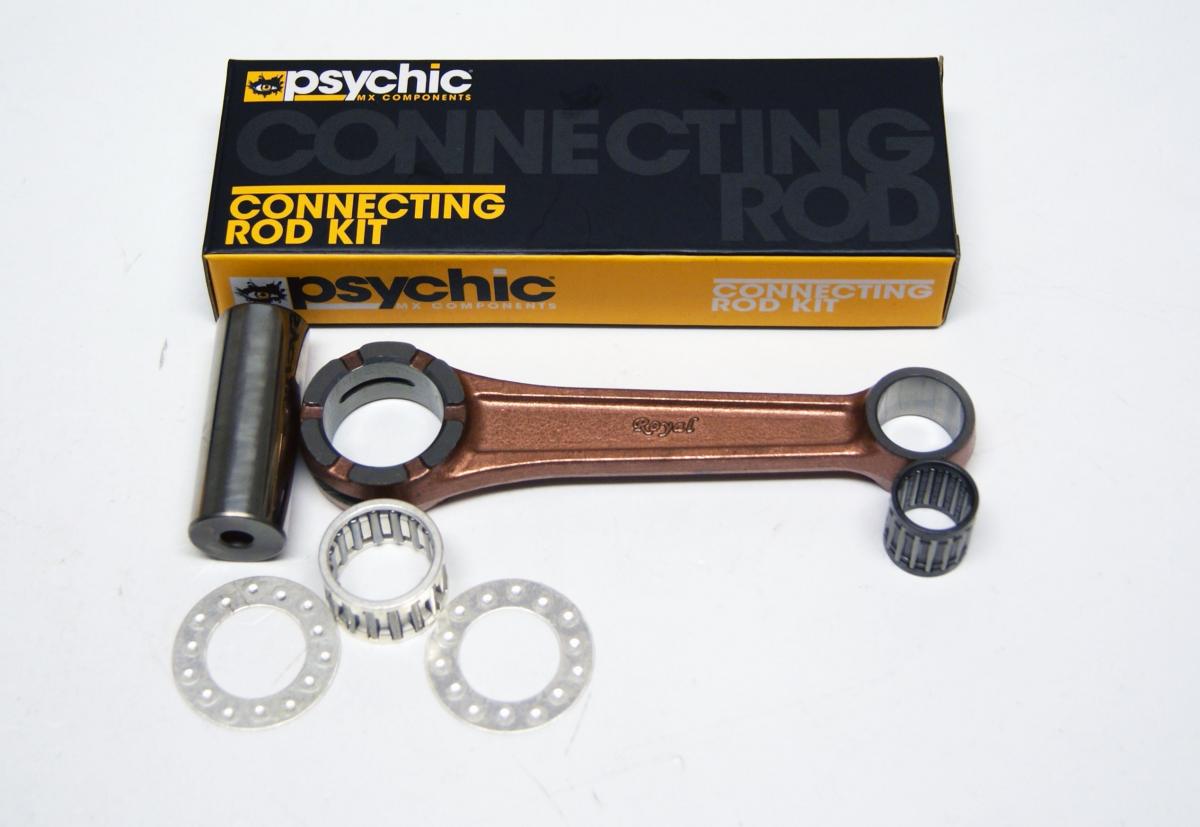

• Product: Connecting Rod Kit Maico 490 81-82, Psychic RX-12004
• Part number: 56-2932.PSY
• Brand: Psychic
• This connecting rod rebuild kit is designed for the 1981–1982 MAICO 490 models and includes all essential components for a complete rod replacement. Engineered for durability, it features heavy-duty materials and precise manufacturing standards to ensure performance and compatibility with both OEM and aftermarket crankshafts.
• Heavy-duty OE replacement connecting rod
• Manufactured from certified chrome alloy steel (SNCM220) for superior strength
• Crankpins made from hot-rolled ASTM steel and case hardened
• Equipped with caged needle roller bearing design for high RPM longevity
• Bronze phosphor thrust washers with silver coating
• Complete rod assembly includes rod, crankpin, crankpin bearing, top end bearing, and thrust washers (if needed)
• Fully compatible with aftermarket and OEM crankshafts

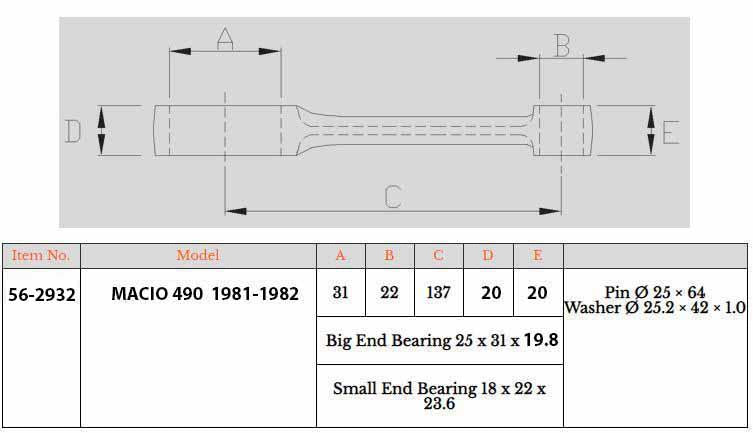

• Centre-to-centre length: 137 mm
• Small end bearing: 18x22x23.5 mm
• Small end bore diameter: 22 mm
• Small end width: 20 mm
• Big end bearing: 25x31x19.8 mm
• Big end bore diameter: 31 mm
• Big end width: 20 mm
• Big end pin diameter: 25 mm
• Big end pin length: 64 mm
• Washer dimensions: 25x42x1 mm
• Cross-Reference OEM Part Numbers
• 03.1553
• Vehicle Fitments
• MAICO 490 (1981–1982)

Compatibility

No separate vehicle-fitment table record was supplied for this part. Check any application details, sizes and specifications above before ordering.
