Factory Image Racing Connecting Rod Kit XL500, Honda 13201-429-300

Factory Image Racing Connecting Rod Kit XL500, Honda 13201-429-300. Find the product specifications and compatibility information below.

Product details

• Product: Connecting Rod Kit XL500, Honda 13201-429-300
• Part number: 56-2939
• Brand: Factory Image Racing
• CONNECTING CONROD ROD REBUILD KIT
• XR500S / XL500 1979-1982,
• Heavy-duty OE replacement connecting rods.
• Certified Chorme alloy steel provides superior strength.
• Crankpins are manufactured from hot-rolled ASTM steel and case hardened.
• FDY Performance Rods uses the latest in caged needle roller bearing designs for high rpm longevity.
• Thrust washers are manufactured from bronze phosphor and are silver coated.

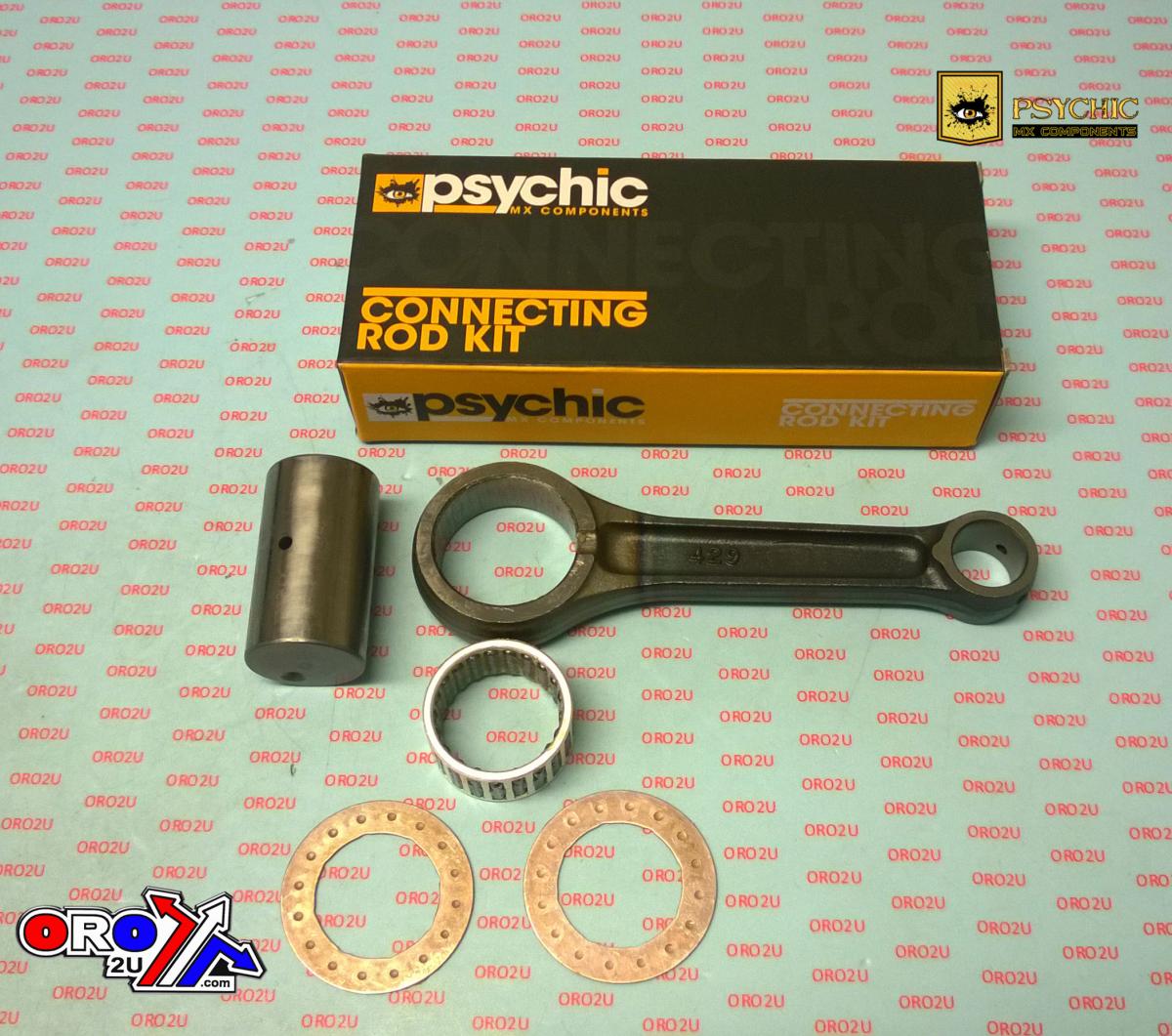

• Rod assembly sold complete with rod, crankpin, crankpin bearing, top end bearing and thrust washers if need.
• Fully Compatible with after market and OE crankshafts.
• Material SNCM220,
• SIZE
• MM
• Centre 2 Centre
• 141
• Small End Bearing
• None
• Small End Bore Ø
• 21
• Small End Width
• 20
• Big End Bearing
• 34x42x19.8
• Big End Bore Ø
• 42
• Big End Width
• Big End Pin Ø
• 34
• Big End Pin Length
• 60
• Washer Thickness
• 34x53x1
• CONNECTING ROD SIZE PLEASE SEE DRAWING SIZE mm. A = 141, B = 21, C = 34, D = 20, E = 20, F = 60
• Meets or exceeds OEM quality.
• Direct oem replacement.
• All products are factory tested for 100% reliability at point of sale.
• Designed to handle increased power loads.
• Please check the image before ordering to avoid mistakes.
• (Distributed www.fdyperformance.com)
• Part No. 56-2939 (Distributed by www.fdyperformance.com)
• RH-1029, MC-09743, MX-09095 , PROX 03.1553, 13201-429-300, RH-1029, 13201-429-310,

Vehicle fitment

Applications listed in the supplier fitment data:

• HONDA XL 500cc — 1979–1982
• HONDA XR 500cc — 1979–1982

Match your exact make, model, year and specification before ordering.
